Quick Start Guide
CM-HDBT-2OUT-1ETH
HDBaseT output module designed for the CORIOmaster
and CORIOmatrix products.
The HDBaseT module allows for transmission of
uncompressed, HDMI quality, video, audio and LAN up to
100m, with good quality cabling.

Installation

Rack Firmware

The rack firmware version should be at least M150.
The PC control software (Silverlight) should be version 1.5.4 or greater.

Module

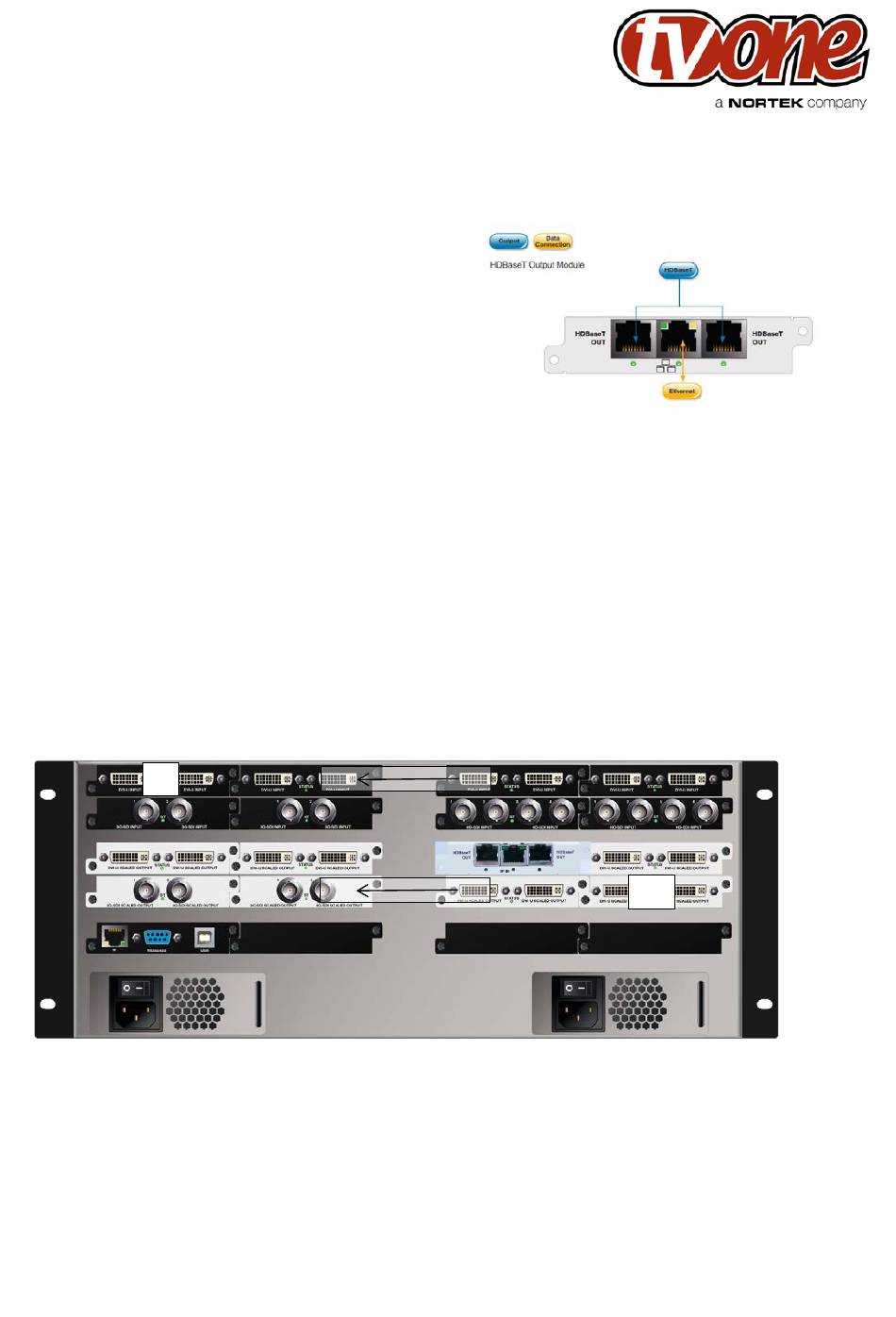

The host chassis (matrix or master) should be powered down. The HDBaseT modules can be fitted in
any of the output module positions, but the slots should be populated starting from the highest (16)
working towards the lowest (from right to left). PLEASE OBSERVE ANTI-STATIC HANDLING
PRECAUTIONS. Finally, make sure the module is secured with the screws provided.
1
The frame can now be powered-up and should register the new module configuration automatically.
HDBase T QSG 19/04/2013 V3.0
1
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tvone CM-HDBT-2OUT-1ETH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nortek tvone CM-HDBT-2OUT-1ETH

Summary of Contents for Nortek tvone CM-HDBT-2OUT-1ETH

  • Page 1 Quick Start Guide CM-HDBT-2OUT-1ETH HDBaseT output module designed for the CORIOmaster and CORIOmatrix products. The HDBaseT module allows for transmission of uncompressed, HDMI quality, video, audio and LAN up to 100m, with good quality cabling. Installation Rack Firmware The rack firmware version should be at least M150. The PC control software (Silverlight) should be version 1.5.4 or greater.
  • Page 2 Quick Start Guide Configuration The HDBaseT outputs can be configured via the PC control software or a terminal emulator connected to the RS232 or Ethernet ports on the unit. The interface supports all the principal HDMI resolutions and frame rates, as well as embedded audio and HDCP. Example of PC Control screen shown here Connection The card has two independent HDBaseT outputs and a single LAN input, supporting 100BaseT.
