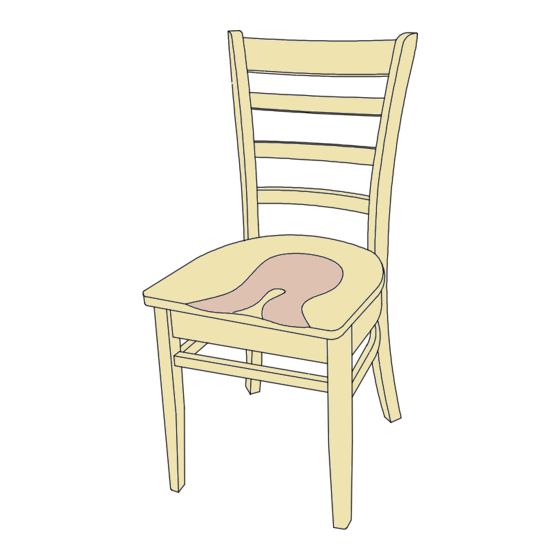

- Page 1 ASSEMBLY INSTRUCTIONS : EMILY SIDE CHAIR RTA UNFIN Description : C-617 Item No. ITEM : C-617 Printed in Vietnam ISSUED OCT 07, 2014 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read and follow the assembly instructions carefully. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
- Page 3 HARDWARE LIST When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Short bolt Long bolt ( M6 x 35mm) (M6 x 60mm) Screw Lock Washer (M4 x 35mm)
- Page 4 STEP 2 Attach Front Legs (D) to the seat frame (B) with bolts (2), and washers (4) and (5), as shown below. Tighten with Allen Key (6). Place side stretcher (E) and front stretcher (F) between front legs, attach with screws (3) as shown below.
