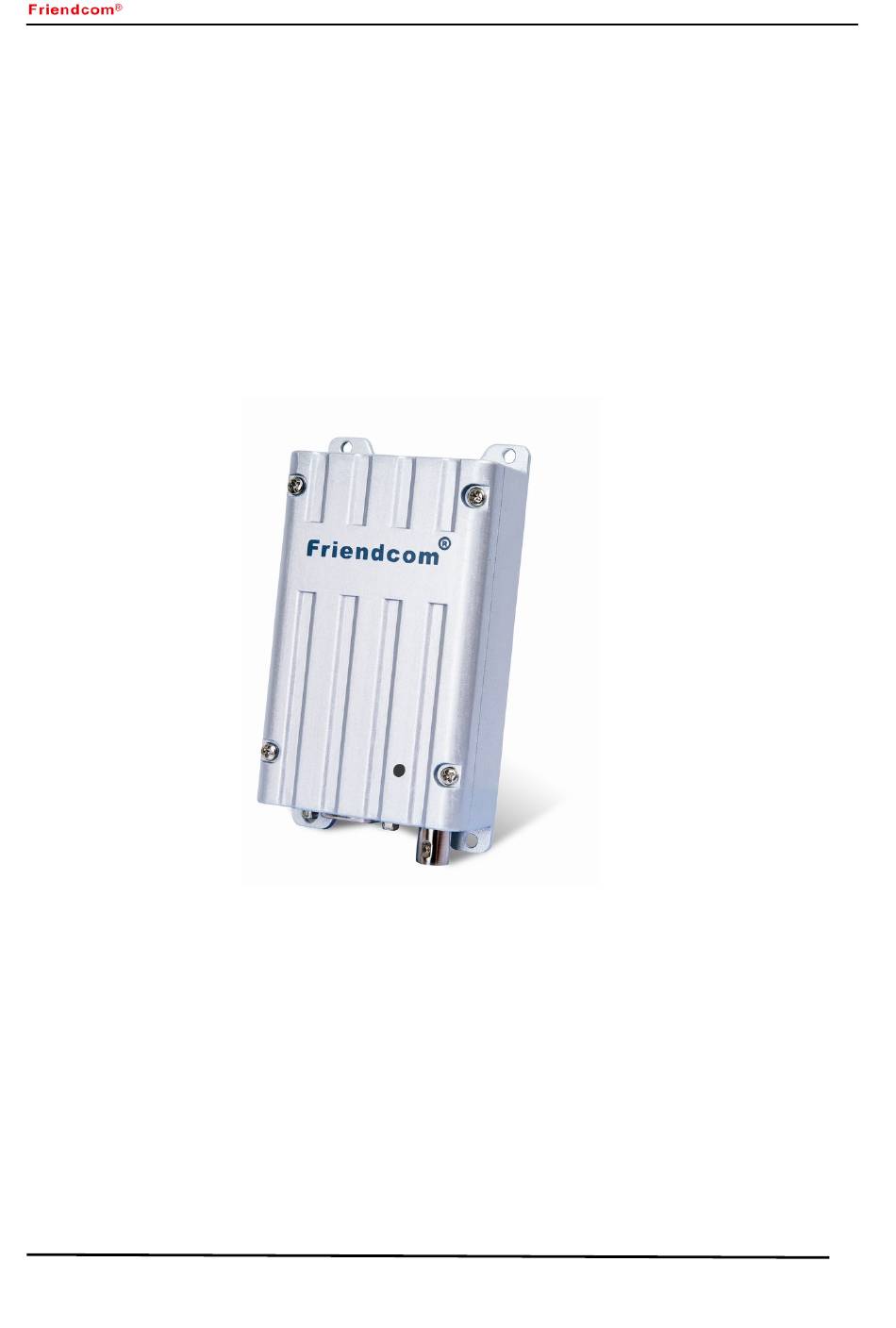

- Page 1 Shenzhen Friendcom Technology Development Co., Ltd. FC-302V Radio User Manual Address: 6/F,17 Building, Guangqian Industrial Park, Longzhu Road, Xili Town, Nanshan Shenzhen, China Tel: +86-755-86026600 +86-755-23230518 Fax: +86-755-86026300 E-mail: support@friendcom.com Website: http://www.friendcom.cn Shenzhen Friendcom Technology Development Co., Ltd.
-
Page 2: Table Of Contents
Content 1 Product Description ............................3 2 Technical Specifications ........................... 4 3 Interface of the Radio ............................5 3.1 Pin Definition ............................6 4 Application Instruction............................7 4.1 Hardware Installation ..........................7 4.2 Operation Instruction ..........................8 5 Maintenance and Repair ..........................16 5.1 Dimensions ............................ -
Page 3: Product Description
Shenzhen Friendcom Technology Development Co., Ltd. 1 Product Description FC-302V is a synthesized 5-watt FM transceiver module, which is designed for data transportation and voice communication. For the voice communication, it can support selected pre-emphasis, squelch and audio amplifier. The radio is PLL(Phase Lock Loop Synthesizer) /microprocessor controlled. The application of two- point modulation with good low-frequency response in the radio also makes it a competitive choice for 9600bps rate data application. -
Page 4: Technical Specifications
Shenzhen Friendcom Technology Development Co., Ltd. 2 Technical Specifications General Specification Working Frequency 136MHz～174MHz Channel Spacing 6.25KHz/12.5KHz Programmable Modulation Type Number of Channels Nominal Working Voltage 12V DC 9.5 V～16V DC Extreme Working Voltage -40℃～+80℃ Storage Temperature -30℃～+65℃ Operating Temperature ＜100mA... -
Page 5: Interface Of The Radio
Shenzhen Friendcom Technology Development Co., Ltd. ＜-119dBm Extreme＜-115dBm RX Sensitivity (12dB SINAD) ＞70dB ＞70dB Image Rejection ＞70dB IF Rejection ＞70dB Spurious Rejection ＞65dB Intermodulation Suppression ＜-57dBm Conducted Spurious Emission ＜5% Receiving Audio Distortion ＞30dB 6.25KHz Channel Spacing RX SNR ＞40dB 12.5KHz Channel Spacing... -
Page 6: Pin Definition
Shenzhen Friendcom Technology Development Co., Ltd. Table 1 3.1 Pin Assignment As to FC-302V radio, the pin assignment is shown in Table 2. Table 2 Pin Name Pin No. Description Remark AUDIO_IN Audio input. 3KHz LPF, （MOD IN） Modulation sensitivity is 100mV. -
Page 7: Application Instruction
Main goal of this instruction is to save time for user by supporting exact usage of the software, at the same time, give a help to user who wants to utilize the radio for another applications. This programming software enables the various parameters of FC-302V to be read, modified, programmed and printed. 4.1 Hardware Installation To apply PC software to radio application, FC-302 QuickSet En v0.1.12, programming cable, programming kit... -
Page 8: Operation Instruction
Shenzhen Friendcom Technology Development Co., Ltd. Descriptions DB15 male connector for radio with DB15 female. Power Supply (DC 12V) DB15 female connector for radio with DB15 male. DB9 female connector for RS-232 interface of computer. The position of the jumper: For radio’s parameter setting, user should put the jumper on the position shown as below. - Page 9 Shenzhen Friendcom Technology Development Co., Ltd. First of all , open the con port. The CON port is with characteristics of 9600bps, 8N1 and click “Open” as picture shows.
- Page 10 Shenzhen Friendcom Technology Development Co., Ltd. If user puts mouse cursor on the each icon in tool bar for a second, message for function indication is displayed. Power on the radio, after 5 seconds, click on the "Read", establish the communication with PC and radio. As...
- Page 11 Shenzhen Friendcom Technology Development Co., Ltd. 4.2.2 Input Channel Data In this option part, user can input channel selection from 1 to 16, Rx,Tx frequency, Rx,Tx tone option such as CTCSS, DCS, power, switch and make SCAN list, and choose bandwidth, Narrow or Wide according to each channel.
- Page 12 Shenzhen Friendcom Technology Development Co., Ltd. User can decide the channel spacing in this feature with optional 6.25KHz (Narrow) or 12.5KHz (Wide) channel spacing. 4.2.2.3 SQ level Five SQ levels can be select in our radio. Level 0 is for fully open mute.
- Page 13 Shenzhen Friendcom Technology Development Co., Ltd. CTCSS/DCS User can encode tones with CTCSS/DCS according to options shown in the picture. The feature is not available for high speed data transmission. Switch When we use radio remote: the Switch function can be use to change a logic from +5V to 0V minimum.
- Page 14 (set by “stop when timeout”) after the radio released PTT. 4.2.3.3.3 De-emphasis Volume FC-302V radio output voice via SPK Pin with 9 levels volume. User is able to select appropriate volume for the connected external speaker in this feature.
- Page 15 Shenzhen Friendcom Technology Development Co., Ltd. Power Save Time When Power save is enable, sleep time can be programmed from 20 to 500 ms in 20ms increment with 1~25 optional values. That means 1 equals to 20 ms, 2 equals to 40ms ..25 equal to 500ms Standby time can also be programmed from 40 to 600 ms in 40ms increment with 1~15 optional values.
-
Page 16: Maintenance And Repair
Shenzhen Friendcom Technology Development Co., Ltd. Scan modes are set up in “Option” and shown as below 0 ---------normal scan with carry only 1 ---------normal scan, carry with tone 2 ---------priority scan, carry only 3 ---------priority scan, carry with tone If normal scan is enabled, radio will scan from initial channel to channel 16 sequentially. -
Page 17: Removing & Replacing The Upper Cover
Shenzhen Friendcom Technology Development Co., Ltd. Fig. 18 Exterior View 5.2 Removing & Replacing the Upper Cover Removing the Upper Cover 1. Unscrew the four upper cover mounting screws located on the upper cover of radio To replace the Upper Cover 1. -
Page 18: Removing & Replacing The Main Board
Shenzhen Friendcom Technology Development Co., Ltd. 5 Remove the Shield Plate. To replace the Main board & Power board Assembly: 1. Reserve the steps taken to remove the Main board Assembly & Power board & Shield Plate. Fig. 20-Power board & Modem board Assembly Removal Fig. -
Page 19: Repairable/Replaceable Parts List
Shenzhen Friendcom Technology Development Co., Ltd. Fig. 21-Main Board Removal 5.5 Repairable/Replaceable Parts List Fig. 22 Exploded View... -
Page 20: Accessories Available
Shenzhen Friendcom Technology Development Co., Ltd. 6 Accessories Available Please contact the Friendcom sales team for accessory information. sales@friendcom.com Tel: +86 755 23230544 Notice: FCC Radiation Exposure Statement: The equipment compliances with RF exposure guidelines. This equipment should be installed and opreated with minimum distance 150cm between the radiator &...
