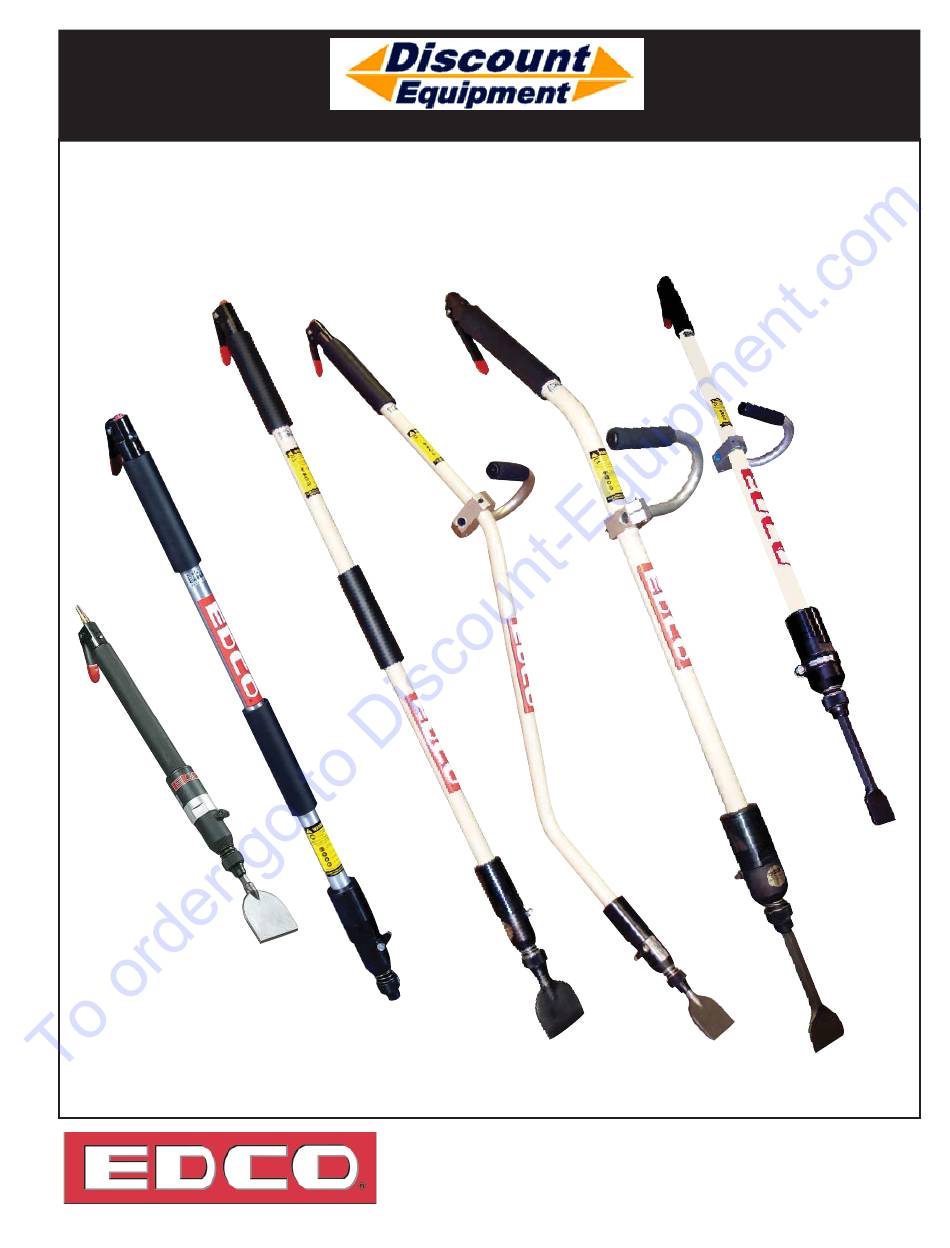

- Page 1 E-ALRE-I-0517 Operator’s Instruction Manual Models ALR, ALR-E, ALR-BS CHISEL SCALERS...
- Page 2 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
-
Page 3: Safety Guidelines
California to cause cancer and/or birth defects or other • ALR-E Limit the hose length to 30 feet (10 meters) max- reproductive harm. Check the chemical properties of the imum. Note: The pressure drop of 1/2” diameter hose is materials to be removed. -
Page 4: Table Of Contents
E-ALRE-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Equipment Instruction Manual EDCO Model ALR, ALR-E, ALR-BS Table of Contents Safety Guidelines......................Table of Contents......................Dust and Silica Warning....................Specifications........................Example of Work & Damaged Chisels & Installing and Removing a Chisel....Procedure for Lubricating the ALR.................. -
Page 5: Dust And Silica Warning
E-ALRE-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or ma- terial being cut or the composition of the tool being used, review the material safety data sheets and/or consult your employer, the manufacturers/suppliers, governmen-... -
Page 6: Specifications
E-ALRE-I-0517 EQUIPMENT DEVELOPMENT CO., INC. EDCO Model ALR, ALR-E, ALR-BS SPECIFICATIONS SPECIFICATIONS FOR - MODEL ALR WEIGHT* LENGTH* Steel Aluminum 24.0 in (61 cm) 8.6 lb (3.9 kg) ALR-2 7.6 lb (3.4 kg) 45.0 in (114.3 cm) 12.5 lb (5.6 kg) ALR-4 8.5 lb (3.9 kg) -
Page 7: Example Of Work & Damaged Chisels & Installing And Removing A Chisel
E-ALRE-I-0517 EQUIPMENT DEVELOPMENT CO., INC. EXAMPLE OF WORN AND DAMAGED CHISEL This is an example of a chisel that has been abused, prob- ably hitting inserts, studs or other objects embedded in the working surface. To get maximum life out of a chisel be care- ful when working around objects protruding out of the work surface. -
Page 8: Procedure For Lubricating The Alr
EQUIPMENT DEVELOPMENT CO., INC. PROCEDURE FOR LUBRICATING THE ALR To lubricate the ALR put four (4) to five (5) drops of light weight machine oil in the hose connector circled above before connecting the air supply, graphite oil in extremely cold weather. -
Page 9: Accessories
Scrapers 2”, 4”, 8” or 12” widths Scraper Blades are made from extra Pictured from left to right: ALR-2A, ALR- hard spring steel which fasten to a 4A, ALR-5, ALR-E, ALR-BS-ERGO, ALR-BS- milled shank. Easily removed and... -
Page 10: Disassembly And Instructions
These items are assemblies. Refer to illustration #2, page 10, for breakdown. TO DISASSEMBLE THE ALR SERIES AND BIG STICK NOTE: Items (#2), (#12), (#13) and (#18) can be replaced as assemblies. NOTE: All threaded parts are standard right-hand threads. -
Page 11: Maintenance Instructions & Schedule
2. After every 100 hours of use, flush the tool thoroughly with an environmentally safe, nonflammable and non-caustic solvent to clean out any oil/dirt buildup in the tool. Oil tool immediately after flushing to prevent corrosion. 3. Replace any damaged parts immediately. Use only genuine EDCO parts. ILLUSTRATION #2... - Page 12 E-ALRE-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Maintenance Schedule Read and follow instruc- Repairs are to be done tions in the motor owner’s by authorized EDCO manual. Dealers only. All maintenance to be performed by qualified personnel. Visual Inspection of Entire Tool...
-
Page 13: Limited Equipment Warranty
Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
