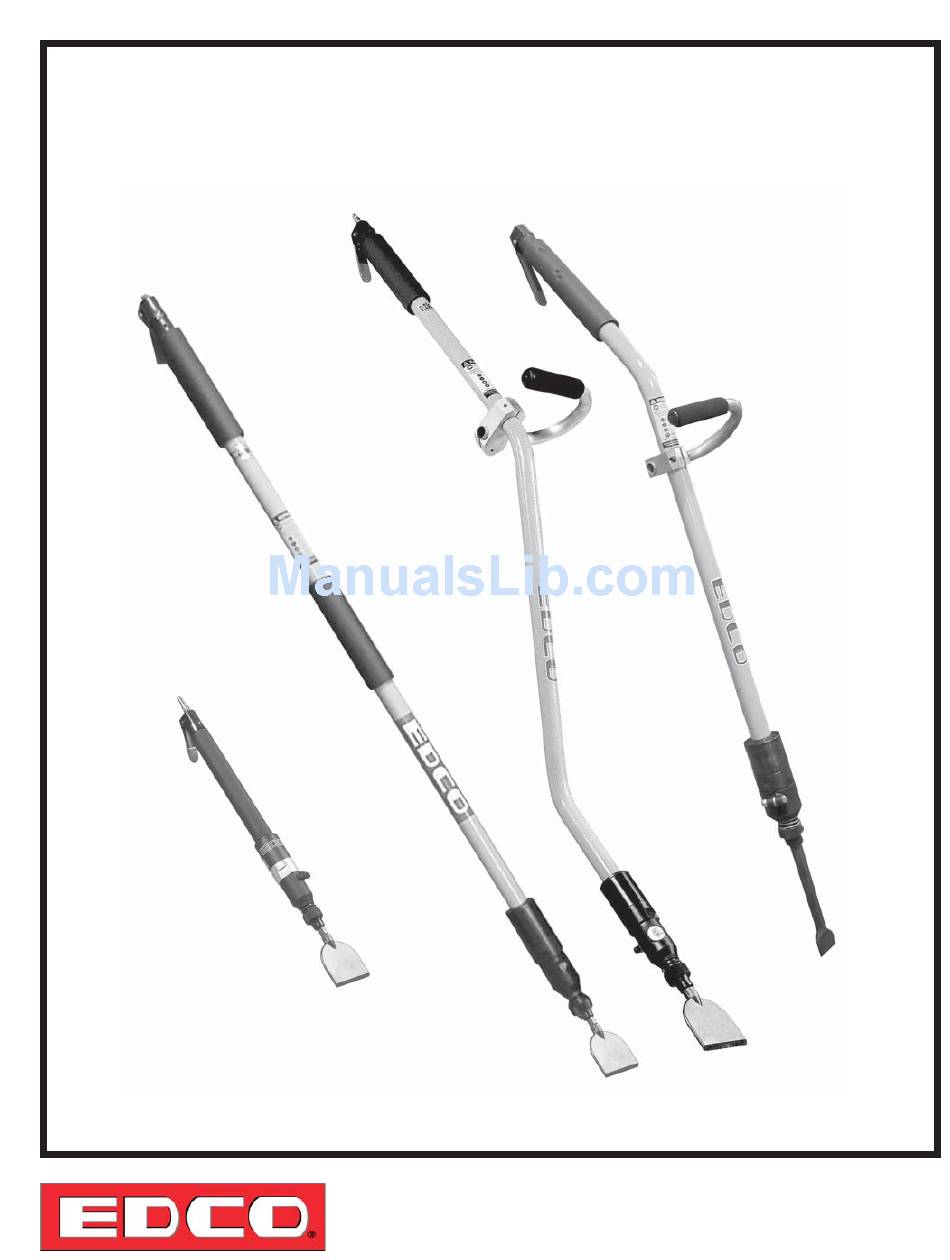

- Page 1 E-ALRE-I-0706 Operator’s Instruction Manual Models ALR, ALR-E, ALR-BS CHISEL SCALERS 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2006 Website: www.edcoinc.com • Email: sales@edcoinc.com Page 1...
-
Page 2: Safety Guidelines
California to cause cancer and/or birth defects or other • ALR-E Limit the hose length to 30 feet (10 meters) maxi- reproductive harm. Check the chemical properties of the mum. Note: The pressure drop of 1/2” diameter hose is materials to be removed. -
Page 3: Table Of Contents
ALR-E Shown Figure 1 HOW TO ORDER REPLACEMENT PARTS ALR-E ALR-BS To insure product safety and reliability, always use genu- ine EDCO replacement parts when making repairs to the 67.0” 65.5 equipment. Length (L) 170.2 cm 166.4 cm When ordering parts, please specify the MODEL and 12.3 lbs. -
Page 4: Specifi Cations
E-ALRE-I-0706 EDCO Model ALR, ALR-E, ALR-BS SPECIFICATIONS SPECIFICATIONS FOR - MODEL ALR WEIGHT* LENGTH* Aluminum Steel 28.5 in (72.4 cm) 8.6 lb (3.9 kg) ALR-2 7.6 lb (3.4 kg) 49.0 in (124.5 cm) 11.3 lb (5.1 kg) ALR-4 8.5 lb (3.9 kg) 61.0 in (154.9 cm) -
Page 5: Examples Of Worn And Good Chisels
E-ALRE-I-0706 EXAMPLE OF WORN AND DAMAGED CHISEL The above is an example of a chisel that has been abused, probably hitting inserts, studs or other objects embedded in the working surface. To get maximum life out of a chisel be careful when working around objects protruding out of the work surface. -
Page 6: Procedure For Installing And Removing A Chisel
E-ALRE-I-0706 PROCEDURE FOR INSTALLING AND REMOVING A CHISEL Chisel Holder Collar Remove the air supply before performing the following steps. To install a chisel, there are several different types but all install in the same manner. Slide the collar back towards the chisel holder and slide the chisel hex end into the chisel holder and release the collar to lock the chisel in place. -
Page 7: Procedure For Lubricating The Alr
E-ALRE-I-0706 PROCEDURE FOR LUBRICATING THE ALR To lubricate the ALR put four (4) to fi ve (5) drops of light weight machine oil in the hose connector circled above before connecting the air supply, graphite oil in extremely cold weather. -
Page 8: Accessories
Questions? Call EDCO installations. Break away loose concrete or mortar droppings on 1-800-638-3326 slabs, walls &... -
Page 9: Instructions And Disassembly
These items are assemblies. Refer to illustration #2, page 10, for breakdown. TO DISASSEMBLE THE ALR SERIES AND BIG STICK NOTE: Items (#2), (#12), (#13) and (#18) can be replaced as assemblies. NOTE: All threaded parts are standard right-hand threads. -
Page 10: Maintenance Instructions & Schedule
3. After every 100 hours of use, fl ush the tool thoroughly with an environmentally safe, nonfl ammable and non-caustic solvent to clean out any oil/gunk bildup in the tool. Oil tool immediately after fl ushing to prevent corrosion. 4. Replace any damaged parts immediately. Use only genuine EDCO parts. ILLUSTRATION #2... - Page 11 E-ALRE-I-0706 Maintenance Schedule Read and follow instruc- Repairs are to be done tions in the motor owner’s by authorized EDCO manual. Dealers only. All maintenance to be performed by qualifi ed personnel. Visual Inspection of Entire Tool Check chisel for...
-
Page 12: Dust And Silica Warning
E-ALRE-I-0706 Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheets and/or consult your em- ployer, the manufacturers/suppliers, governmental agencies such as OSHA... - Page 13 E-ALRE-I-0706 Page left blank intentionally ***NOTICE*** READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT ***NOTICE*** 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2006 Website: www.edcoinc.com • Email: sales@edcoinc.com Page 13...
- Page 14 E-ALRE-I-0706 Page left blank intentionally ***WARNING*** "DO IT RIGHT" OR RISK SEVERE PERSONAL INJURY. FOLLOW INSTRUCTIONS CAREFULLY ***WARNING*** 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2006 Website: www.edcoinc.com •...
- Page 15 E-ALRE-I-0706 Page left blank intentionally 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2006 Website: www.edcoinc.com • Email: sales@edcoinc.com Page 15...
- Page 16 (6) six months (except for the chisel head assembly on all model ALR’s & ALR-BS, in which case the warranty period shall be 90 days) from *All past due accounts are subject to a late payment fee of 1.5% per month or a maximum date of shipment to the original retail or equipment rental center owner.
