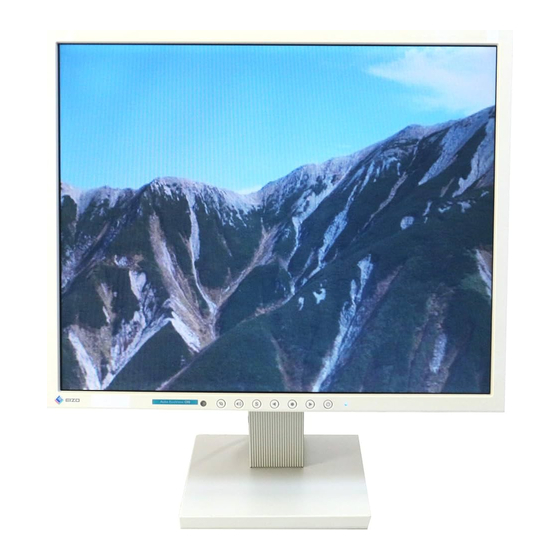

Eizo FlexScan S1701 Specification Sheet

Eizo FlexScan S1701 Specification Sheet

Eizo flexscan s1701: specifications
Hide thumbs Also See for FlexScan S1701:

Advertisement

Quick Links

Download this manual See also: User Manual, Setup Manual
S S pecifications Sheet
Click a model name to see the specifi cations, outside view,
and other information of the model.
S1701 (P.1-P.5)
S1721 (P.6-P.10)
S1731 (P.11-P.15)
S1901 (P.16-P.20)
S1911 (P.21-P.25)
S1921 (P.26-P.30)
S1931 (P.31-P.35)

Advertisement

loading

Related Manuals for Eizo FlexScan S1701

Summary of Contents for Eizo FlexScan S1701

  • Page 1 S S pecifications Sheet Click a model name to see the specifi cations, outside view, and other information of the model. S1701 (P.1-P.5) S1721 (P.6-P.10) S1731 (P.11-P.15) S1901 (P.16-P.20) S1911 (P.21-P.25) S1921 (P.26-P.30) S1931 (P.31-P.35)
  • Page 2 Specifi cations (S1701) LCD Panel 17-inch (43 cm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 160°, Horizontal 160° (CR: 10 or more) Dot Pitch 0.264 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Non-interlace) Digital: 59 - 61 Hz (Non-interlace)
  • Page 3 Dimensions (main unit) 363(14.3) × 300(11.8) × 59(2.32) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 3.9 kg (8.6 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (–4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Main default settings (factory settings)
  • Page 4 Outside Dimensions (ArcSwing 2 stand) 363(14.3) 339.8(13.4) Outside Dimensions (EZ-UP stand) 363(14.3) 340(13.4) 240(9.4) 100(3.9) 36(1.42) (2.32) 200(7.9) 294(11.6) 59(2.32) 36(1.42) 57(2.24) 76.9(3.03) 28(1.1) 246.8(9.7) S1701 unit : mm (inch) unit : mm (inch) 131.5(5.2) 100(3.9) 131.5(5.2) 334(13.1) Specifi cations Sheet...
  • Page 5 Ground (return for +5V, Hsync and Vsync) Hot Plug Detect Pin No. Signal Red ground Green ground Blue ground Ground EIZO ScreenCleaner S1701 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 6 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
  • Page 7 Specifi cations (S1721) LCD Panel 17-inch (43 cm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more) Dot Pitch 0.264 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz (Automatic) Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Automatic) Digital: 59 - 61 Hz...
  • Page 8 Dimensions (main unit) 363(14.3) × 300(11.8) × 59(2.32) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 3.9 kg (8.6 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (–4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Standard...
  • Page 9 Outside Dimensions (ArcSwing 2 stand) 363(14.3) 339.8(13.4) Outside Dimensions (EZ-UP stand) 363(14.3) 340(13.4) 240(9.4) 100(3.9) 36(1.42) (2.32) 200(7.9) 294(11.6) 59(2.32) 36(1.42) 57(2.24) 76.9(3.03) 28(1.1) 246.8(9.7) S1721 unit : mm (inch) unit : mm (inch) 131.5(5.2) 100(3.9) 131.5(5.2) 334(13.1) Specifi cations Sheet...
  • Page 10 Signal Red ground Green ground Blue ground Ground Remarks Cable power Serial data Serial data Cable ground EIZO ScreenCleaner S1721 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 11 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
  • Page 12 Specifi cations (S1731) LCD Panel 17-inch (43 cm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more) Dot Pitch 0.264 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz (Automatic) Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Automatic) Digital: 59 - 61 Hz...
  • Page 13 Dimensions (main unit) 363(14.3) × 300(11.8) × 59(2.32) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 3.9 kg (8.6 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (-4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Standard...
  • Page 14 Outside Dimensions (ArcSwing 2 stand) 363(14.3) 339.8(13.4) Outside Dimensions (EZ-UP stand) 363(14.3) 340(13.4) 240(9.4) 100(3.9) 36(1.42) (2.32) 200(7.9) 294(11.6) 59(2.32) 36(1.42) 57(2.24) 76.9(3.03) 28(1.1) 246.8(9.7) S1731 unit : mm (inch) unit : mm (inch) 131.5(5.2) 100(3.9) 131.5(5.2) 334(13.1) P.13 Specifi cations Sheet...
  • Page 15 Signal Red ground Green ground Blue ground Ground Remarks Cable power Serial data Serial data Cable ground EIZO ScreenCleaner S1731 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 16 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
  • Page 17 Specifi cations (S1901) LCD Panel 19-inch (48 cm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 160°, Horizontal 160° (CR: 10 or more) Dot Pitch 0.294 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Non-interlace) Digital: 59 - 61 Hz (Non-interlace)
  • Page 18 Dimensions (main unit) 405(15.9) × 334(13.1) × 61.5(2.42) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 5.2 kg (11.5 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (-4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Main default settings (factory settings)
  • Page 19 Outside Dimensions (ArcSwing 2 stand) 405(15.9) 378.4(14.9) Outside Dimensions (EZ-UP stand) 61.5(2.42) 38.5(1.52) 200(7.9) 310(12.2) S1901 unit : mm (inch) 100(3.9) unit : mm (inch) P.18 Specifi cations Sheet...
  • Page 20 Ground (return for +5V, Hsync and Vsync) Hot Plug Detect Pin No. Signal Red ground Green ground Blue ground Ground EIZO ScreenCleaner S1901 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 21 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
  • Page 22 Specifi cations (S1911) LCD Panel 19-inch (48 cm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 160°, Horizontal 160° (CR: 10 or more) Dot Pitch 0.294 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Non-interlace) Digital: 59 - 61 Hz (Non-interlace)
  • Page 23 Dimensions (main unit) 405(15.9) × 334(13.1) × 61.5(2.42) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 5.2 kg (11.5 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (-4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Main default settings (factory settings)
  • Page 24 Outside Dimensions (ArcSwing 2 stand) 405(15.9) 378.4(14.9) Outside Dimensions (EZ-UP stand) 61.5(2.42) 38.5(1.52) 200(7.9) 310(12.2) S1911 unit : mm (inch) 100(3.9) unit : mm (inch) P.23 Specifi cations Sheet...
  • Page 25 Ground (return for +5V, Hsync and Vsync) Hot Plug Detect Pin No. Signal Red ground Green ground Blue ground Ground EIZO ScreenCleaner S1911 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 26 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
  • Page 27 Specifi cations (S1921) LCD Panel 19-inch (48 cm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more) Dot Pitch 0.294 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz (Automatic) Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Automatic) Digital: 59 - 61 Hz...
  • Page 28 Dimensions (main unit) 405(15.9) × 334(13.1) × 61.5(2.42) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 5.2 kg (11.5 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (-4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Standard...
  • Page 29 Outside Dimensions (ArcSwing 2 stand) 405(15.9) 378.4(14.9) Outside Dimensions (EZ-UP stand) 61.5(2.42) 38.5(1.52) 200(7.9) 310(12.2) S1921 unit : mm (inch) 100(3.9) unit : mm (inch) P.28 Specifi cations Sheet...
  • Page 30 Signal Red ground Green ground Blue ground Ground Remarks Cable power Serial data Serial data Cable ground EIZO ScreenCleaner S1921 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 31 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
  • Page 32 Specifi cations (S1931) LCD Panel 19-inch (48 mm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more) Dot Pitch 0.294 mm Horizontal Scan Frequency Analog: 24.8 - 80 kHz (Automatic) Digital: 31 - 64 kHz Vertical Scan Frequency Analog: 50 - 75 Hz (Automatic) Digital: 59 - 61 Hz...
  • Page 33 Dimensions (main unit) 405(15.9) × 334(13.1) × 61.5(2.42) (Width) × (Height) × (Depth) mm (inch) Mass (including stand) Tilt stand Height adjustable stand ArcSwing 2 stand EZ-UP stand Mass (Main unit) 5.2 kg (11.5 lb) Environmental Conditions Operating temperature: 0 °C - 35 °C (32 °F - 95 °F) Storage temperature: –20 °C - 60 °C (-4 °F - 140 °F) Relative humidity: 30% - 80% (no condensation) Standard...
  • Page 34 Outside Dimensions (ArcSwing 2 stand) 405(15.9) 378.4(14.9) Outside Dimensions (EZ-UP stand) 61.5(2.42) 38.5(1.52) 200(7.9) 310(12.2) S1931 unit : mm (inch) 100(3.9) unit : mm (inch) P.33 Specifi cations Sheet...
  • Page 35 Signal Red ground Green ground Blue ground Ground Remarks Cable power Serial data Serial data Cable ground EIZO ScreenCleaner S1931 Pin No. Signal TMDS Data0- TMDS Data0+ TMDS Data0/5 Shield TMDS Clock shield TMDS Clock+ TMDS Clock- (NC*: No Connection) Pin No.
  • Page 36 Resolutions ● For analog signal input Vertical Scan Resolution 640 × 400 640 × 400 640 × 480 640 × 480 less than 75 Hz 720 × 400 800 × 600 less than 75 Hz 832 × 624 1024 × 768 less than 75 Hz 1152 ×...
