TRIDENT-3000
3000mm dia. Ocean Buoy
Installation & Service Manual
Version 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIDENT-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sealite TRIDENT-3000

Summary of Contents for Sealite TRIDENT-3000

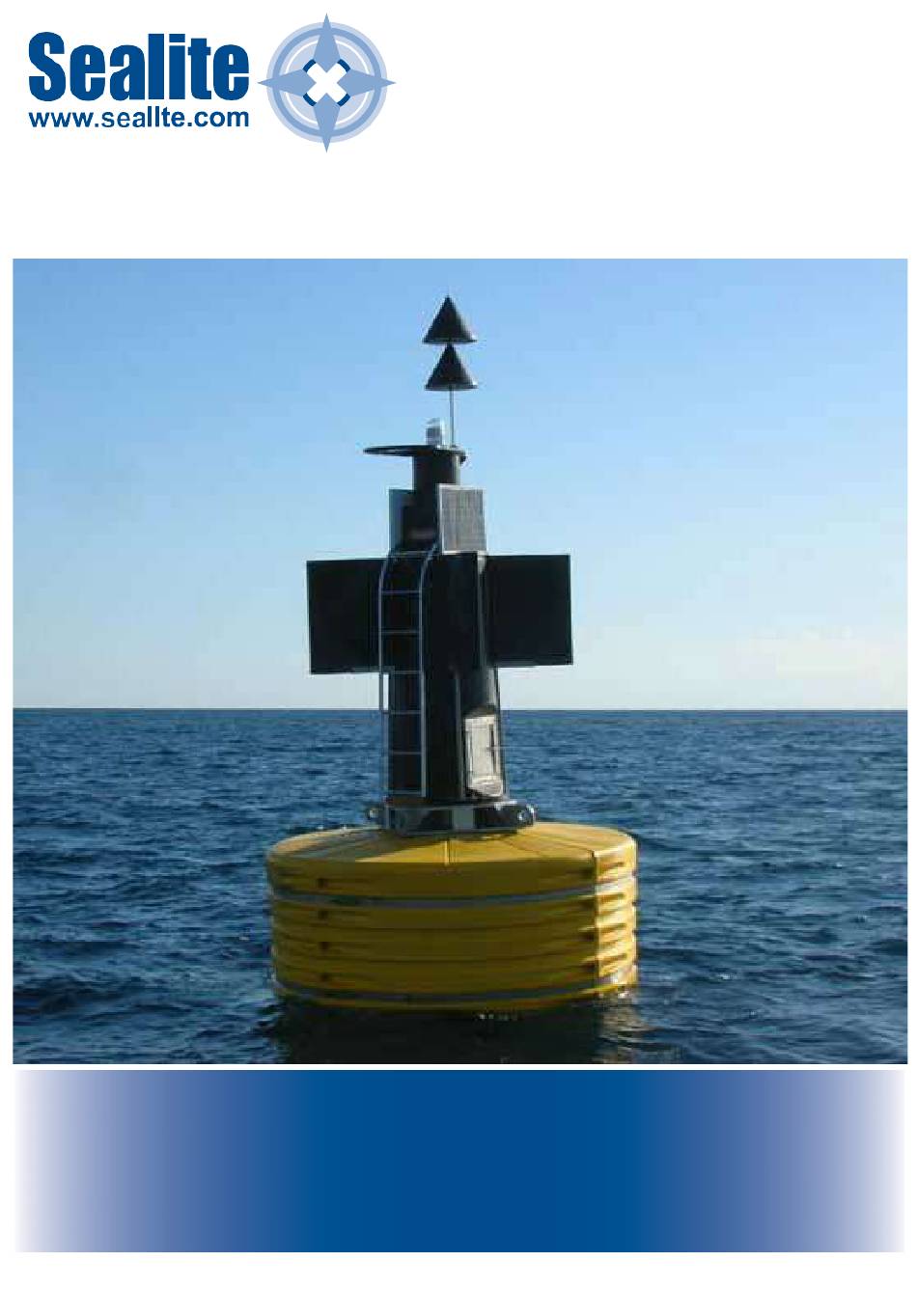

  • Page 1 TRIDENT-3000 3000mm dia. Ocean Buoy Installation & Service Manual Version 1.6...

  • Page 2: Table Of Contents

    June 2010 M. Henry Technical Drawings & Warranty Updated July 2010 K. Paton Update: Spec table June 2012 J. Dore Update: Annual maintenance May 2015 S. Amirthalingam M.Nicholson Technical Specification Update October 2020 Latest products and information available at www.sealite.com...

  • Page 3: Introduction

    Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO 9001:2008 quality management system.

  • Page 4: Trident-3000 Ocean Buoy

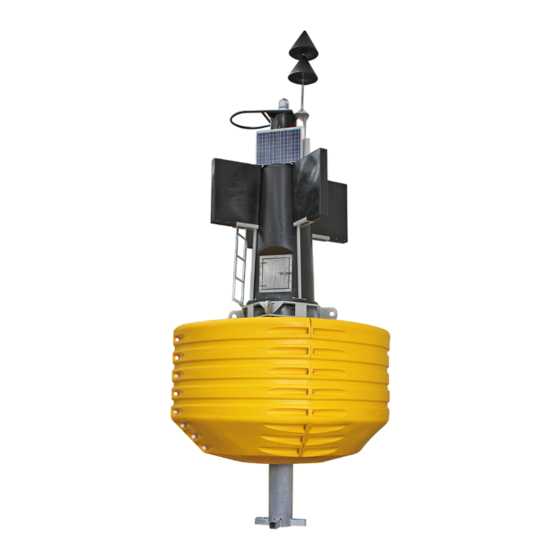

    3000mm dia. Ocean Buoy TRIDENT-3000 Ocean Buoy The TRIDENT-3000 is one of the largest rotationally moulded buoys available, with a float diameter of 3 meters and lantern focal height of up to 5 meters. The float section of the TRIDENT-3000 is built from four (4) roto-moulded quadrants, which fasten together to form an incredibly robust 3 meter wide float section standing 1.8m tall.

  • Page 5: Lantern Options

    SL-C310 Compact Solar Marine Lantern • SL-C420 Compact Solar Marine Lantern • SL-125 Series LED Marine Lantern Series • SL-155 Marine Lanterns TRIDENT-3000 Accessory Options • Mould-in graphics • Monitoring Systems (AIS, GSM Cell-Phone) Latest products and information available at www.sealite.com...

  • Page 6: Product Components

    Ballast Rods M20 Nuts Ø20 Flat Washer Ø20 Spring Washer Mooring Pin Mooring Pin Sleeve M48 Nut M10 x 30mm Long Bolt Ø10 Spring Washer * Varies depending on local conditions and installation requirements Latest products and information available at www.sealite.com...
  • Page 7 M10 x 45mm Long Bolts Ø10 Penny Washer Ø10 Penny Washer Ø10 Spring Washer Ø10 Spring Washer M10 Nut M10 Nut 12V 55AH SLA Battery 12V 55AH SLA Battery M10 x 110mm Long Bolts Latest products and information available at www.sealite.com...

  • Page 8: Assembly Instructions

    3000mm dia. Ocean Buoy Assembly Instructions Check Components Unpack all components from container. Inspect all components for any damage. Please alert Sealite if any component is missing or damaged. Assembly Step 1 Position the Mooring Post upside down on flat level ground.
  • Page 9 • DO NOT USE THE LADDER AS A LIFTING POINT • DO NOT USE SOLAR PANELS AS A LIFTING POINT. Ladder to be positioned as shown. • ONLY USE A SLING AROUND THE BODY OF THE TOWER TO MOVE INTO POSITION Latest products and information available at www.sealite.com...
  • Page 10 Please do not leave the Buoy lying on the Float Sections, they may deform while in this position if left of more than 1 hour. Apply marine grease over any exposed thread for ease of maintenance Latest products and information available at www.sealite.com...
  • Page 11 TRIDENT-3000 3000mm dia. Ocean Buoy Diagram 1. 4.5 mtr TRIDENT-3000 Day Marks fit over locating posts here Secure to base of Tower Assembly Ladder Mounting Plate Rubber Collar Insulator Ballast Plates Mooring Pin Latest products and information available at www.sealite.com...
  • Page 12 TRIDENT-3000 3000mm dia. Ocean Buoy Diagram 2. 5.1 mtr TRIDENT-3000 Day Marks fit over locating posts here Secure to base of Tower Assembly Ladder Mounting Plate Rubber Collar Insulator Ballast Plates Mooring Pin Latest products and information available at www.sealite.com...

  • Page 13: Mooring Diagram

    TRIDENT-3000 3000mm dia. Ocean Buoy TRIDENT-3000 Mooring Diagram Latest products and information available at www.sealite.com...

  • Page 14: Standard Wiring Diagram

    TRIDENT-3000 3000mm dia. Ocean Buoy Standard Wiring Diagram Latest products and information available at www.sealite.com...

  • Page 15: Gsm Wiring Diagram

    TRIDENT-3000 3000mm dia. Ocean Buoy GSM Wiring Diagram Latest products and information available at www.sealite.com...

  • Page 16: Marine Buoy Maintenance

    3000mm dia. Ocean Buoy Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy.
  • Page 17 TRIDENT-3000 3000mm dia. Ocean Buoy Notes Latest products and information available at www.sealite.com...

  • Page 18: Sealite Buoy Warranty

    Sealite Pty Ltd will repair or replace your buoy product in the event of failure for a period of up to twelve months (small buoy products less than 1500mm diameter) & a period of up to five years (large buoy products 1500mm diameter &...
  • Page 19 (up to 3mt in diameter) Area Lighting Mooring Systems & Accessories Head Office Sealite Pty Ltd 11 Industrial Drive Somerville, Vic 3912 Australia Tel: +61 3 5977 6128 Fax: +61 3 5977 6124 Email: info@sealite.com Internet: www.sealite.com Latest products and information available at www.sealite.com...
