- Page 1 ATLANTIC-2600 Ocean Buoy Installation & Service Manual Version 2.2...
-
Page 3: Table Of Contents
Breather Unit September 2013 P. Rainey Mooring diagram update September 2015 D. Tomaszewicz Contact details April 2016 J. Dore Warranty V2-3 & Footer February 2016 S.Amirthalingam M.Nicholson Remove spec and warranty November 2018 Latest products and information available at www.sealite.com... -
Page 4: Introduction
Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO 9001:2008 quality management system. -
Page 5: Atlantic-2600 Ocean Buoy

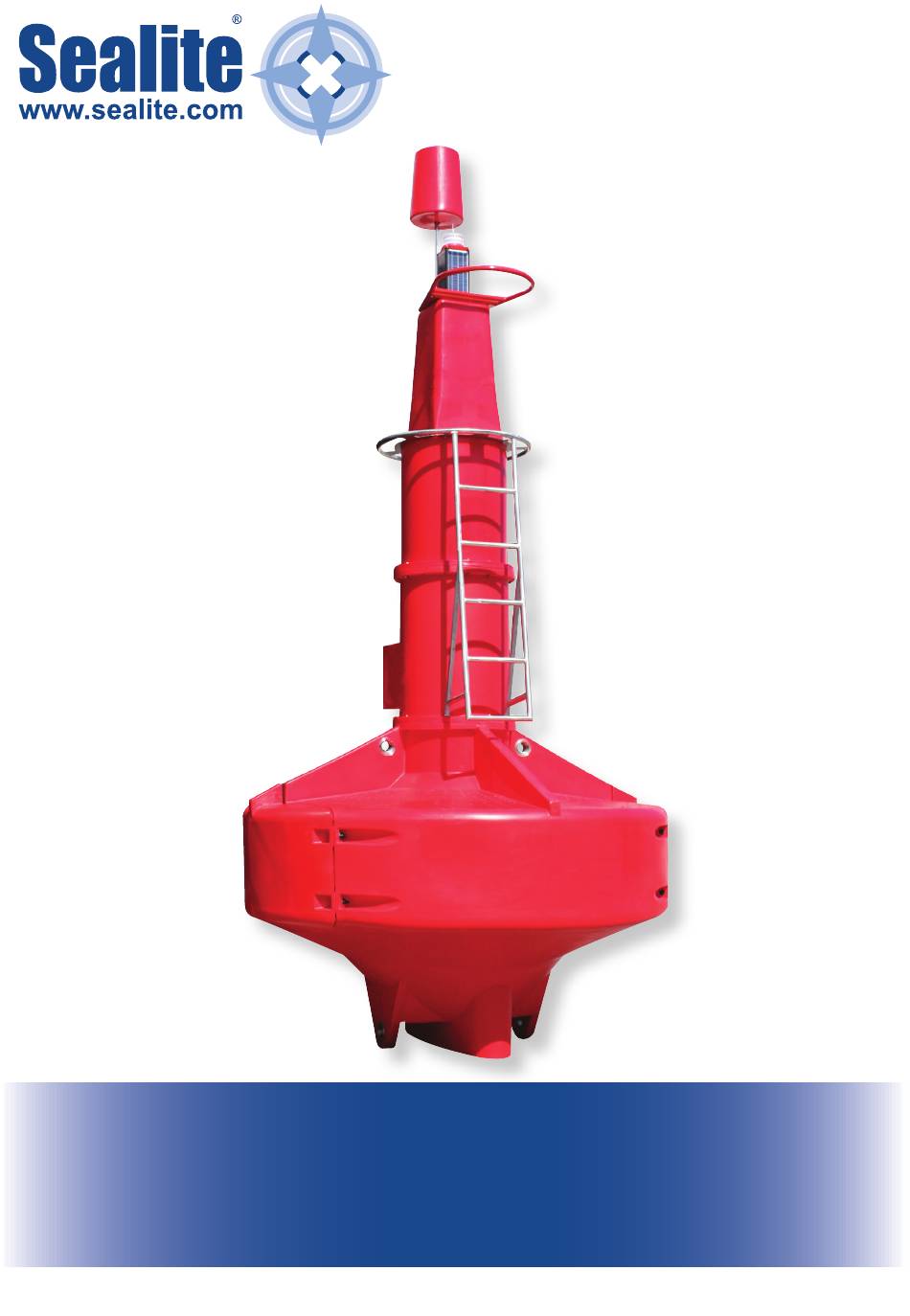

ATLANTIC-2600 Ocean Buoy ATLANTIC-2600 Ocean Buoy The ATLANTIC-2600 is a robust, rotationally-moulded polyethylene navigation buoy designed for offshore port and coastal applications. Product Features & Technical Specifications IALA top mark Optional self-contained lantern Internal 10m radar Guard rail reflector ATLANTIC-2600-ET... - Page 6 ATLANTIC-2600 Ocean Buoy ATLANTIC-2600 Standard Model ATLANTIC-2600-ET Model includes extended tower Latest products and information available at www.sealite.com...
-
Page 7: Product Components
G316 S/S M16 Plain Nut Galvanised Grade M Shackle Ø38 with Ø44 pin, inside width 70mm x 137mm Galvanised Grade S Shackle, Ø32mm Galvanised Grade S Shackle, Ø38mm Bridle Plate G316 S/S = Grade 316 Stainless Steel Latest products and information available at www.sealite.com... -
Page 8: Assembly Instructions
Fit any day mark brackets • Fit the tower section to the float assembly using 16 x M10 Bolts, washers and nuts • Final Inspection: Check all bolts are tightened Check lantern is working correctly o Check battery (if fitted) is secured properly o Check battery door (if fitted) is latched properly to form a water tight seal • Ensure the lug bushes are fitted to the mooring bushes of the buoy • Fit the mooring assembly to the mooring points Latest products and information available at www.sealite.com... - Page 9 Installation Instructions for Breather Units (For Products which Contain Sealite’s Power Packs) Unscrew the white plug located at the side/base of the buoy Apply a small amount of marine grade silicon adhesive to the thread of the breather valve Carefully screw in the breather unit ensuring that the arrow’s direction is pointing down.
-
Page 10: Mooring Assembly Instructions
Length of Chain Water Depth Best Practice 3 x Water Depth (Up to 6kts current) For Reduced Water Circle 2.5 x Water Depth (Current 2kts to 4kts) For Minimum Water Circle Not less than (use only where current <2kts) 2 x Water Depth Latest products and information available at www.sealite.com... -
Page 11: Mooring Diagram
ATLANTIC-2600 Ocean Buoy ATLANTIC-2600 Mooring Diagram Latest products and information available at www.sealite.com... -
Page 12: Marine Buoy Maintenance
ATLANTIC-2600 Ocean Buoy Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy. IALA Recommendation AISM E-107 suggests moorings are inspected annually. - Page 13 ATLANTIC-2600 Ocean Buoy Notes Latest products and information available at www.sealite.com...
-
Page 14: Sealite Buoy Warranty
ATLANTIC-2600 Ocean Buoy Sealite Buoy Warranty Refer to Sealite website:www.sealite.com Latest products and information available at www.sealite.com...
