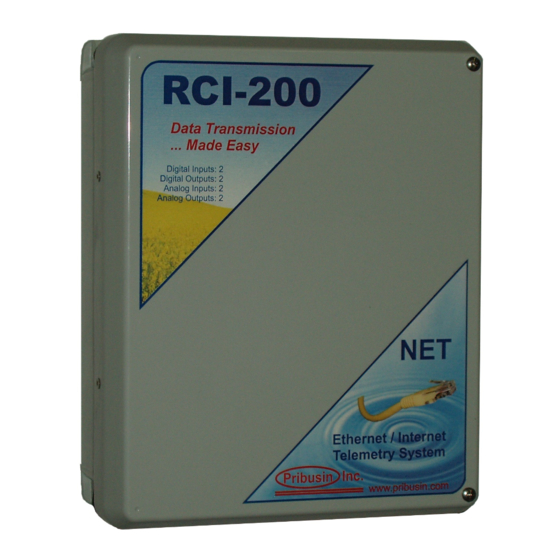

Pribusin RCI-200 Series Instruction Manual

Remote control signal interface
Hide thumbs Also See for RCI-200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Model:
Function:
Communication:
Input:
Output:
Power:
Serial #:
For Technical Assistance And Questions Call
USA: (231) 788-2900 CANADA: (905) 660-5336
RCI-200-XXX
Remote Control Signal Interface
XXX=SER: RS-232/485
XXX=MDM Modem Dial-Up
XXX=FSK: Leased Line
XXX=RF9: 900 Mhz Wireless
XXX=R
F2
: 2.4 Ghz Wireless
2 "Dry" Contacts and 2 Analog Inputs
2 Form 'C' Contacts and 2 Analog Outputs
117VAC, 50/60Hz
24 VDC
(If special or required)
Manufacturers of Process
Controls and Instrumentation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCI-200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Pribusin RCI-200 Series

Summary of Contents for Pribusin RCI-200 Series

  • Page 1 Manufacturers of Process Controls and Instrumentation Instruction Manual Model: RCI-200-XXX Function: Remote Control Signal Interface Communication: XXX=SER: RS-232/485 XXX=MDM Modem Dial-Up XXX=FSK: Leased Line XXX=RF9: 900 Mhz Wireless XXX=R : 2.4 Ghz Wireless Input: 2 “Dry” Contacts and 2 Analog Inputs Output: 2 Form ‘C’...

  • Page 2: Restocking Policy

    Restocking Policy All product returned to Pribusin Inc. in prime condition (not damaged, scratched or defaced in any way) within seven (7) months from the original date of shipment is subject to a 50% restocking charge. All product must be accompanied by a Return Authorization number (RA number) which must be obtained from Pribusin Inc.
  • Page 3 Model: RCI-200-SER Manufacturers of Process Remote Control Signal Interface Controls and Instrumentation RS232/485 Standard Features: Bi-directional Communication using a RS232/485 Serial Bus Link 2 Dry Contact and 2 Analog Inputs 2 'C' Relay Contacts and 2 Analog Outputs No Calibration Required Microprocessor Controlled for High Accuracy Power: 117 VAC 50/60 Hz (Optional 24 VDC) High Noise Rejection...
  • Page 4 Converter System C (232/485COM) * Additional Signal Booster(s) required for 32+ devices (see SPB-485) Manufactured By: USA: CANADA: Pribusin Inc. Pribusin Inc. 743 Marquette Ave. 101 Freshway Dr. Unit 57 Muskegon, MI 49442 Concord, Ontario, L4K 1R9 www.pribusin.com Ph: (231) 788-2900 Ph: (905) 660-5336 info@pribusin.com...
  • Page 8 RCI-200 Connections: The RCI-200 is the main board of an RCI-200-XXX Telemetry system. It provides the input and output signal connections as well as the power supply for the unit. A separate communications board is added to the RCI-200 to allow it to communicate with other units. This communications board may have its own configuration that is in a separate section of this manual.
  • Page 9 Inputs: The RCI-200 has two dry contact inputs and two 0-20mA inputs. The dry contact inputs are excited with 24VDC and will source approximately 20mA when the contact is closed. A red LED lights up when a contact input is closed.
  • Page 10 Outputs: The RCI-200 has two form ‘C’ relay contact outputs and two 0-20mA analog outputs. The relay contacts are capable of switching 120VAC, 10A or 240VAC, 6A. An energy absorbing varistor is installed across each contact to limit switching transients. A third relay contact acts as a communications fail indicator.
  • Page 11 RCI-200 Configuration: The RCI-200 requires no configuration other than for its communication fail operation. In the event of a communications failure on the communications board, the RCI-200 can be set up to take various actions on its outputs. This may be desirable in order to place connected devices into a safe operating mode.
  • Page 12 SERIAL Communication Option: The -SER communications option for the RCI series utilizes either an RS-232 or RS-485 link to exchange the signal data between a host and its remote(s). There are three types of Topologies that can be configured: 1) Point-to-Point, 2) Host-to-Multipoint and 3) PC-to-Multipoint In a Point-to-Point topology one host communicates with one remote.

  • Page 13: Serial Configuration

    SERIAL Configuration: All SERIAL configurations are done via two banks of DIP switches. SW1-1, -2, & -3 assigns the remote address from 1 to 8 using a binary encoding scheme. SW2 assigns the Topology, Channel Numbers and Host/Remote Mode. The switches are located on the communications board just above the main circuit board.

  • Page 14: Remote Configuration

    Next, set the number of channels of the host using SW2-3, -4. An RCI-200 can at most have 2 channels. This is the number of channels that will be exchanged between the host and each remote. SW2-3 SW2-4 Channels on Host DOWN Remote Configuration: To make an RCI-200 operate as a REMOTE unit, make sure that...
  • Page 15 Next, set the number of channels on this remote using SW2-1, -2. One channel is considered 1 analog input/output plus 1 contact input/output. Hence an RCI-200 can have at most 1 channel. SW2-1 SW2-2 Channels on Remote DOWN ..\Manuals\RCI-200-SER Page 8 of 12...
  • Page 16 PC or PLC Interfacing using MODBUS ASCII: The RCI-200-SER can communicate directly to a PC or PLC using MODBUS ASCII protocol. Numerous off-the-shelf software packages have built-in MODBUS support. The following information provides the MODBUS specific parameters necessary to configure the PC/PLC software. Message Format Speed Start...

  • Page 17: Point-To-Point Communication

    Point-to-Point Communication Communication between one host and one remote is called point-to-point. Example 1: An RCI-100 Host communicating with an RCI-100 Remote RCI-100 (Host) RCI-100 (Remote) Host Channels: 1 Remote Channels: 1 Number of Remotes: 1 Address: 1 Channels on Remotes: 1 Example 2: An RCI-200 Host communicating with an RCI-200 Remote RCI-200 (Host) RCI-200 (Remote)
  • Page 18 Point-to-Multipoint Communication Communication between a host and more than one remote is called point-to-multipoint. Example 1: An RCI-200 Host communicating with (2) RCI-100 Remotes RCI-200 (Host) RCI-100 (Remote 1) RCI-100 (Remote 2) Host Channels: 2 Remote Channels: 1 Remote Channels: 1 Number of Remotes: 2 Address: 1 Address: 2...
  • Page 19 RCI-800 (Host) Host Channels: 8 Number of Remotes: 3 Channels on Remotes: 2 RCI-200 (Remote 1) RCI-200 (Remote 2) RCI-200 (Remote 3) Remote Channels: 2 Remote Channels: 2 Remote Channels: 2 Address: 1 Address: 2 Address: 3 ..\Manuals\RCI-200-SER Page 12 of 12...
