INSTRUCTION MANUAL
BERG MOD HD 350 LB ICE MACH FC
BERG MOD HD 350 LB ICE MACH HC
BERG MOD HD 500 LB ICE MACH FC
BERG MOD HD 500 LB ICE MACH HC
This manual contains important information regarding your unit. Please read this manual
thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with
regular maintenance guidelines outlines in this manual may void the warranty.

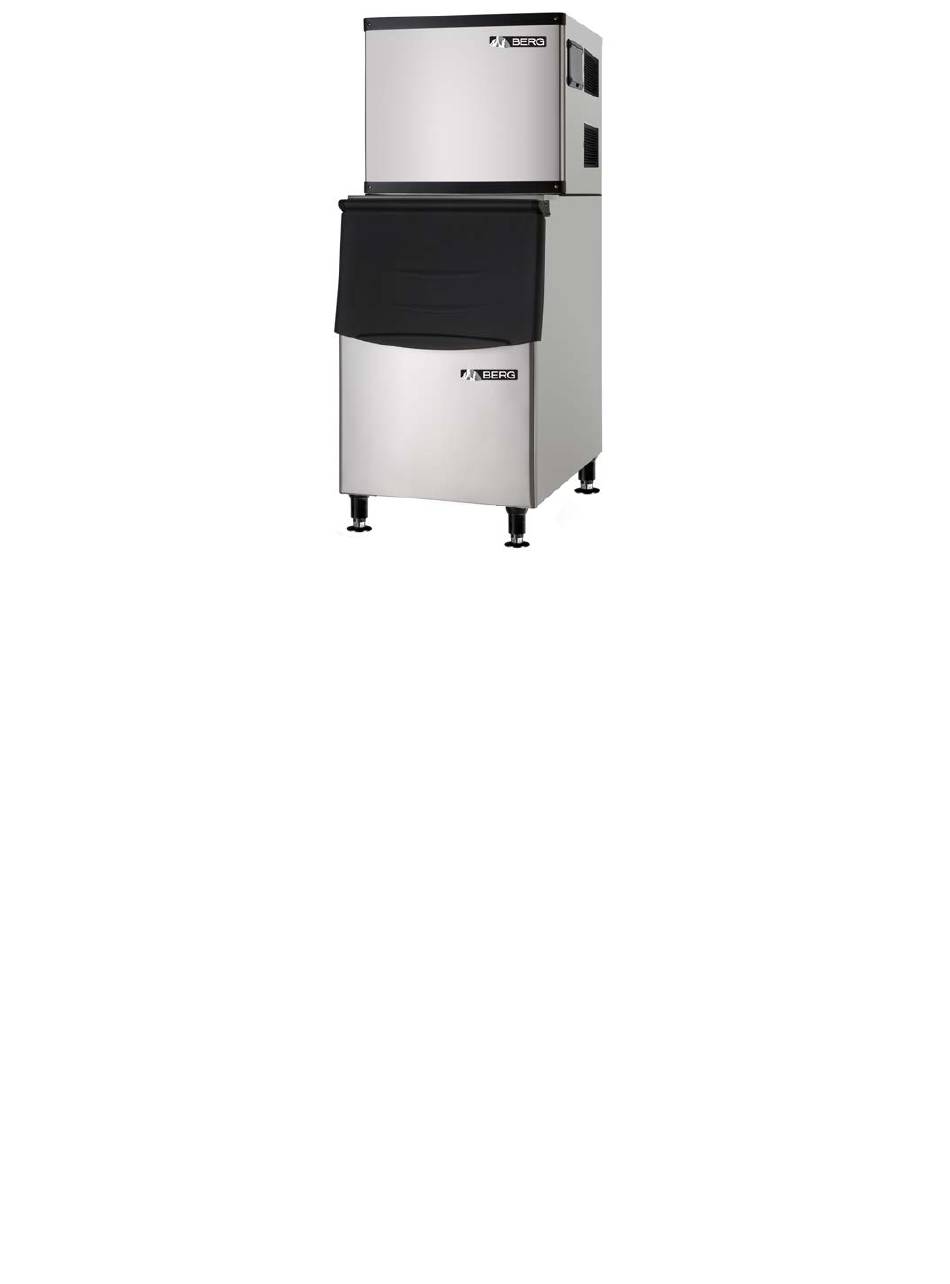

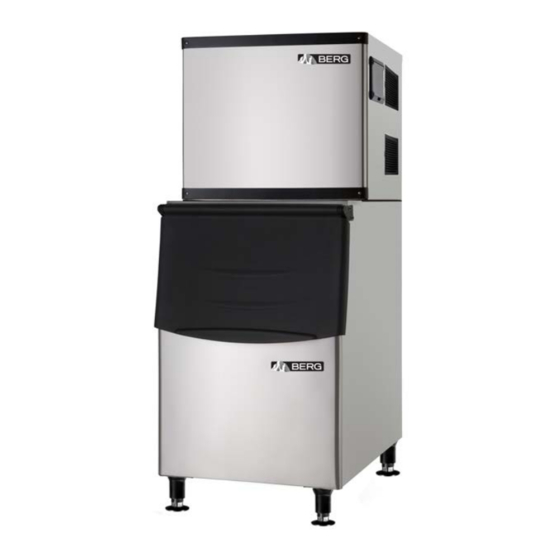

Modular Ice Machines
BIM-350F
BIM-350H
BIM-500F
BIM-500H
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BERG BIM-350F
Summary of Contents for BERG BIM-350F
- Page 1 INSTRUCTION MANUAL Modular Ice Machines BIM-350F BERG MOD HD 350 LB ICE MACH FC BIM-350H BERG MOD HD 350 LB ICE MACH HC BIM-500F BERG MOD HD 500 LB ICE MACH FC BIM-500H BERG MOD HD 500 LB ICE MACH HC This manual contains important information regarding your unit.
- Page 2 WARNINGS • This appliance is equipped with a three prong grounding plug for your protection against shock. • Do not immerse unit, cord or plug in liquid at any time. • Unplug cord from outlet when not in use and before cleaning. •...
- Page 3 CONTROL PANEL OPERATION • STARTING – After the power and water supply have been properly connected, switch the machine on by pressing the ON/OFF button on the display panel • PRE- COOLING – The inlet valve will automatically open once the machine is turned on. The evaporator will pre-cool for 30 seconds before water pumping will start.
- Page 4 MAINTENANCE This ice machine requires the following types of maintenance: • Remove the build up of mineral scale from the ice machine’s water and internal sensor system • Sanitize all parts of the ice machine’s water system and storage bin •...
- Page 5 EXTERNAL WATER FILTER The external water filter must be checked regularly to ensure proper filtration and water pressure. Change cartridges every 6 months or if water pressure drops low when the ice machine is filling with water. TROUBLESHOOTING Problem Symptoms Solutions Ice machine not starting up No power supply...
- Page 6 Exploded Diagram for BIM-350F/BIM-350H Ref. Part No. Name Specification Number 03.005.041 microchannel condenser-329A HX-L116-99-SHCL005 EBMPAPST M4Q045-DA11-04 70/18W 115VAC 03.006.028 fan-EBM Φ254 34°, hair dryer, aluminum 03.007.008 Fan blades 04.010.008 Condensation sensor Stainless steel probe 1000mm 04.003.008 inlet valve 110~120V 4W 50/60HZ Blue 1266220 1.2L 04.002.006...
- Page 7 Exploded Diagram for BIM-500F/BIM-500H Ref. Part No. Name Specification Number 03.005.042 microchannel condenser-529A HX-L116-99-SHCL006 03.006.021 Axial Fan YWF-4E-300B hair dryer, 110V~120V 60HZ 04.010.008 Condensation sensor Stainless steel probe 1000mm 04.003.008 inlet valve 110~120V 4W 50/60HZ Blue 1266220 1.2L DSVP12N-2LSX-120A 110V 60HZ 12W 04.002.006 drain valve 74017-82...
- Page 8 ONE YEAR WARRANTY - PARTS AND LABOR BERG warrants to the original purchaser of this unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of one (1) year from the date of original installation or 1 year after shipment date, whichever occurs first.
