Spear & Jackson S3125PT Instruction Manual

Spear & Jackson S3125PT Instruction Manual

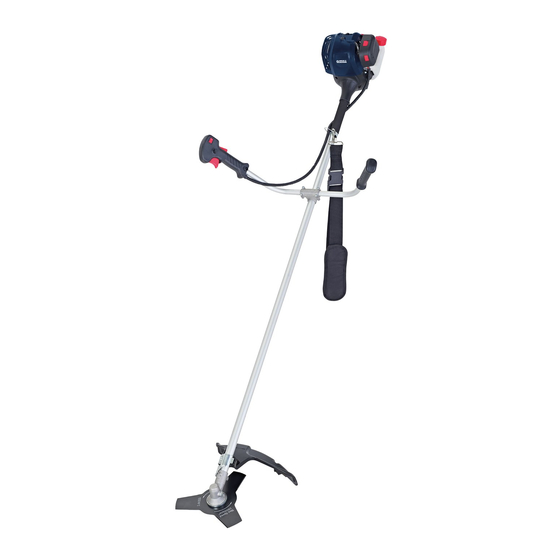

31cc 25cm 4 stroke petrol brush cutter

Advertisement

设计人员:
Http:www.yattool.com
名  称:
说明书
客  户:
CH171
8458-9022004-011
料  号:
A5(148.5x210mm)
尺  寸:
材  质:
80G双胶纸
QQ:
张妹珍
99739279
颜  色:
页  数:
备注:
制作日期:
2018-1-26
彩色印刷(PT 282U)
8 张A4纸
运用软件:
Adobe Acrobat 7 Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3125PT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spear & Jackson S3125PT

  • Page 1 设计人员: 制作日期: 运用软件: 张妹珍 99739279 2018-1-26 Adobe Acrobat 7 Pro Http:www.yattool.com 名  称: 颜  色: 说明书 彩色印刷(PT 282U) 页  数: 客  户: CH171 8 张A4纸 8458-9022004-011 料  号: A5(148.5x210mm) 备注: 尺  寸: 材  质: 80G双胶纸...
  • Page 2 INSTRUCTION MANUAL 31cc 25cm 4 Stroke Petrol Brush Cutter S3125PT YT9022-08 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2070 These instructions contain important information that will help you get the best from your petrol brush cutter, ensuring it is assembled correctly and safely.
  • Page 3 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance,comfort and durability firmly in mind,which has earned Spear &...
  • Page 4: Table Of Contents

    CONTENTS SAFETY INFORMATION......................04 Description of symbols................04 General safety warnings................06 Work area safety..................07 Personal safety ...................07 Operating safety .....................08 Garden tool use and care ................10 Intended use ....................11 IN THE BOX........................14 Part list......................14 ASSEMBLE.......................15 Unpacking..................15 Cutting blade assembly................15 Cutting head guard assembly..............16 U handle assembly................16 Harness assembly.................17 PREPARE......................
  • Page 5: Safety Information

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine. Description of symbols Some of the following symbols may be used on your tool.Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident.
  • Page 6 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine. DESCRIPTION OF SYMBOLS Some of the following symbols may be used on your tool.Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident.
  • Page 7: General Safety Warnings

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL GARDEN TOOLS SAFETY WARNINGS General safety warnings monoxide,a colorless, WARNING Read all odorless, and extremely safety warnings and all dangerous gas, can instructions. cause Unconsciousness Failure to follow the or death.
  • Page 8: Work Area Safety

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine sandals, or go barefoot. ignite the dust or fumes. Do not wear jewelry of c) Keep children and any kind. bystanders away while operating a garden tool. Heavy protective clothing Distractions can cause may increase operator...
  • Page 9 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine shoes, hard hat, or e) Do not over reach. hearing protection used Keep proper footing and for appropriate conditions balance at all times. This will reduce personal enables better control injuries.
  • Page 10: Operating Safety

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Operating safety blade in the event of a This product is equipped blade thrust or other with a spark arrestor; unexpected reaction of the however, other user saw.
  • Page 11: Garden Tool Use And Care

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Always stop the engine and adjustments, changing remove the spark plug wire accessories, or toring before making any power tools.Such adjustments or repairs preventive safety except for carburetor measures reduce the risk adjustments.
  • Page 12: Intended Use

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine garden tool repaired idle during normal use. before use. Many The cutting attachment accidents are caused by may rotate at idle during poorly maintained garden carburetor adjustments. tools.
  • Page 13 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine and long trousers. Do not while people, especially operate the product when children, or pets are nearby. barefoot or wearing open Only use the product in sandals. Wear protective daylight or good artificial glasses or goggles.
  • Page 14 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine device. turning the product on. To reduce fire hazards, keep Always ensure that air vents the engine and silencer are kept clear of debris. free of debris, leaves and excessive lubricant.
  • Page 15: In The Box

    IN THE BOX Parts List 1. Fuel tank cap 11.a U handle(left part) 2. Primer bulb 11.b U handle(right part) 3. Air filter 12. Throttle lockout 4. Spark plug 13. Throttle trigger 5. Muffler 14. On/off switch 6. Oil tank cap 15.
  • Page 16: Assemble

    ASSEMBLE 1. Unpacking a) Unpack all parts and lay them on a flat, stable surface. b) Remove all packing materials and shipping devices if applicable. c) Make sure the delivery contents are complete and free of any damage. d) Ensure that you have all the accessories and tools needed for assembly and operation.
  • Page 17: Cutting Head Guard Assembly

    ASSEMBLE 3. Cutting head guard assembly a) Remove the screw from Cutting head guard. b) Insert the left tab into the slot on the Cutting head guard. c) Align the screw hole in the mounting bracket with the screw hole into the Cutting head guard.
  • Page 18: Harness Assembly

    ASSEMBLE 5. Harness assembly Connect the latch on the shoulder harness to the strap hanger. Adjust the strap to a comfortable position. AFTER SALES SUPPORT 0345 605 2070...
  • Page 19: Prepare

    PREPARE 1. Add engine lubricant oil: Initial use 1) Set the unit on a flat surface. 2) Remove the oil cap from the machine 3) Pour 60ml 4 stroke garden engine oil into lubricant bottle. 4) Add lubricant oil from the bottle into the lubricant oil tank.
  • Page 20 PREPARE WARNING: Add fuel in a clean, well- ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate. Remove the fuel cap slowly to avoid injury from fuel spray.
  • Page 21: Operate

    OPERATE 1.Switch on Brush cutter should be on a flat, bare surface for starting. To start a cold engine: Press the button to “I” position. Note:checking for loose fasteners, fuel leaks and damaged parts, such as cracks in the cutting attachment. 2.
  • Page 22: Pull The Starter Grip

    OPERATE 4. Pull the recoil start grip Pull the recoil start grip until resistance is detected. Rapidly pull 3 to 5 times or until you hear engine turn over or begin to start. 5. Hold the machine Keep your body straight to work with double hands ,to control U handle with double hands correctly,and keep your feet away from Safety guard zone,to avoid accidents.
  • Page 23: Squeeze Throttle To Start

    OPERATE 6. Squeeze throttle to start cutting Squeeze throttle 1,then press 2 to provide fuel to engine and use for intended task. 7. Cutting work Control U handle with two hands, Keep a firm grip with both hands while operate. Machine should be held at a comfortable position about hip height.
  • Page 24: Stop Machine

    OPERATE above the ground. • Do not over-reach; Keep all parts of your body away from the rotating cutting attachment and hot surfaces. 8. Stop engine Release the Throttle trigger and throttle lockout,then press the OFF switch “stop”. AFTER SALES SUPPORT 0345 605 2070...
  • Page 25: Maintenance

    MAINTENAINCE The correct and regular cleaning is not only important for the safe use of this product, but also extends its life span. Warning! Always switch off the engine and wait for cooling down of engine. Please remove the dust, grass etc. from machine after every application.
  • Page 26: Clean Machine Body

    MAINTENAINCE 1. Clean machine body Clean the machine U handle safety guard and handle pole,some covers after Working,care some necessary parts with clean cloth,extend the life of product. 2. Check engine lubricant level before each use: 1) Separate the attachment from the power head.
  • Page 27: Change Engine Lubricant Oil

    MAINTENAINCE 3. Change engine lubricant oil WARNING!Old engine oil is considered special waste and has to be disposed a c c o rd i n g t o y o u r l o c a l e n v i ro n m e n t protection regulation.
  • Page 28: Clean Cutting Blade

    MAINTENAINCE housing, then push the cover until it locks securely in the place.NOTE: Make sure the filter is seated properly inside the cover. Installing the filter incorrectly will allow dirt to enter the engine, causing rapid engine wear. If the nylon filter element is lost, it should be reinstalled by contacting customer support.
  • Page 29 MAINTENAINCE Short-term Storage (1-2 weeks) Store the unit in a horizontal position. If not possible, store the unit vertically with the engine at the top. Long-term Storage 1. Remove the fuel cap, tip the unit and drain the fuel into an approved container. Reinstall the fuel cap.
  • Page 30: Technicial Data

    TECHNICAL DATA YT9022-08 Product model Engine model 4S310 Engine type 4-Stoke, air-cooled Engine displacement 31cm Engine power 0.8kW Engine maximum speed at rated power 7000/min Fuel tank volume 280cm Engine oil type 4 stroke garden engine SAE- 10W 30 Engine oil tank volume 60cm³...
  • Page 31: Troubleshooting

    TROUBLESHOOTING In the case of all other types of technical faults, please contact helpline 0345 605 2070 or local service center. Fault Possible Cause Solution Engine will not start No spark. Clean or replace spark plug. Reset No fuel. spark plug gap.Refer to Spark Plug Engine is flooded.
  • Page 32: Warranty

    WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2070, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
