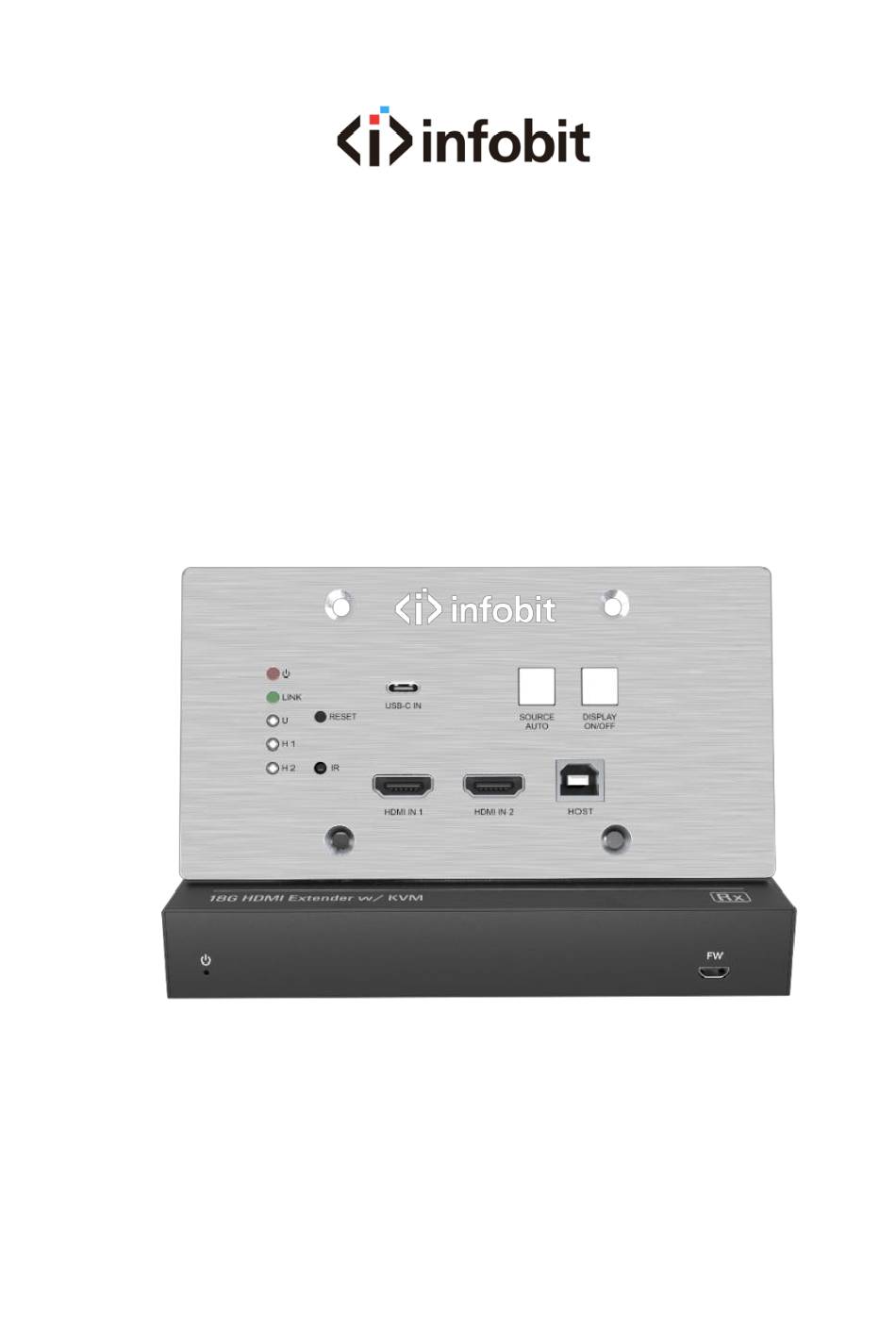

  • Page 1 WP301-Kit-EU 3x1 Wallplate Transmitter Switcher Kit User Manual All Rights Reserved Version: WP301-KIT-EU_2021V1.0...
  • Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 4: Table Of Contents

    7.2.1 Device Control..................12 7.2.2 Source Switching ................... 13 7.2.3 CEC/RS232/IR Function ................ 13 7.2.4 EDID Management................. 15 7.2.5 HDCP Mode ................... 16 7.2.6 Third-party Device Control ..............17 8. Button User-defined....................18 9. Firmware Upgrade ..................... 20 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 5: Product Introduction

    3x1 Wallplate Transmitter Switcher Kit 1. Product Introduction Thank you for choosing the WP301-KIT-EU 3x1 Wallplate Transmitter Switcher Kit, which consists of a wallplate transmitter switcher and a receiver. The kit is designed to switch and extend HDMI or USB-C source signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080p video by using a single CATx cable.
  • Page 6: Package List

    2x Mounting Ears with 2 Screws Receiver 1x 3-pin Terminal Block 1x Power Adaptor (24V DC 1.25A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the components is found. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 7: Specification

    20W (Max, add extra HDBaseT receiver) Operation Temperature -5 to +55℃ (+23° to +131°F) Storage Temperature -25 to +70℃ (-13° to +158°F) Relative Humidity 10% to 90% Dimension (W*H*D) 146mm x 86mm x 42mm Net Weight 240g INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 8: Receiver

    20W (Max, work with the switcher) Operation Temperature -5 to +55℃ (+23° to +131°F) Storage Temperature -25 to +70℃ (-13° to +158°F) Relative Humidity 10% to 90%, Non-condensing Dimension (W*H*D) 152mm x 23.5mm x 84mm Net Weight 300g INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 9: Panel Description

    ⑧ HDMI IN 2: Connects to the HDMI source device. ⑨ HOST: Connects to the PC, which can be controlled by KVM devices. ⑩ SOURCE AUTO: Press the button to select the next input source, or press and INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 10: Switcher Rear Panel

    ⑤ IR OUT: Connects to IR emitter to control local source device by IR pass-through. ⑥ HDBT OUT (PoC): Connects to the HDBT IN port of the receiver by a CATx cable. It supports 24V PoC to enable the switcher can be powered from receiver. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 11: Receiver Front And Rear Panel

    ⑧ DEVICES: Three type-A USB ports for USB devices connection (keyboard, mouse, etc.). The 1 and 2 ports provide 5V 500mA power for USB devices, and the port 3 provides 5V 1A power. ⑨ DC 24V: DC connector for the power adapter connection. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 12: System Connection

    Plug the IR receiver into the IR IN port in the receiver. Attach the IR receiver onto or near the display (TV) where you would point your remote control to use your TV. Display IR Control (Forwards IR) INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 13 Plug the IR receiver into the IR IN port in the switcher. Attach the IR receiver onto anywhere you would like to control it. Transmitter Receiver HDBT OUT LINK HDCP Receiver IR Emitter Projector 4K Blu-Ray Projector Remote INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 14: Button Control

    2) The DISPLAY ON/OFF button can be programmed by IR learning feature or RS232 command for compatibility with various display devices. For more details, please refer to the 7 Button User-defined. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 15: Rs232 Control

    2) If the far-end third-party device (e.g. projector) need be controlled by PC, please connect the third party device (e.g. projector) to the RS232 port of receiver. The connection diagram shown as below: Transmitter Receiver HDBT OUT LINK HDCP Projector INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 16: Rs232 Commands

    Restore factory default. <FactoryReset_True >SetReboot System reboot. <Reboot_EN >SetHelp SetAV <Switch an input AV signal to outputs >SetHelp PARAM Get the command function and usage. >SetAV Param Param = H1, H2, C H1 - HDMI1 H2 - HDMI2 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 17: Source Switching

    <AutoSwitch True Dis - Disable <AutoSwitch False <AutoSwitch True >GetAutoSwitch Get the source switching mode. 7.2.3 CEC/RS232/IR Function Command Example Command Description and Feedback Enable/disable the function of automatically >SetAutoCec PARAM >SetAutoCec EN sending CEC commands. INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 18 <AutoIR True automatically sending IR signal. Power on/off display device. >SetDisplayOn EN (Simultaneously send CEC and RS232 >SetDisplayOn Dis commands). >SetDisplayOn PARAM PARAM = EN, Dis <DisplayOn True EN - ON <DisplayOn False Dis - OFF INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 19: Edid Management

    RS232 commands can be used to set the EDID to a fixed value to ensure the compatibility in video resolution. Command Example Command Description and Feedback Set EDID. >SetInPortEdid 0 >SetInPortEdid PARAM PARAM = 0 ~ 9 <InPortEdid 0 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 20: Hdcp Mode

    Feedback Set the HDCP mode of HDMI output. >SetHdcpHdmiOutput >SetHdcpHdmiOutput PARAM = 1 ~ 2 PARAM 1 - Active (Default) <HdcpHdmiOutput 1 2 - HDCP 1.4 >GetHdcpHdmiOutput Get the HDCP mode of HDMI output. <HdcpHdmiOutput 1 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 21: Third-Party Device Control

    PARAM = 1~7. Represents the baud rate of the third-party device. PARAM Baud Rate >SetPowerOnSendHex_ 115200 <Baudrate: 9600 PARAM:XX XX 57600 Display on to send 38400 HEX:30 31 19200 9600 4800 2400 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 22: Button User-Defined

    PARAM = 1~7. Baud rate of the third-party <Baudrate: 9600 PARAM:XXXX device. Display on to 1 - 115200 5 - 9600 send:1234567 2 - 57600 6 - 4800 3 - 38400 7 - 2400 4 - 19200 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 23 PARAM = 1~7. Baud rate of the third-party PARAM:XX XX device. <Baudrate: 9600 1 - 115200 5 - 9600 Display off to send 2 - 57600 6 - 4800 HEX:41 42 43 44 3 - 38400 7 - 2400 4 - 19200 INFOBIT AV www.infobitav.com info@infobitav.com...
  • Page 24: Firmware Upgrade

    (.bin) should be confirmed again, and then follow the above steps to update again. 7) Remove the USB cable and reboot the switcher or receiver after firmware upgrade. INFOBIT AV www.infobitav.com info@infobitav.com...
