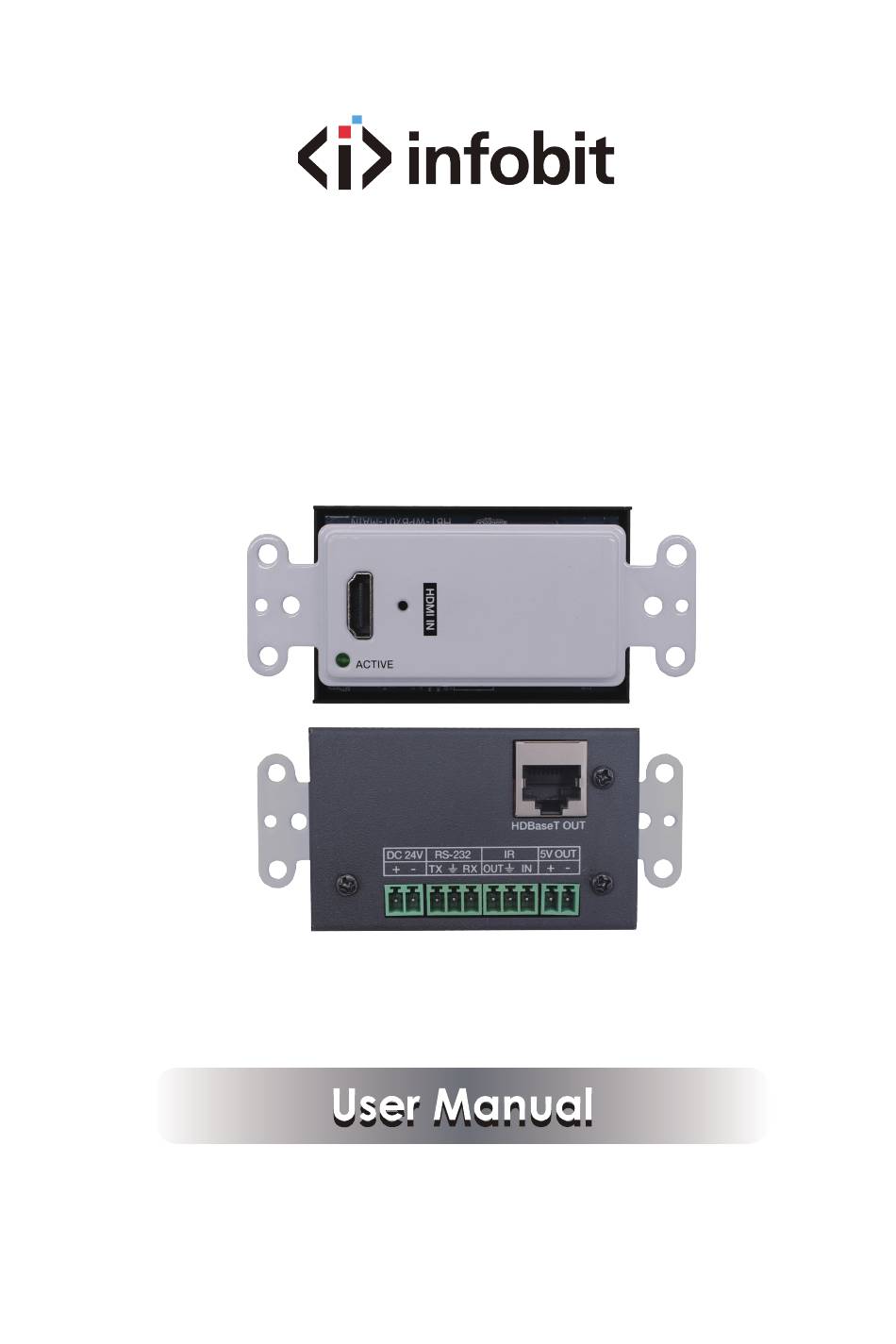

- Page 1 HDBaseT Wall-plate Transmitter (1-Gang US Decora) Model: WP70-T VER 2.1...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The HDBaseT Wall-plate Transmitter can transmit up to 4K2K@60 (4:4 :4) video over a single CAT6/6a/7 cable up to 130ft/40m or 1080p up to 230ft/70m. It supports Power over Cable(PoC) functionality that allows for greater flexibility in installations. It also supports two-way IR and RS-232. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 1.4 and HDCP 2.2 Video Bandwidth 18 Gbps up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, Video Resolution 1080P@120Hz, and 1080P 3D@60Hz Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby HDMI Audio Formats Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function description Connect to HDMI source devices such as Blu-ray or HDMI IN PS4 player. ACTIVE Green LED input signal indicator. 5.2 Rear Panel Number Name Function description HDBaseT output port. Connect HDBaseT receiver HDBaseT OUT with an UTP cable. - Page 6 ※ Description 1 POC (Power over Cable) Application Example CAT5e/6/7 CAT5e/6/7 ※ Description 2 Bidirectional Infrared control Application Example HDMI Cable HDMI Cable UTP Cable TX 2 DVD Remote ※ Description 3 Bidirectional RS-232 control Application Example...
-
Page 7: Application Example
6. Application Example...
