morse 400Z-60 Operator's Manual

The Specialist In Drum Handling Equipment
Contents
Receiving Procedures. . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Assembly Instructions. . . . . . . . . . . . 5
Operating Instructions. . . . . . . . . . . . . . . . . . .
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts Lists and Diagrams. . . . . . . . . . . .

Receiving Procedures

Every Morse drum handler is inspected prior to shipping.
However, damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the BILL OF
LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock
for this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of
any concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock
result in additional freight charges. Residential delivery fees,
inside delivery fees, re-delivery charges, and lift gate services
will be added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects
in workmanship or materials for TWO YEARS when used
properly within its rated capacity. Warranty does not cover
wear from normal use or damage from accident or abuse.
Motors and other purchased parts carry the warranties of their
manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
MORSE Mfg. Co., Inc.
Phone: (315) 437-8475
Copyright 2010 - Morse Mfg. Co., Inc.
•
727 West Manlius Street
• •
Fax: (315) 437-1029
Form PL400Z-60 (0604-0110) (Updated 04/2010)
MODEL 400Z-60

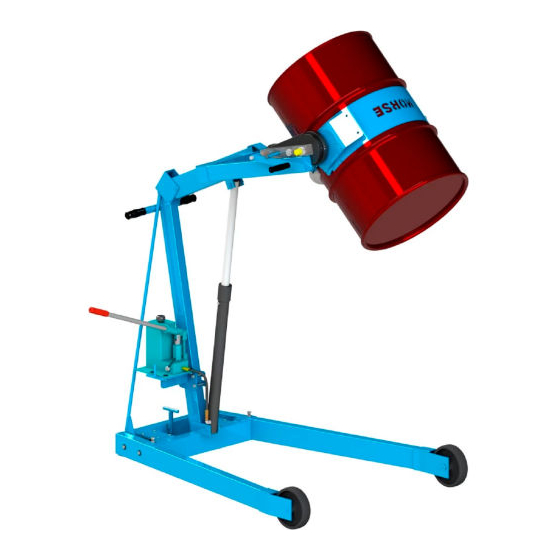

Hydra-Lift, 60", Manual Lift, Manual Tilt
Operator's Manual
Page
for Morse Hydra-Lift Drum Karrier
1
Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
6
8 - 9
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
any modifications, unauthorized repairs or parts substitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment
is engineered for safety and efficiency, a high degree of
responsibility must be placed upon the machine operator to
follow safe practices, based primarily on common sense, upon
which true safety depends.
Failure to follow the safety precautions in this manual can
result in personal injury or property damage. Observe the same
precautions as with similar machinery where carelessness
in operating or maintenance is hazardous to personnel.
Carefully read the safety precautions below and throughout
this manual.
•
P.O. Box 518
Email: service@MorseDrum.com
•
East Syracuse, NY 13057-0518
•
Website: www.MorseDrum.com
Page 1
