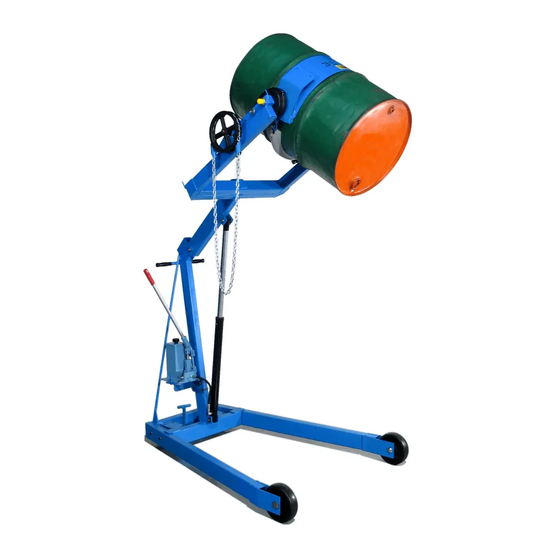

morse Hydra-Lift 400A-60 Operator's Manual

The Specialist In Drum Handling Equipment
CONTENTS
Receiving Procedures. . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Assembly Instructions. . . . . . . . . . . . 5
Operating Instructions. . . . . . . . . . . . . . . . . . .
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts Lists and Diagrams. . . . . . . . . . .

Receiving Procedures

Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged freight,
always sign noting the damage on the BILL OF LADING.
• Document the damage and have the truck driver sign. We recommend
keeping a digital camera at your receiving dock for this purpose.
• Open packages expeditiously to check the condition of the goods.
There is only a 24 hour window to notify the carrier of any concealed
damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING COM-
PANY! Then you may contact Morse for assistance with your freight
claim.
• Morse Manufacturing will not be held responsible for any damaged
freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock result in
additional freight charges. Residential delivery fees, inside delivery
fees, re-delivery charges, and lift gate services will be added by the
truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for TWO YEARS when used properly within
its rated capacity. Warranty does not cover wear from normal use or
damage from accident or abuse. Motors and other purchased parts
carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a return au-
thorization number, and for return freight advice. Return freight must
be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for any
modifications, unauthorized repairs or parts substitution.
MORSE Mfg. Co., Inc.
Phone: (315) 437-8475
Copyright 2009 - Morse Mfg. Co., Inc.
•
727 West Manlius Street
•
Fax: (315) 437-1029
Form PL400-60 (0604-0309) (Updated 10/2009)
Model 400A-60
Hydra-Lift, 60", Manual Lift, Manual Tilt
Operator's Manual
Page
for Morse Hydra-Lift Drum Karrier
1
Model 400A-60
Serial Number 0604 to 0309 (MMYY)
6
8 - 11
Safety Information
While Morse Manufacturing Co. drum handling equipment is engi-
neered for safety and efficiency, a high degree of responsibility must
be placed upon the machine operator to follow safe practices, based
primarily on common sense, upon which true safety depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions as
with similar machinery where carelessness in operating or maintenance
is hazardous to personnel. Carefully read the safety precautions below
and throughout this manual.
•
P.O. Box 518
•
Email: service@morsedrum.com
•
East Syracuse, NY 13057-0518
•
Website: www.morsedrum.com
Page 1
