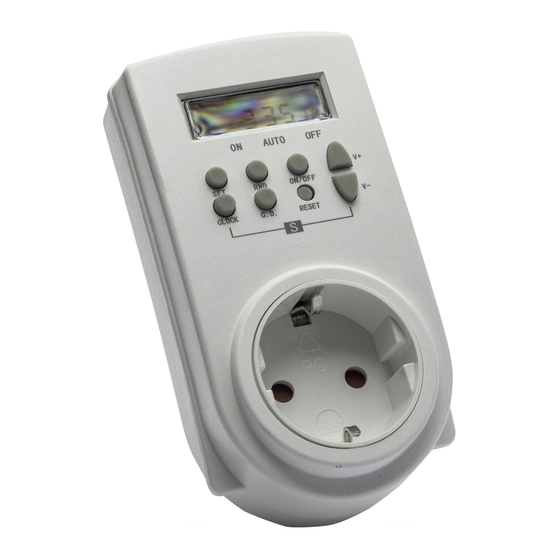

Programmable digital timer

Advertisement

Quick Links

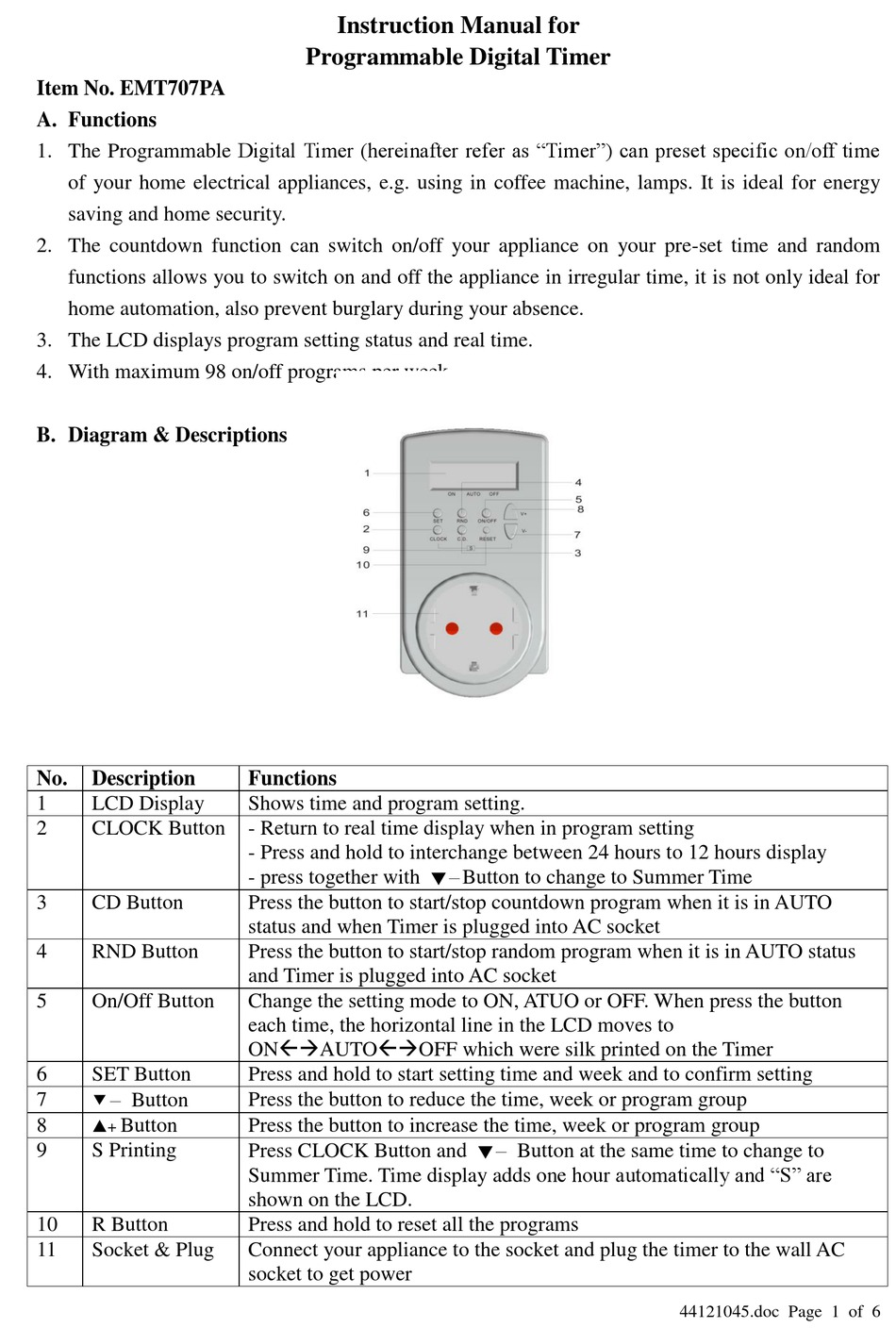

Item No. EMT707PA
A. Functions
1. The Programmable Digital Timer (hereinafter refer as "Timer") can preset specific on/off time
of your home electrical appliances, e.g. using in coffee machine, lamps. It is ideal for energy
saving and home security.
2. The countdown function can switch on/off your appliance on your pre-set time and random
functions allows you to switch on and off the appliance in irregular time, it is not only ideal for
home automation, also prevent burglary during your absence.
3. The LCD displays program setting status and real time.
4. With maximum 98 on/off programs per week .
B. Diagram & Descriptions
No.
Description
1
LCD Display
2
CLOCK Button
3
CD Button
4
RND Button
5
On/Off Button
6
SET Button
7
Button
▼-
8
Button
▲+
9
S Printing
10
R Button
11
Socket & Plug
Instruction Manual for
Programmable Digital Timer

Functions

Shows time and program setting.
- Return to real time display when in program setting
- Press and hold to interchange between 24 hours to 12 hours display
- press together with
Press the button to start/stop countdown program when it is in AUTO
status and when Timer is plugged into AC socket
Press the button to start/stop random program when it is in AUTO status
and Timer is plugged into AC socket
Change the setting mode to ON, ATUO or OFF. When press the button
each time, the horizontal line in the LCD moves to
ONAUTOOFF which were silk printed on the Timer
Press and hold to start setting time and week and to confirm setting
Press the button to reduce the time, week or program group
Press the button to increase the time, week or program group
Press CLOCK Button and
Summer Time. Time display adds one hour automatically and "S" are
shown on the LCD.
Press and hold to reset all the programs
Connect your appliance to the socket and plug the timer to the wall AC
socket to get power
Button to change to Summer Time
▼-
Button at the same time to change to
▼-
44121045.doc Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMT707PA and is the answer not in the manual?

Questions and answers

Summary of Contents for SMJ EMT707PA

  • Page 1 Instruction Manual for Programmable Digital Timer Item No. EMT707PA A. Functions 1. The Programmable Digital Timer (hereinafter refer as “Timer”) can preset specific on/off time of your home electrical appliances, e.g. using in coffee machine, lamps. It is ideal for energy saving and home security.
  • Page 2 C. Time Display There are two different kinds of time displays: 1. 12-hour display: the digital number is from 11:59 to 12:00 with AM or PM shown on the LCD 2. 24-hour display: the digital number is from 00:00 to 23:59, no AM or PM is shown on the LCD 3.
  • Page 3 1.2 “ON” indicates power on time. 1.3 “OFF” indicates power off time 2. To chose the program group and on/off status, press Button to increase the group number, ▲+ sequence as follows: 1ON1OFF …… 14ON14OFF d ON/OFF (for countdown) real time display  3.
  • Page 4 ready. Press Button to chose countdown on/off program and press SET Button to confirm ∧+ ∨- Hour display flashes after setting the on/off status, then press Button to increase or ▲+ ▼- reduce hour and press SET Button to confirm. Minute display then flashes, press Button to increase or reduce minute and press SET ▲+...
  • Page 5 H. Override/Resume Preset Program Press ON/OFF Button each time can override/resume the preset program, LCD changes the display in the following sequence: 1.ON: override the preset program and appliance remains on at all time 2.AUTO: resume the preset program, appliance will be turned on and off automatically according to the preset time 3.OFF: override the preset program and appliance remains off at all time...
  • Page 6 4. Working Temp : 0 - 55°C 5. Time Setting Interval: 1 Minute 44121045.doc Page 6 of 6...
