ITALFILE RXJR-2C Quick Start Manual

Max. Permissible Values

Supply Voltage
RF Input
GND voltage of output pins
Storage temperature
Operating temperature
Electrical characteristics at 25 °C:
Parameter Min
Supply Voltage (VDC) 12
Supply Voltage (VAC) 12
Absorbed current (receive only) -
Absorbed current (1 active channel) -
Absorbed current (2 active channels) -
Centre frequency -
Sensitivity -
Passband RF – 3dB -
Spurious aerial signals -
Switch on time -
Command implementation time -
Max. contact output VDC -
Max. contact output VAC -
Note 1: measurement carried out with 100% AM modulated signal, square wave, at frequency 1 kHz
Note 2: time period between switching on and reception of a valid sequence of data
Note 3: time period between command transmission (remote control button press) and its implementation (relay trip)
Note 4: all measurements relating to the RF parameters are valid with the 3 pin connected to a source or load impedance of 50 ohms
Guarantee: 24 months
Manufacturing and technology: 100% made in Italy
Patented product
Declaration of conformity:
The undersigned, Luigino Pellattiero, legal representative of ITALFILE srl, declares
that the receiver cod. RXJF-2C / RXJR-2C manufactured in 2010, was assembled in
compliance with the following standards:
Directive 2004/108/CE: known as Electromagnetic Compatibility directive
Directive 2002/95/CE: Known as directive RoHS
And therefore complies with current standards.
Luigino Pellattiero - Vicenza (Italy) 1-10-2011
33VAC / 35VDC
- 40 / + 100 °C
- 20 / + 70 °C
Typical Max Unit
- 30 volts
- 28 volts
11 - mA
25 - mA
36 - mA
433.92 - MHz
-105 - dBm
+- 100 - kHz
- -60 dBm
- 2.8 S
- 0.5 S
- 1A 24V Amp vdc
- 1A 120V Amp vac
+ 20 dBm
120V
Notes
-
-
-
-
-
-

PRELIMINARY

Note 1
2 channel receiver model RXJR-2C compatible with transmitter model JANE-R (red LED)
-
2 channel receiver model RXJF-2C compatible with transmitter model JANE-F (blue LED)
-
Note 2
FEATURES
Note 3
• 2 channel receiver with 2 relays equipped with OOK / ASK super heterodyne receiver
-
• microcontroller with decoding functions
-
• self-learning remote controls
• digital noise reduction filter
• independent mode switching for each channel
• SAW filter to suppress noise outside the band
• power supply with noise reduction filters and surge protection on power lines

APPLICATIONS

Remote control for automation, light switches, blinds, curtains etc.
All programming and configuration of channels carried out using the single
button on the circuit board. The colour of the LED matches the channel:
Green LED: all operations related to channel 1
Red LED: all operations related to channel 2
Orange LED: if both channels are turned on

STORING A JANE on the RX RECEIVER

CHANNEL 1
• Press the button once and release: the green LED lights up
• within 5 seconds make a transmission by pressing the JANE button to be associated with channel 1
• the green LED goes off for 0.5 seconds to confirm learning
• after 5 seconds the green LED goes off indicating the end of the learning phase
CHANNEL 2
• Press the button twice and release: the red LED lights up
• within 5 seconds make a transmission by pressing the JANE button to be associated with channel 1
• the red LED goes off for 0.5 seconds to confirm learning
• after 5 seconds the red LED goes off indicating the end of the learning phase

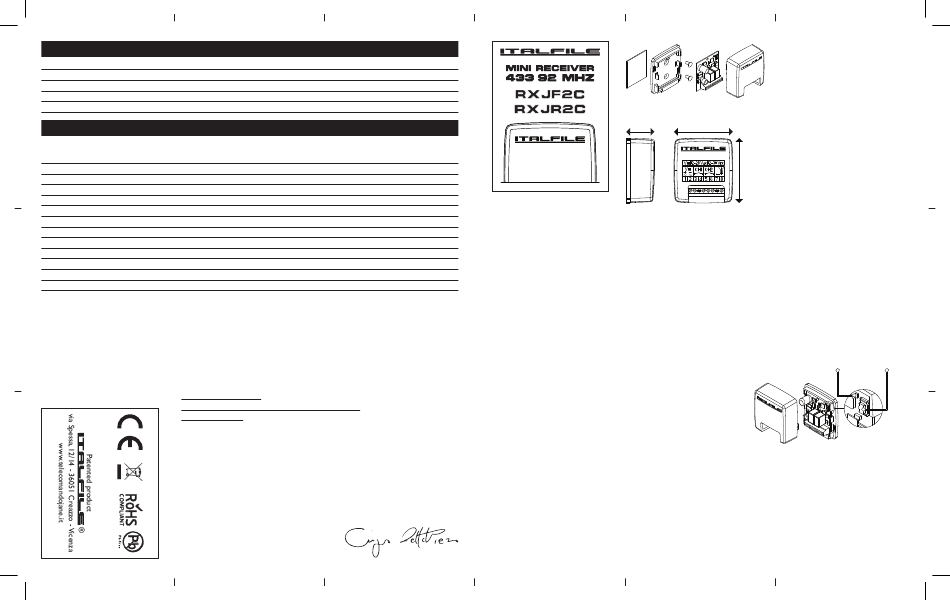

Each receiver consists of:

1. Double-sided adhesive support
2. Back plate
3
3. Two stainless steel screws
4. Electronic circuit board
1 2 4 5
5. Front shell

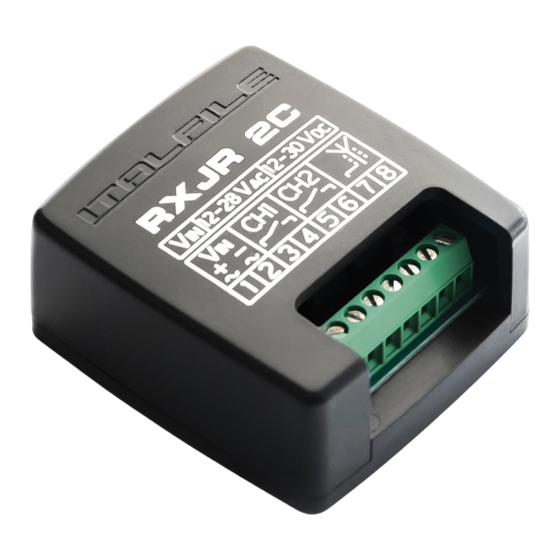

Signals on the Terminals:

22 mm 16.2 mm
1. power supply input (positive supply)
2. earth (negative supply)
3. common relay output 1
4. contact n.o. output 1
51 mm 5. common relay output 2
6. contact n.o. output 2
7. aerial shielding
8. aerial input
Two-colour LED Button
