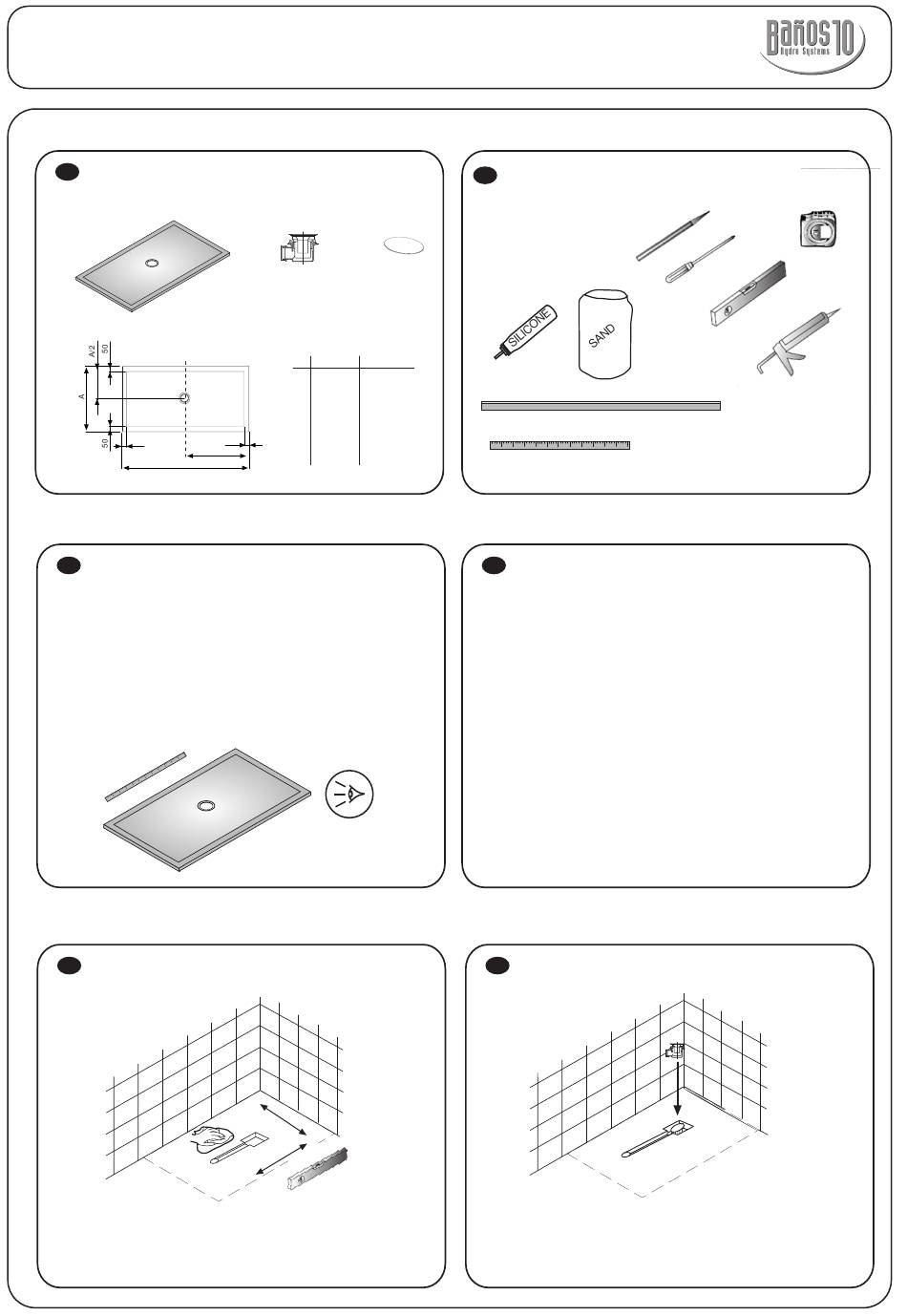

Baños 10 COLUMBIA Installation Manual

Installation manual COLUMBIA
ELEMENTS SUPPLIED
1
1
50
50
B/2
B
IMPORTANT-READ BEFORE INSTALLATION:
3
- Check the contents of the product before proceeding to install
(measured, color texture finish, etc).
- Baños 10 is not responsible for the costs of changing the
shower tray when the product is already installed.
- If there is any defect or malfunction on the shower tray it must
be communicated to the company within 7 days.
- Baños 10 is not responsible for any problems there may be due
to improper installation of the shower-tray .
INSTALLATION / PLACE:
4.1
- The surface when the shower tray will be located has to be
completely leveled, firm, dry and clean.
shower tray
2
3
H = 35 mm.
A B
1) 700 1000
2) 700 1200
3) 700
1400
4) 700 1600
5) 700 1700
6) 800 1000
7) 800
1200
8) 800 1400
9) 800 1600
10) 800 1700
ELEMENTS REQUIRED
2
INSTALLATION / NOTES:
4.0
- The installation instructions are based on normal use and
conditions.
- These recommendations have been prepared to facilitate and
explain how to install the shower tray. To proceed to install, be
carefully at all times to avoid damage to the shower tray.
- Baños 10 recommends the installation thereof with an installer
Baños 10 Technical Service.
- DO NOT HIT THE SHOWER TRAY. It is a fragile product and
can be damaged.
INSTALLATION
4.2
- Connect the drain pipe´s shower tray with the drain pipe´s
house.
