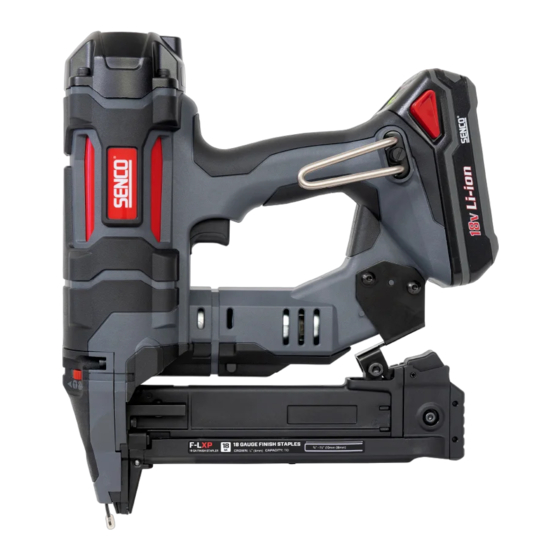

- Page 1 F-LXP CORDLESS STAPLER Operating Instructions IMPORTANT: Read before use. KYOCERA-SENCO Industrial Tools, Inc. NFD810YENG • Issued April 30, 2021 8450 Broadwell Road Cincinnati, OH 45244 1-800-543-4596 www.senco.com © 2021 by KYOCERA-SENCO Industrial Tools, Inc.
-
Page 2: Table Of Contents
Table of Contents Symbols .............................3 General Power Tool Safety Warnings ..................4 Work Area Safety ........................4 Electrical Safety ........................4 Personal Safety ........................4 Power Tool Use and Care .......................5 Battery Tool Use and Care ......................5 Service ...........................6 Stapler Safety Warnings ......................6 Additional Tool Safety Warnings ....................7 Safety Warnings for Charger and Battery .................9 Functional Description ......................11 Tool Operation .........................12... -
Page 3: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 4: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... -
Page 5: Power Tool Use And Care
GENERAL POWER TOOL SAFETY WARNINGS 15. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. 16. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. -
Page 6: Service
GENERAL POWER TOOL SAFETY WARNINGS 32. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. SERVICE 33. -
Page 7: Additional Tool Safety Warnings
Deliberate tampering with the drive assembly may result in the release of the driver. Any repair or upgrade requiring access to the pressure chamber may be handled by an authorized Senco dealer or service center. Disconnect tool from battery when: • Outside of the operator’s supervision or control. - Page 8 Keep hands and other body parts away from the area shown in the circle to avoid possible injury during operation. Do not use tool without Danger Label on tool. If label is missing, damaged or unreadable, contact your SENCO representative to obtain a new label at no cost.
-
Page 9: Safety Warnings For Charger And Battery
This manual contains important safety and operating instructions for SENCO battery charger VB0156 (US). Before using SENCO battery charger VB0156 (US), read all instructions and cautionary markings on battery charger and battery. Do not expose charger to water, rain, or snow. - Page 10 BATTERY AND CHARGER SAFETY WARNINGS Do not disassemble charger or battery cartridge; take it to a SENCO Authorized Service Center when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning.
-
Page 11: Functional Description
Functional Operation Removeable Cap Belt Hook Battery Trigger Magazine Pressure Release Port Release *For authorized service center use only. Depth of Drive Adjustment Workpiece Contact Grasping Surface ON/OFF/Mode Selector Magazine Latch... -
Page 12: Tool Operation
TOOL OPERATION LOADING THE TOOL: Open magazine via rear latch. Insert strip of staples. • Use only genuine SENCO fasteners (see Fastener Specifications). • Do not load with workpiece contact (safety element) or trigger depressed. Close magazine. UNLOADING THE TOOL: Open magazine via rear latch. - Page 13 TOOL OPERATION Sequential Indicator LED ON-Solid Pressing the side of the selector switch toward the T symbol (as shown) for 0.5 sec. will turn the tool on in sequential mode. This is indicated by the solid green LED of the selector switch.
-
Page 14: Warning Light
TOOL OPERATION This tool is equipped with an indicator light at the ON/OFF/MODE switch. See page 14 for detailed instructions. Note: When the tool is in the sequential mode, a fastener cannot be driven by pulling the trigger before activating the work piece contact element. If the workpiece contact is activated for more than 10 seconds, the workpiece contact must be released to start over. -
Page 15: Time-Out / Lockout
TOOL OPERATION This tool is equipped with an electronic “Time-Out” feature. This tool will temporarily be disabled under any of the following conditions: 1. Workpiece contact element is depressed against the work piece, but the trigger is not pressed within approximately 10 seconds. 2. -
Page 16: Fastener Jam
TOOL OPERATION Whenever possible, hold the tool at a right angle to the work surface. Always turn the tool off before storing. As an added protection feature, the tool will Indicator LED ON-Flashing automatically turn off 34 minutes after the last activation. If a fastener jam occurs, the red light at the mode selector switch will flash red. -
Page 17: Battery Charging
TOOL OPERATION TO CHARGE BATTERY Red and green light flashing indicates defective battery pack. Return battery pack to your nearest SENCO Authorized Service Center for inspection or replacement. Authorized Service Solid red indicates that the battery is charging. Center When your battery pack becomes 80% charged, the red light will stay on and the green light will flash. -
Page 18: Battery Disposal
Accessories SENCO offers a full line of accessories for your SENCO tools, including: • Battery • Belt Hook • Battery Charger • Safety Glasses For more information or a complete illustrated catalogue of SENCO accessories, ask your representative or www.senco.com. -
Page 19: Fastener Specifications
Fastener Specifications SENCO Fastener Code 1/4" 6,4 mm 1/2" 7/16 1,3 mm Min. 3/8” (9.5 mm) Max. 1-1/2” (38 mm) 1-1/8 28,5 .044" 1-1/4 1,1 mm 1-1/2 Technical Specifications F-LXP TECHNICAL SPECIFICATIONS Voltage 18 volts Li-ion Weight with Battery 6.6 lbs. (3.0 kg) Height 12.4"... -
Page 20: Troubleshooting
Remove battery, then inspect jammed. tool to assure free movement of workpiece contact element. Drive piston has failed. Return tool to authorized SENCO service representative. Workpiece contact element or Return tool to authorized SENCO trigger switches are damaged. service representative. - Page 21 • Keep your Cordless Stapler as clean and free of debris as possible. • Service your SENCO tool periodically to insure your tool is productive and helping you earn money on the job. See the service guide below for recommended service intervals.
- Page 22 REPLACEMENT OF TOOL DUE TO NATURAL DISASTER SENCO will replace any tool destroyed by an Act of God such as flood, earthquake, hurricane or other disaster resulting only from the forces of nature. Such a claim will be honoured provided that the original retail purchaser had previously submitted a completed warranty registration card for the tool, and then submits proof of ownership and an acceptable statement describing such Act of God documented by an insurance carrier, police department, or other official governmental source.
