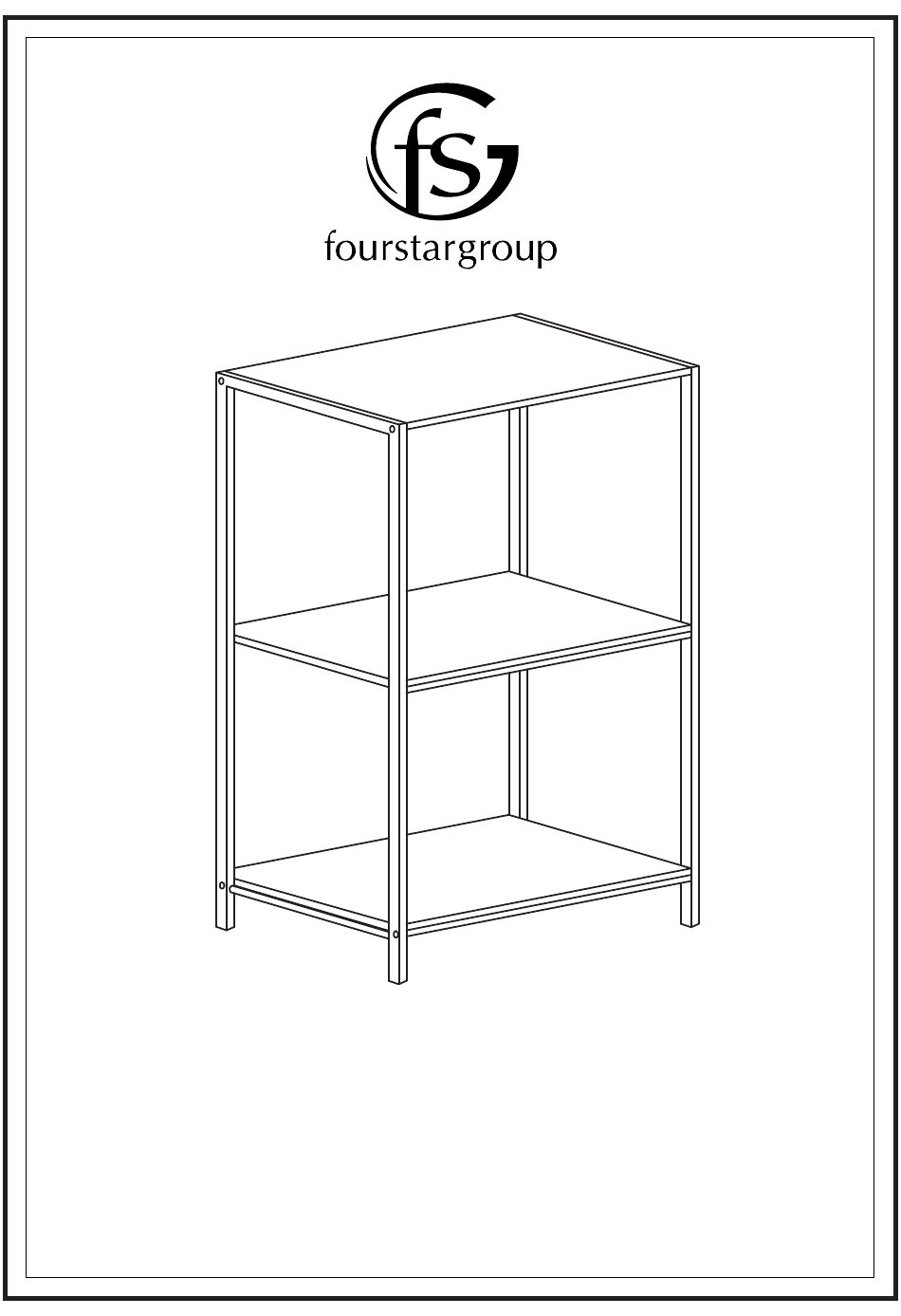

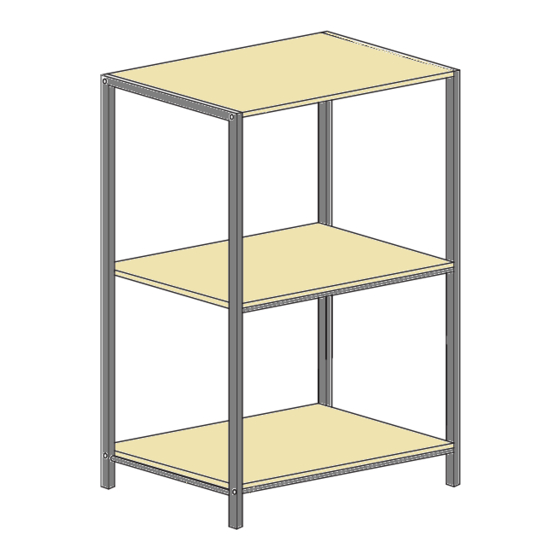

- Page 1 MODEL: 11224324VZ / MODELO: 11224324VZ BOOKSHELF ESTANTE PARA LIBROS...
- Page 2 PARTS AND HARDWARE LISTA DE PARTES Y HARDWARE HARDWARE LIST LISTA DE HARDWARE CONNECTION FRAME 2 PCS MARCO CONECTOR 2 PZS 6 PCS CONJUNCTION POLE TUBO DE UNION 6 PZS 3 PCS PANEL PANEL 3 PZS BOLT 12 PCS BOH: 30MM PERNO 12 PZS SCREW...
- Page 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSAMBLAJE CAUTION : 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLING OF THIS PRODUCT. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT FINISH. 3.
- Page 4 STEP 2 ATTACH THE FINISHED STEP1 TO PANELS (C) USING SCREWS (E) AS SHOWN. (TIGHTEN ALL BOLTS) PASO 2 ADJUNTE EL PASO TERMINADO 1 AL PANEL (C) USANDO TORNILLOS (E) COMO SE MUESTRA. (AJUSTE TODOS LOS PERNOS) 15 LBS WIGHT MAXIMUM: 45LBS (20KG) PESO MAXIMO: 45LBS (20KG) Esta unidad está...
