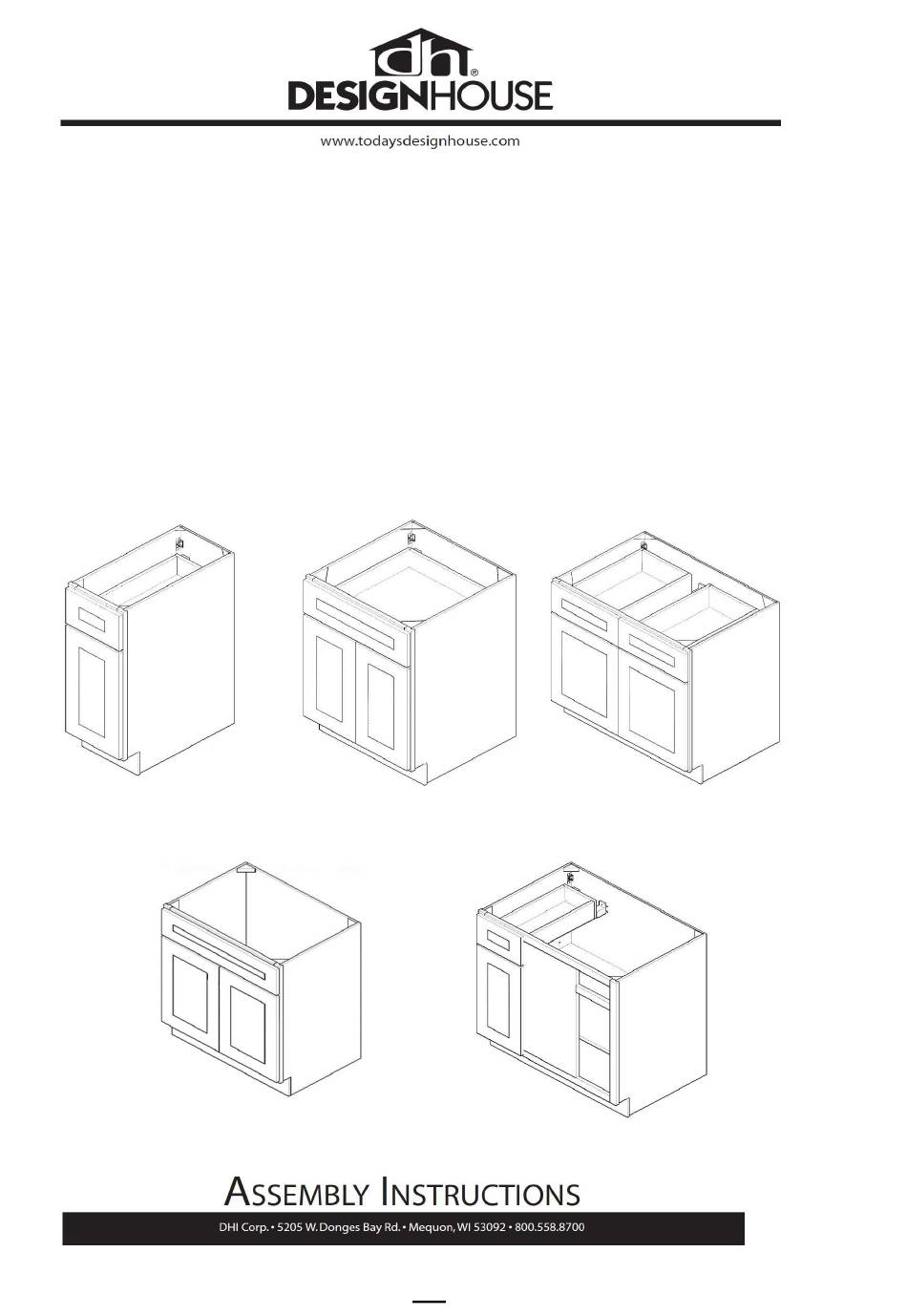

ASSEMBLY
INSTRUCTIONS
Base Cabinets
561902, 561910, 561928, 561936, 561944, 562116, 562082, 562090, 562108
561951, 561969, 561977, 561985, 561993, 562009, 562017, 562066, 562074
561316, 561324, 561332, 561340, 561357, 561365, 561373, 561381, 561399
561407, 561415, 561423, 561472, 561480, 561498, 561506, 561514, 561522
-1-
Advertisement
Table of Contents
Related Manuals for DesignHouse 561902
Summary of Contents for DesignHouse 561902
- Page 1 ASSEMBLY INSTRUCTIONS Base Cabinets 561902, 561910, 561928, 561936, 561944, 562116, 562082, 562090, 562108 561951, 561969, 561977, 561985, 561993, 562009, 562017, 562066, 562074 561316, 561324, 561332, 561340, 561357, 561365, 561373, 561381, 561399 561407, 561415, 561423, 561472, 561480, 561498, 561506, 561514, 561522...
- Page 2 Unpacking Precautions If using a sharp object to unpack the cabinet components and the packing materials, be careful to avoid scratching or damaging the cabinet components. The various packing materials may be used to protect the cabinet components during assembly. During the unpacking process, place the various components away from and to the side of the work area so that they will not be inadvertently knocked over or otherwise damaged.
- Page 3 Step 3 Using the wood glue, squeeze a small bead of glue in all grooves before assembling the cabinet sides, bottom, top and back panels. Be careful not to use too much glue, this could cause access glue to squeeze out and onto the panels, if this should happen, be sure to remove quickly.
- Page 4 Step 7 Slide the Back panel into the grooves in the side panels and attach the male clips to the back panel. There’re three clips on the left side and three clips on the right side. Each male clip will need 2 small screws(I). Step 8 Use the long screws(K), and the pre-drilled holes , to attach the back panel to the edges of the bottom panel.
- Page 5 Step 10 (Only for the following items:) 561993 & 562009 & 562017 & 562116 & 562074 561415 & 561498 & 561506 & 561514 & 561522 Secure the center supporter under the bottom panel only for the base cabinet whose width is over 36'' or wider.
- Page 6 Step 14 Align the dovetails of one of the side drawer panels with the teeth on the back drawer panel and gently seat the side drawer panel into the back drawer panel. This can be done by gently tapping the side with a rubber mallet. Step 15 Slide the drawer bottom into the grooves in the sides and back drawer panel until it is fully seated.
- Page 7 Step 17 Attached the bottom drawer glides using the flat head small screws(I) three on each side. Turn over the whole drawer Step 18 Install the drawers into the cabinet by aligning the bottom glides with the exterior glides in the cabinet.
