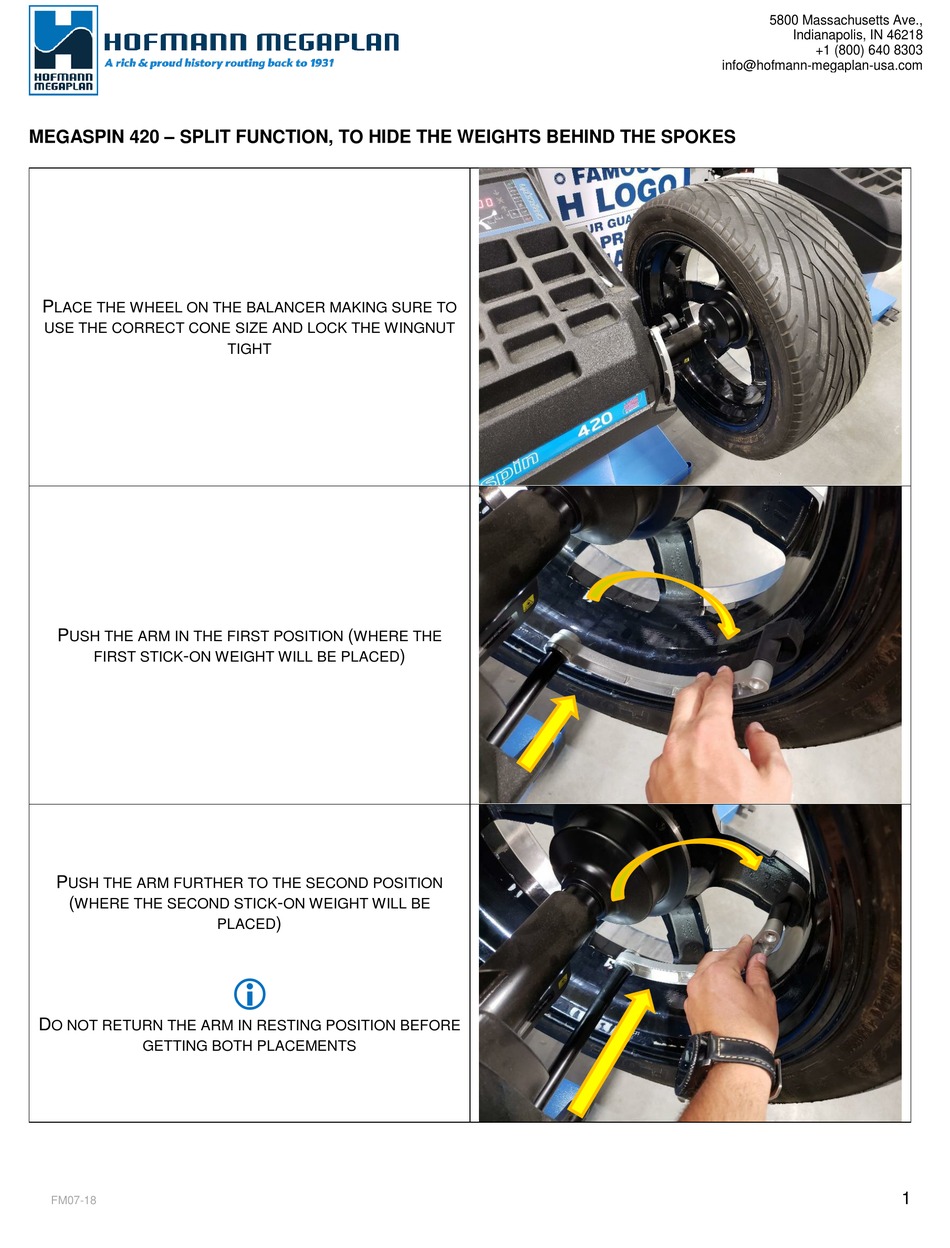

MEGASPIN 420 – SPLIT FUNCTION, TO HIDE THE WEIGHTS BEHIND THE SPOKES
P
LACE THE WHEEL ON THE BALANCER MAKING SURE TO
USE THE CORRECT CONE SIZE AND LOCK THE WINGNUT
TIGHT
P
(
USH THE ARM IN THE FIRST POSITION
WHERE THE
-
)
FIRST STICK
ON WEIGHT WILL BE PLACED
P
USH THE ARM FURTHER TO THE SECOND POSITION
(
-
WHERE THE SECOND STICK
ON WEIGHT WILL BE
)
PLACED
D
O NOT RETURN THE ARM IN RESTING POSITION BEFORE
GETTING BOTH PLACEMENTS
1
FM07-18
Advertisement
Table of Contents
Related Manuals for Hofmann Megaplan MEGASPIN 420
Summary of Contents for Hofmann Megaplan MEGASPIN 420
- Page 1 5800 Massachusetts Ave., Indianapolis, IN 46218 +1 (800) 640 8303 info@hofmann-megaplan-usa.com MEGASPIN 420 – SPLIT FUNCTION, TO HIDE THE WEIGHTS BEHIND THE SPOKES LACE THE WHEEL ON THE BALANCER MAKING SURE TO USE THE CORRECT CONE SIZE AND LOCK THE WINGNUT TIGHT...
- Page 2 5800 Massachusetts Ave., Indianapolis, IN 46218 +1 (800) 640 8303 info@hofmann-megaplan-usa.com HE MACHINE RECOGNIZES AUTOMATICALLY THAT WE ARE TRYING TO BALANCE AN ALUMINUM WHEEL RING THE ARM BACK TO ITS STARTING POSITION LOSE THE HOOD TO SPIN THE WHEEL FM07-18...
- Page 3 5800 Massachusetts Ave., Indianapolis, IN 46218 +1 (800) 640 8303 info@hofmann-megaplan-usa.com T THE END OF THE SPIN OPEN THE HOOD AND ROTATE MANUALLY THE WHEEL IN THE OUTSIDE ANGULAR POSITION RESS AND HOLD THE PLIT BUTTON ROTATE MANUALLY THE WHEEL UNTIL THE LASER IS BEHIND THE FIRST SPOKE ELEASE THE BUTTON FM07-18...
- Page 4 5800 Massachusetts Ave., Indianapolis, IN 46218 +1 (800) 640 8303 info@hofmann-megaplan-usa.com OTATE MANUALLY THE WHEEL UNTIL THE LASER IS BEHIND THE SECOND SPOKE RESS THE PLIT BUTTON ONCE TO CONFIRM LACE THE INDICATED WEIGHT BEHIND THE SECOND SPOKE ROTATE MANUALLY THE WHEEL IN POSITION BEHIND THE FIRST SPOKE AND PLACE THE INDICATED WEIGHT FM07-18...
- Page 5 5800 Massachusetts Ave., Indianapolis, IN 46218 +1 (800) 640 8303 info@hofmann-megaplan-usa.com OTATE MANUALLY THE WHEEL IN THE INSIDE POSITION LACE THE STICK ON WEIGHT IN THE CORRECT POSITION USING THE ASER ASER NEEDS TO BE PLACED CENTERED ON THE INNER SIDE OF THE WHEEL WEIGHT LOSE THE HOOD TO SPIN THE WHEEL FM07-18...
- Page 6 5800 Massachusetts Ave., Indianapolis, IN 46218 +1 (800) 640 8303 info@hofmann-megaplan-usa.com HEEL BALANCED FM07-18...
