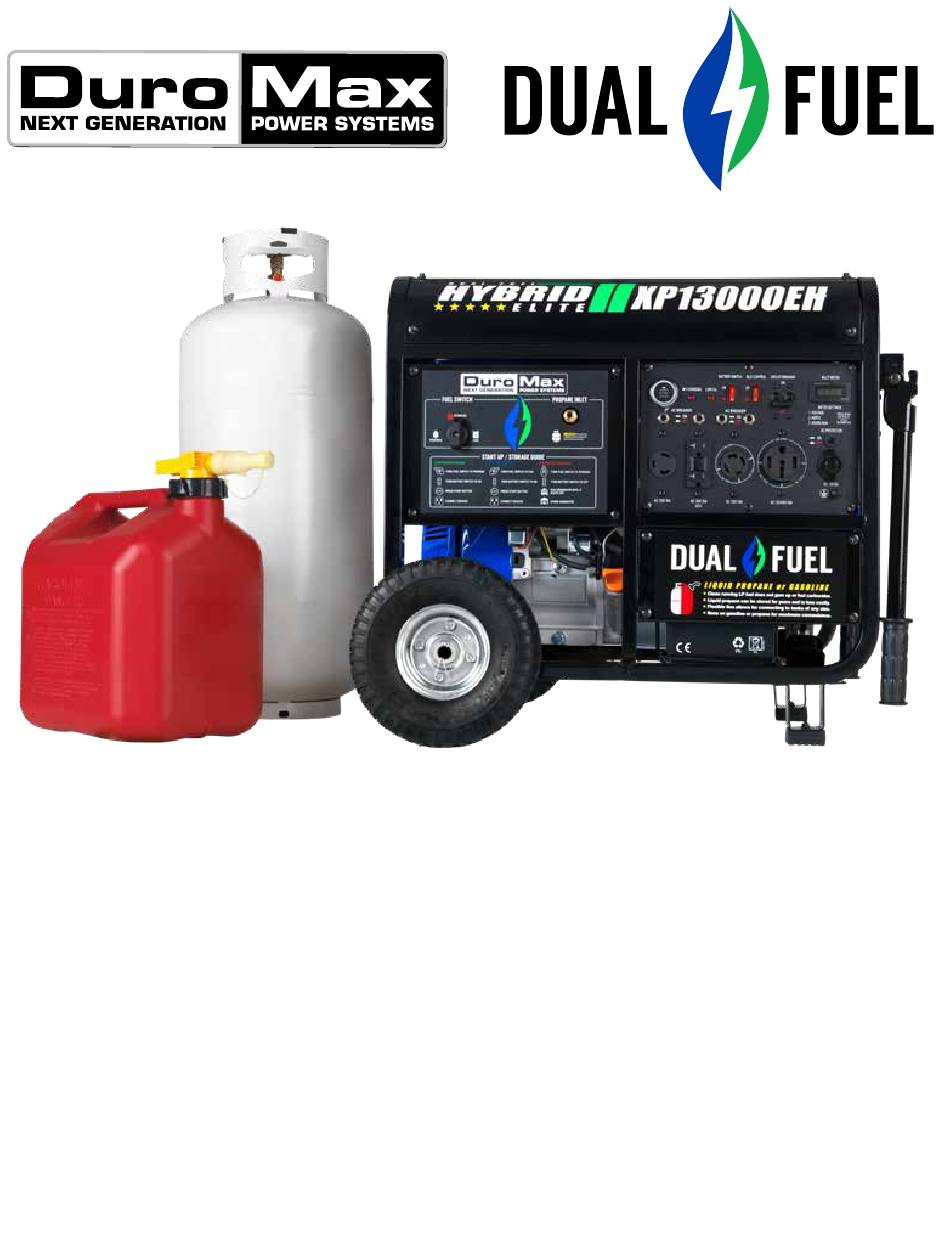

XP13000EH GENERATOR
Quick Start Guide
REV: XP13000EH-QS-04102020
5800 Ontario Mills Pkwy
Ontario, CA 91764 USA
This manual provides information regarding the operation
www.duromaxpower.com
and maintenance of these products. We have made every
effort to ensure the accuracy of the information in this
Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri
manual. We reserve the right to change this product at
844-DUROMAX
any time without prior notice.
Advertisement
Table of Contents
Related Manuals for DUROMAX XP13000EH
Summary of Contents for DUROMAX XP13000EH
- Page 1 XP13000EH GENERATOR Quick Start Guide REV: XP13000EH-QS-04102020 5800 Ontario Mills Pkwy Ontario, CA 91764 USA This manual provides information regarding the operation www.duromaxpower.com and maintenance of these products. We have made every effort to ensure the accuracy of the information in this Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri manual.
- Page 2 QUICK START GUIDE (GASOLINE) Remove shipping braces The shipping braces prevent engine movement during shipment. Flip the generator over and remove the brightly colored brace between the motor and the frame, and the wood brace under the generator. Add oil The oil fill cap is located on the lower engine block to the right of the recoil start housing.
-
Page 3: Start Generator
Turn battery switch on The battery switch is located on the top center of the main power panel. Turn the switch ON to allow power to the push button start. Turn idle control off The idle control is located on the top center of the main power panel. - Page 4 QUICK START GUIDE (PROPANE) Remove shipping braces The shipping braces prevent engine movement during shipment. Flip the generator over and remove the brightly colored brace between the motor and the frame, and the wood brace under the generator. Add oil The oil fill cap is located on the lower engine block to the right of the recoil start housing.
- Page 5 Connect propane tank The propane hose is located on the left side of the regulator, below the OHV valve cover. Screw the open ACME nut connection to your propane tank and turn the tank on. Turn battery switch on The battery switch is located on the top center of the main power panel.
-
Page 6: Generator Components
5. Power Panel - Contains the start switch, plugs, meters, and circuit breakers. 6. Handles - Longest handles of any DuroMax Model allow easy movement across any surface. 7. Battery - 12V DC Battery that powers the Electric Start System 8. - Page 7 13. Low Oil Alert 14. Battery Switch 12. Charging Light 15. Idle Control 11. Engine Switch 16. Circuit Breaker 9. Fuel Switch 10. Propane Inlet 17. Multimeter 23. Circuit Protectors 18. 12V Auto 22. 30A 120v Receptacle 19. 50A Receptacle 21.
-
Page 8: Package Contents
PACKAGE CONTENTS Your generator comes with the items listed below. Please check to see that all of the following items are included with your generator. Double Sided Spanner Spark Plug Wrench Screw Driver Phillips and slot blade Assorted wrenches used in Used in spark plug screwdriver used for generator generator maintenance and... -
Page 9: Customer Service
CUSTOMER SERVICE Duromax Power Equipment is committed to ensuring that our products perform when they need to. Our generators are your lifeline in the event of an emergency. Should you have any problems, please contact our customer service department: DUROMAX POWER EQUIPMENT... - Page 10 5800 Ontario Mills Parkway Ontario, CA 91764 United States 844-DUROMAX...
