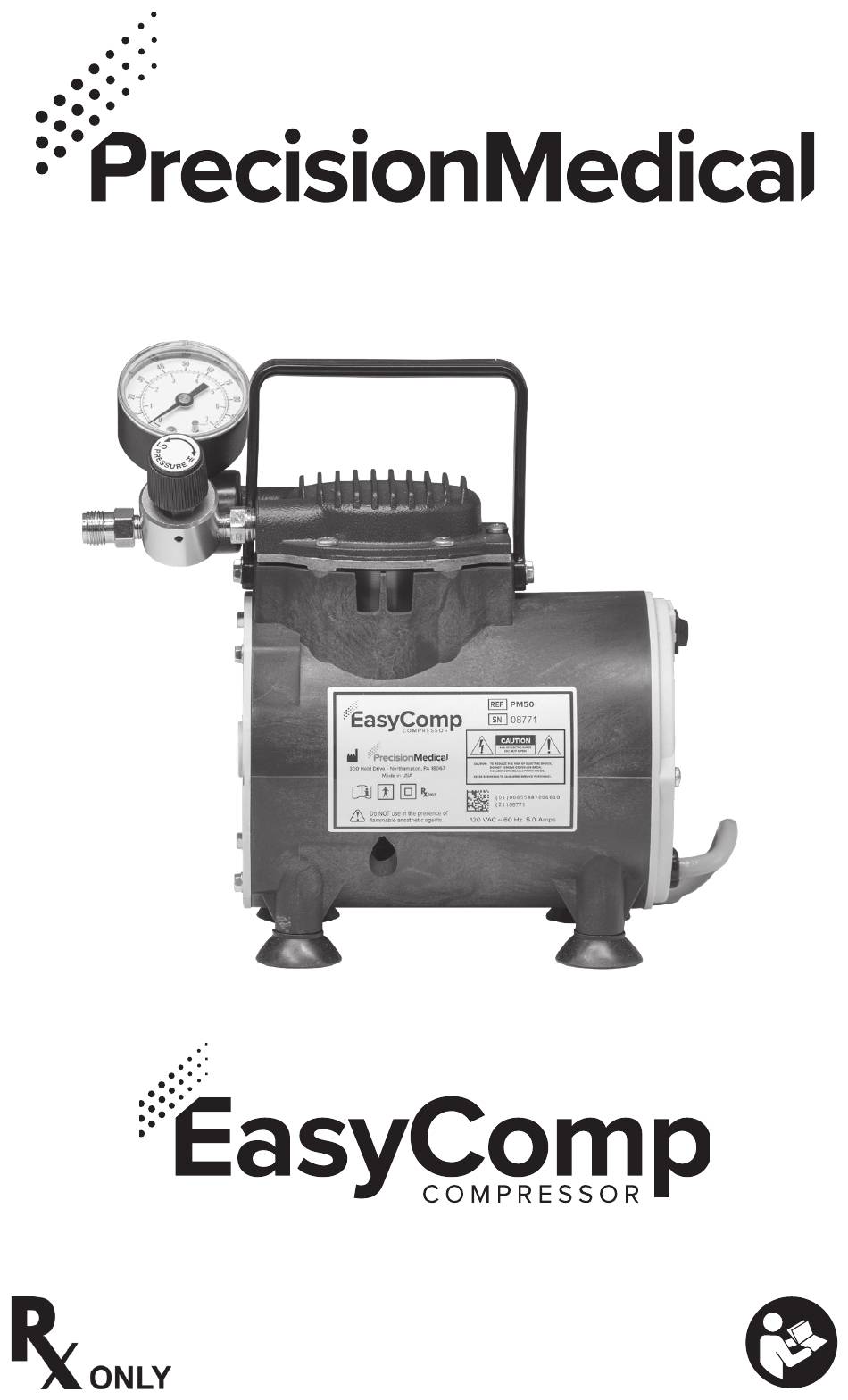

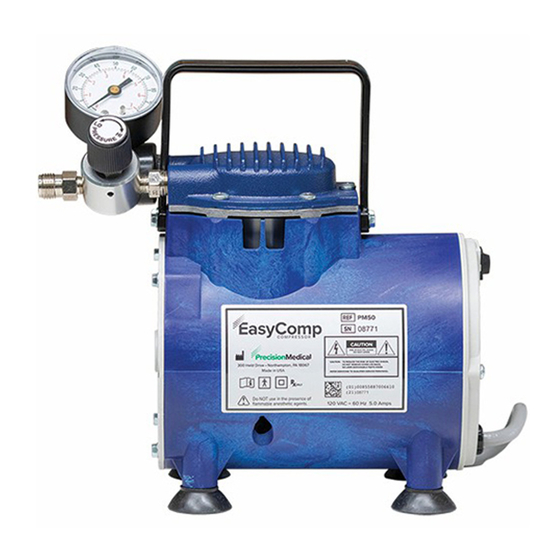

- Page 1 Model: PM50-3HG (shown)
-
Page 2: Table Of Contents
CONTENTS RECEIVING/INSPECTION ...............2 INTENDED USE ................2 READ ALL INSTRUCTIONS BEFORE USING ......2 EXPLANATION OF ABBREVIATIONS .........2 SAFETY INFORMATION - WARNINGS AND CAUTIONS ..2 SPECIFICATIONS ................4 COMPONENT IDENTIFICATION ...........5 OPERATING INSTRUCTIONS ............6 CLEANING/MAINTENANCE ............7 RETURNS ...................8 DISPOSAL INSTRUCTIONS ............8 REPLACEMENT PARTS ..............8 LIMITED WARRANTY .............. -
Page 3: Receiving/Inspection
RECEIVING/INSPECTION Remove the Precision Medical, Inc. Easy Comp Compressor from packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE The basic function is to supply a portable compressed air source adequate to drive high volume nebulizers. - Page 4 Use this Easy Comp Compressor only for its “Intended Use” as described in this manual. DO NOT use attachments not recommended by Precision Medical, Inc. DO NOT use the Compressor with any equipment that requires “dry” air, including ventilators, gas blenders, or flow generators, without a device to properly dehumidify the discharged air of the PM50.
-
Page 5: Specifications
SPECIFICATIONS Flow Output at 50 psig: ≥13 l/min Maximum Rated Sustained Pressure: 60 psi Duty Cycle: Continuous Dimensions: Length: 10.25 in (26.0 cm) Width: 5.25 in (13.3 cm) Height: 9.5 in (24.1 cm) Weight: 9.7 lbs (4.4 kg) Shipping Weight: 11.2 lbs (5.1 kg) Electrical:... -
Page 6: Component Identification
COMPONENT IDENTIFICATION CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. Pressure Gauge Regulator Knob Air Outlet Fitting Suction Feet On / Off Filter End Switch Air Filter Assembly Power Cord 2-prong Power Cord: Model PM50- (shown) -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS CAUTION Inspect the Easy Comp Compressor for visual damage, DO NOT USE if damaged. 1. Become familiar with the Compressor (see Component Identification). 2. Place Compressor near a properly grounded electrical receptacle on a table, floor or other horizontal, smooth, hard surface. -
Page 8: Cleaning/Maintenance
CLEANING/MAINTENANCE WARNING Turn the Easy Comp Compressor off and disconnect from power source before cleaning. To clean the filter (weekly): 1. Unplug Compressor. 2. Pry off filter end cap to check air filter for dust buildup. 3. If dust buildup occurs, remove air filter and wash in warm, soapy water and rinse. -
Page 9: Returns
(RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet, www.precisionmedical.com. - Page 10 TROUBLESHOOTING If the PM50 Easy Comp Compressor fails to function, consult the Troubleshooting Guide below. If the problem cannot be corrected, consult your Provider. Problem Probable Cause Remedy Compressor will 1. On/Off switch in 1. Push On/Off not operate “OFF” position switch to “ON”...
-
Page 11: Limited Warranty
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. The representatives of Precision Medical, Inc. or any retailers are not authorized to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. - Page 12 300 Held Drive Northampton PA 18067, USA www.precisionmedical.com T: (+001) 610-262-6090 • F: (+001) 610-262-6080 ISO 13485 Certified Tell us how we are doing! www.precisionmedical.com 1971 Rev13 7/20 Printed in USA...
