Summary of Contents for Precision Medical PM50

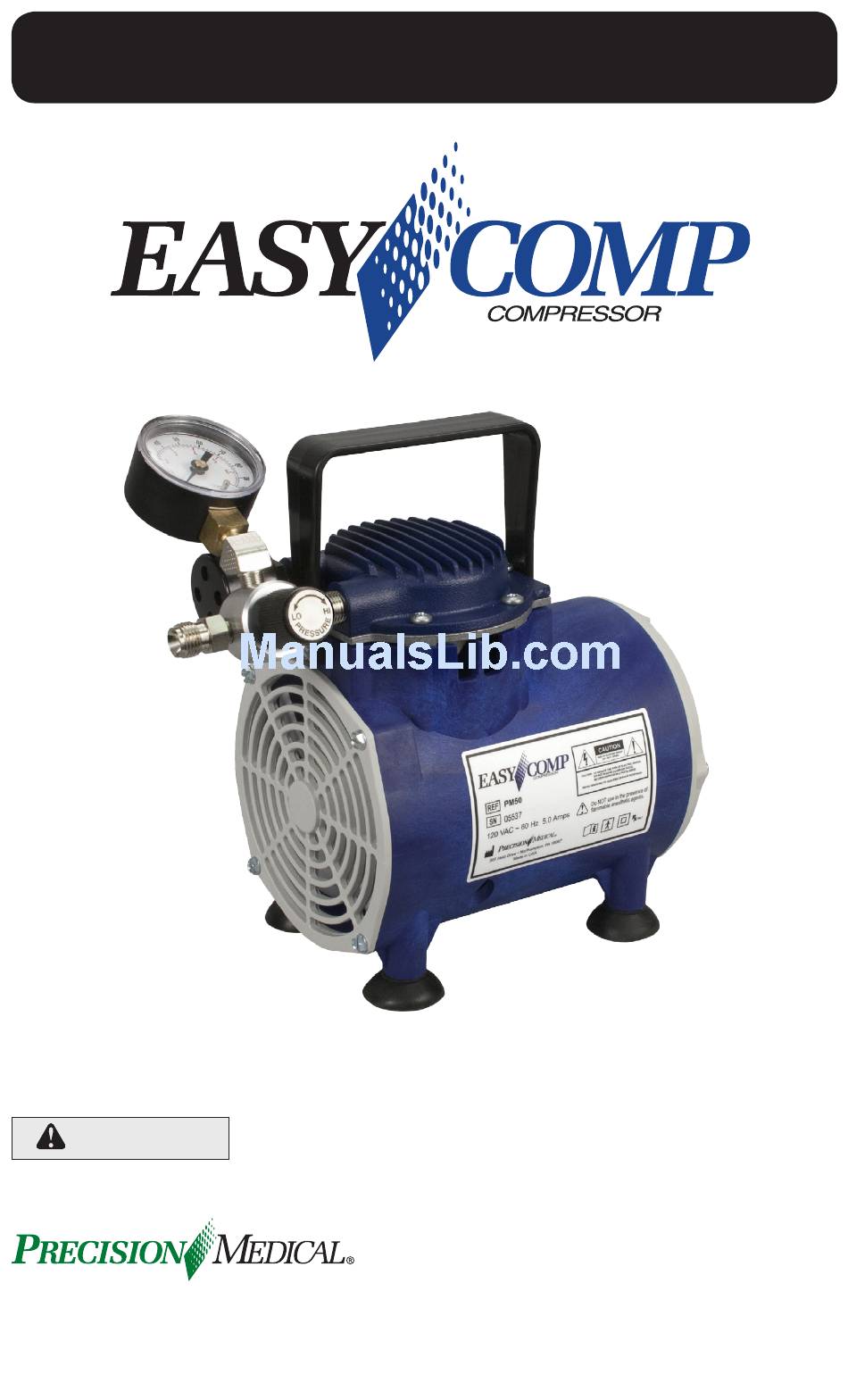

- Page 1 U S E R M A N U A L Model: PM50 SAVE THESE INSTRUCTIONS Federal (USA) law restricts this device to sale CAUTION by or on the order of a physician. 300 Held Drive Tel: (+001) 610-262-6090 Northampton, PA 18067 USA Fax: (+001) 610-262-6080 www.precisionmedical.com...
-
Page 2: Table Of Contents
CONTENTS RECEIVING/INSPECTION ........... 2 INTENDED USE ..............2 READ ALL INSTRUCTIONS BEFORE USING ....2 EXPLANATION OF ABBREVIATIONS ........ 2 SAFETY INFORMATION - WARNINGS AND CAUTIONS ... 2 SPECIFICATIONS ..............4 COMPONENT IDENTIFICATION ......... 5 GROUNDING INSTRUCTIONS ........... 6 OPERATING INSTRUCTIONS ..........6 CLEANING/MAINTENANCE .......... -
Page 3: Receiving/Inspection
READ ALL INSTRUCTIONS BEFORE USING This manual instructs the end user how to install, operate and safely use the PM50 Easy Comp Compressor. If you do not understand this manual, DO NOT USE the Easy Comp Compressor and contact your Provider. - Page 4 “dry” air, including ventilators, gas blenders, or flow generators, without a device to properly dehumidify the discharged air of the PM50. • DO NOT use if the Compressor has a damaged cord or plug. • DO NOT use if the Compressor has been dropped or damaged.
-
Page 5: Specifications
SPECIFICATIONS Flow Output at 50 psig: ≥13 l/min Maximum Rated Sustained Pressure: 60 psi Duty Cycle: Continuous Dimensions: Length: 10.25 in (26.0 cm) 5.25 in (13.3 cm) Width: Height: 9.5 in (24.1 cm) Weight: 9.7 lbs (4.4 kg) Shipping Weight: 11.2 lbs (5.1 kg) Electrical:... -
Page 6: Component Identification
COMPONENT IDENTIFICATION CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. Pressure Gauge Air Outlet Fitting Regulator Knob Suction Feet Filter End Cap Power Cord Keeper Air Filter Assembly On / Off Power Cord Switch... -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS The Easy Comp Compressor must be plugged into an electrical outlet that is properly grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock. This product is equipped with a grounding circuit. DANGER Improper use of the grounding plug can result in a risk of electrical shock. -
Page 8: Cleaning/Maintenance
Begin procedure. 10. When procedure is complete, press the On/Off Switch to the “OFF” position. CLEANING/MAINTENANCE WARNING Turn the Easy Comp Compressor off and disconnect from power source before cleaning. To clean the filter (weekly): 1. Unplug Compressor. 2. Pry off filter end cap to check air filter for dust buildup. 3. -
Page 9: Returns
(RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet, www.precisionmedical.com. -
Page 10: Troubleshooting
TROUBLESHOOTING If the PM50 Easy Comp Compressor fails to function, consult the Troubleshooting Guide below. If the problem cannot be corrected, consult your Provider. Problem Probable Cause Remedy Compressor will 1. On/Off switch in 1. Push On/Off not operate “OFF” position switch to “ON”... -
Page 11: Limited Warranty
LIMITED WARRANTY AND LIMITATION OF LIABILITY Precision Medical, Inc. warrants that the PM50 Easy Comp Compressor (the Product) will be free of defects in workmanship and/or material for the following period: One (1) year from shipment Should any failure to conform to this warranty appear within the applicable period, Precision Medical, Inc. - Page 12 Precision Medical, Inc. 300 Held Drive Northampton, PA 18067 USA Toll Free Tel: 800-272-7285 Toll Free Fax: 800-353-1240 Tel:(+001) 610-262-6090 Fax:(+001) 610-262-6080 ISO 13485 Certified Tell us how we are doing! Visit us at www.precisionmedical.com 1971 Rev10 2/16 (??m) Printed in USA...
