Shappell DX3000 Manual

REPLACEMENT PARTS

MODEL DX3000 (47" x 70" Floor)
Part No. Description
3000.1DX Fabric Cover
3000.3A Frame Assembly
3000.4 Floor Pole (only)
3000.5 Roof Tube (plain end)
3000.6 Roof Tube (formed end)
3000.7 Elastic Frame Cord
3000.8 Carpeting
3000.11 Roof Bow
10328 9" x 16" Window
Accessories
IA2 Ice Anchor
SK3000 Ski System
NOTE: Small Holes, Tears and Cuts in Cover can be Repaired with Black Duct
Tape applied to Coated Side of Fabric.
To Order Parts, give Part No., Description and Qty Needed.
SHAPPELL CORP., 3562 W. Jefferson Hwy., Grand Ledge, MI 48837
info@shappell.com
(USA)
(Canada)

CONSUMER WARRANTY

SHAPPELL CORPORATION warrants its products against defects in material
and workmanship for (1) YEAR from date of purchase. We will provide FREE
repair or replacement, in whole or in part, at our option, for any product, found
in our opinion to be defective. If return is required, freight must be prepaid.
This warranty does not cover Freight Damage, Ordinary Wear and Tear, Abuse,
Misuse or Altered Product.
WINDOWS ARE NOT GUARANTEED AT TEMPERATURES BELOW
–15 DEGREES FAHRENHEIT.
For warranty claim, send product model number, explanation of defect and
dated proof of purchase to: Shappell Corp., 3562 W. Jefferson Hwy, Grand
Ledge, MI 48837.
(10078)
3000.11
3000.5
3000.6
1-888-571-1144
1-517-622-2700
1-01-07
PORTABLE ICE FISHING SHELTER
3000.1DX
3000.3A
3000.4
3000.8

IMPORTANT SAFETY INFORMATION

WARNING: Keep all Heat & Flame Sources away from the Shelter's Fabric
Cover. The Fabric Cover is Fire Retardant, it is not Fire Proof. The use of any
heat source can be extremely dangerous, both for Fire Hazard and Carbon
Monoxide Emissions. The Shappell Corporation does not endorse the use of any
Heater. It is the user's responsibility to follow the Instructions and Warnings
provided by the Heater Manufacturer for the safe use of a particular Heater.
C O
CARBON MONOXIDE POISONING HAZARD: This shelter is nearly air tight
and must be ventilated if using an oxygen consuming heat source. An extra zipper
pull at the top of each door provides ventilation and can also be used to form a
window for viewing. DO NOT PACK SNOW AROUND SHELTER or in any
way prevent fresh air from entering shelter. Failure to Ventilate Shelter could
create a Serious Health Hazard or Death.
Towing of shelter with a motorized vehicle is not recommended.
Window can not be made to withstand temperatures below –15
PREVENT DAMAGE TO HINGE JOINT: Always set shelter on a level flat
surface.
MAINTENANCE: After each use, set up shelter until fabric is completely dry.
Never leave shelter folded closed with a wet cover.
NOTICE:
water repellency.
READ SETUP & TAKEDOWN INSTRUCTIONS BEFORE USING SHELTER
Model
ID Holder
(6) Removable Windows
It is normal for fabric to have some pinholes. This does not affect

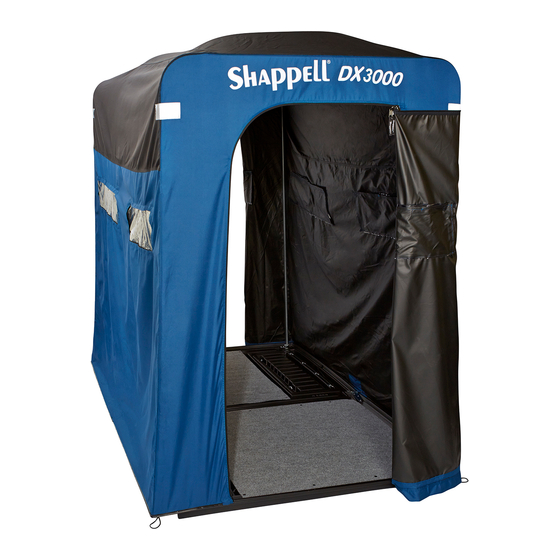

DX3000
Shown with Optional
Ski System.
o
F. (see warranty)
