Description
We have found that spending a little extra time and money ensuring that you have the absolute
correct set-up makes all the difference in the world when you come up against difficult soldering
jobs. American Beauty offers a wide array of accessories to our line of resistance soldering
systems. Take a moment to learn just how one of these items may improve your current process.
Features and Benefits
Precision control of power application down to the 100th of a second ensures the tightest of
process control.
Multi-function timer takes operator error completely out of the picture.
Technical Specifications

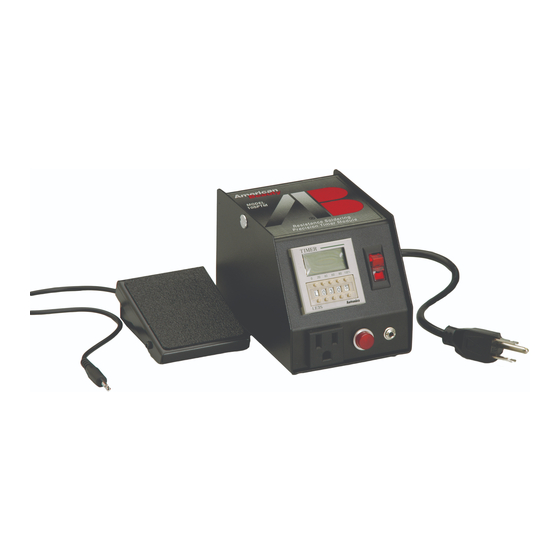

Resistance Soldering Precision Timer
Module
Model: 105PTM
Advertisement
Related Manuals for American Beauty 105PTM
Summary of Contents for American Beauty 105PTM
- Page 1 American Beauty offers a wide array of accessories to our line of resistance soldering systems. Take a moment to learn just how one of these items may improve your current process.
- Page 2 End-Of-Life Instructions In an effort to reduce waste and comply with WEEE directive, please do not dispose of product. All American Beauty Tools are serviceable and can be repaired and/or replaced. Please contact manufacturer to make arrangements. American Beauty Tools info@americanbeautytools.com...
- Page 3 LCD Precision Timer Module. Description: This Timer Module is a self contained, digital LCD, multiple functions precision timing control device, that has been specifically developed for use with many of the American Beauty® Resistance Soldering Systems and Power Units that are available.
- Page 4 The Footswitch should be plugged into the low voltage 3.5mm receptacle that is located on the lower front panel of the Timer Module. The American Beauty® Resistance Soldering Power Unit that you intend to use should be plugged into the 5-15 receptacle located on the front of the Timer Module.
