Summary of Contents for Kunz AcrEase C60H

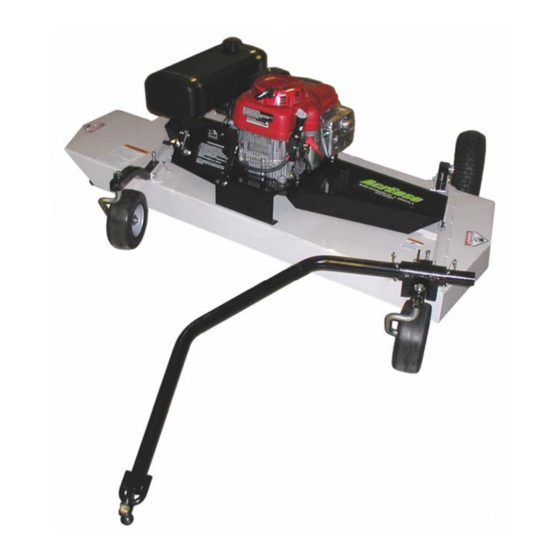

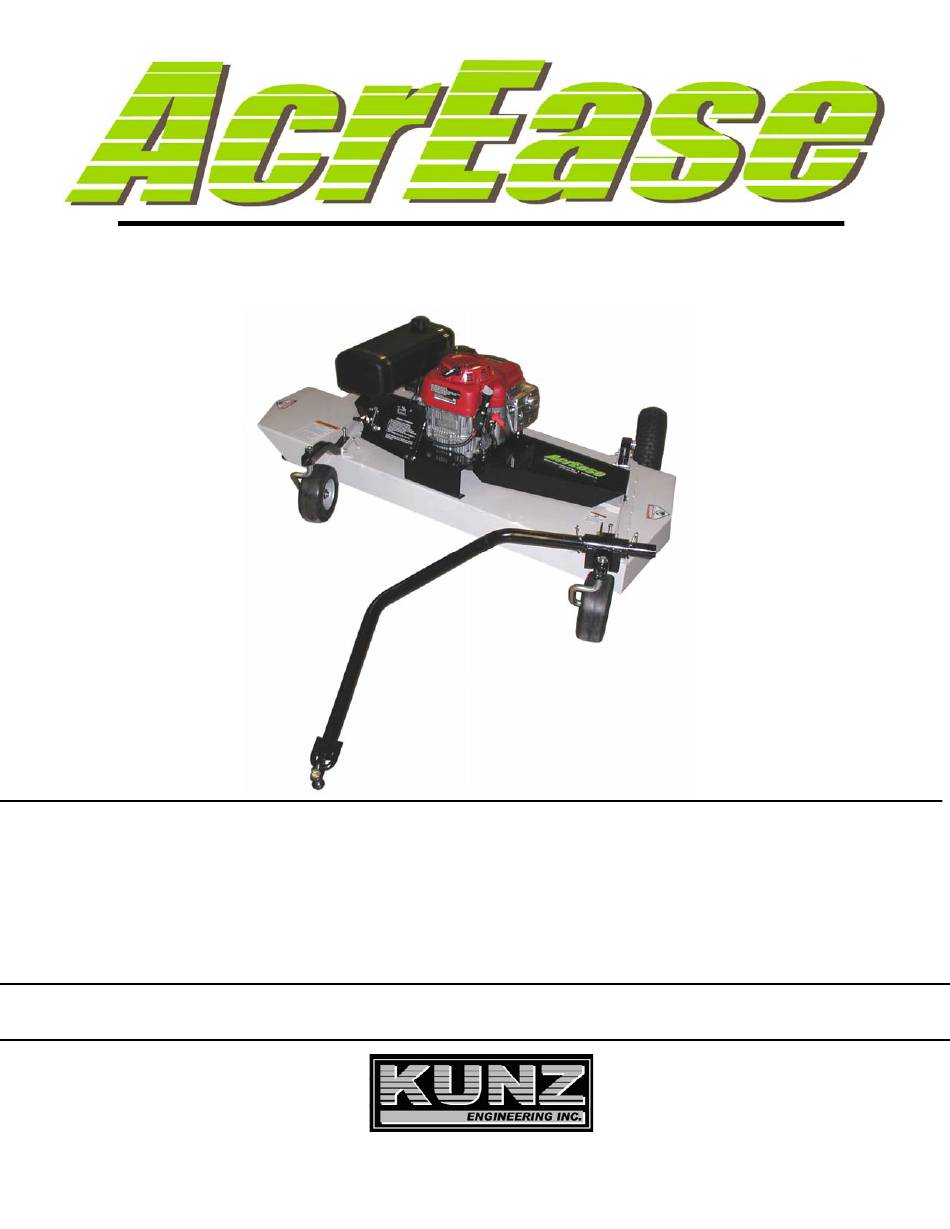

- Page 1 60” FINISH CUT OWNER’S MANUAL With Assembly Instructions For Model: C60H KUNZ ENGINEERING, INC. MENDOTA, IL 61342 PH (815) 539-6954 12/04...
- Page 2 ASSEMBLY INSTRUCTIONS READ THE COMPLETE ASSEMBLY INSTRUCTIONS BEFORE STARTING THE ASSEMBLY. You should have: one mower deck assembly two caster assemblies two rear axle assemblies one ATV tongue assembly A. ASSEMBLY OF MOWER WHEELS 1. Set the mower deck assembly on wood blocks so that it is suspended off the ground. 2.
-
Page 3: Operations And Adjustments
3. Install the two rear axle assemblies in the retainers on the rear of the mower deck. The tire should be to the left of the axle support. See figure 1. Secure with 3/8” x 2-1/2” hex head bolt, lock washer, and nut provided in the retainer areas. Note: Tighten the four wheel assembly pivot bolts so that the wheel assemblies will not flop down when the deck is raised off the ground. - Page 4 When attaching the tongue to the back of the tow vehicle, tighten the screw pin shackle clevis firmly. Property damage or bodily injury may occur if the screw pin shackle clevis unturns and the wing mower becomes unattached from the tow vehicle.
- Page 5 4. Adjust the cutting height on the wing mower so that it cuts at the same height as the tow vehicle mower. Adjust each corner of the wing mower so that the distance from the smooth surface to the bottom edge of the deck is equal to the cutting height minus 5/16”. The mower blade cutting edge is 5/16”...
- Page 6 C. STARTING ENGINE Set parking brake on tow vehicle. Attach wing mower tongue to tow vehicle. Do not start wing mower unless it is attached to the tow vehicle. Set the throttle lever in the choke position to set the choke. (The choke is located beyond the full throttle detent position.) Start engine and move throttle toward slow position to disengage choke.
- Page 7 Keep all safety shields and deflectors in place during operation. Remove grass build up from under safety shields before each use. Do not remove safety shields while engine is running. Dry grass build up around belts and sheaves can cause fires. Shut off engine before disconnecting the wing mower from the tow vehicle or attempting to move the wing mower by hand.
- Page 8 Mowing to fast in very heavy, long grass can cause the wing mower engine to pull down and disengage the blade clutch. The engine can then start to accelerate again while slipping the clutch. Small amounts of clutch slippage for a few seconds will not cause damage. If the clutch is allowed to slip for longer periods, it will overheat and could be damaged.
- Page 9 The Model C60H uses the Kunz Engineering Part # (202136) blade bolt. This particular hex head bolt is a 1/2” – 20NF x 1.00” long, grade 5 and it’s proper torque is 85 ft-lbs.
- Page 10 J. TRANSPORTATION OF MOWER When transporting the mowers between jobs turn off the fuel shut-off valve below the fuel tank. M. STORAGE If the mower is stored outside, the engine should be covered to prevent water from getting inside the engine during heavy rainstorms. See the Engine Manual for additional information.
- Page 11 WING MOWER SPECIFICATIONS Model C60H ENGINE: Engine Make Honda Engine Model GXV390 Cylinders Cycles Crankshaft Vertical Engine HP Bore 3.46" Stroke 2.52" Displacement 23.7 cu.in. Oil Capacity 1.2 U.S. qts. Crankshaft Dia. 1" Key Slot 1/4" Crankshaft Length 3.12" Threaded Hole in End of Crankshaft 7/16-20 Engine Mounting Bolts 5/16-18 x 1-1/2"...
- Page 12 ACREASE WING MOWER PARTS MODEL C60H Item Part # Description Quantity 202135 Hex Head Bolt, 3/8" x 3" Fully Threaded 204000 Shoulder Bolt, 1/2" x 1-5/8" Shoulder Length 222005 Worm Drive Hose Clamp (7-7/8" to 9-1/8" Clamping Dia. 225000 Compression Spring, 1-1/2"L x 1-3/32" O.D. x .135" Wire dia. 226000 Plastic Wheel, 3"...
- Page 13 MODEL C60H...
- Page 14 ATV TONGUE PARTS PARTS LIST Item Part # Description Quantity 216002 Wire Lock Pin .31" X 2.50" 216009 Screw Pin Shackle Clevis 900057 Hitch Pivot 900082 Tongue...
- Page 15 275002 – Warning Decal, General Serial # & Model # Decal Clean or Replace Any Safety Signs That Are not Readable or Damaged Replacement decals can be purchased from your local dealer or Kunz Engineering Inc. Mendota, IL 61342 (815) 539-6954...
-
Page 16: Optional Equipment
OPTIONAL EQUIPMENT A. OPTIONAL LAWN & GARDEN HITCHING Your mower came equipped with the ATV Tongue. The ATV Tongue is a universal hook-up for all tow vehicles. Part # 900013 Part # 900009 Part # 900028 Part # 900008 Telescoping Hitch Part # 900028 Short Tongue Part # 900013 The Lawn &... - Page 17 Tow Vehicle without a Mower Deck 1 & 2 combined 1, 2, & 3 combined 2 & 3 or 5 or 5 combined 2 & 4 combined Tow Vehicle with a Mower Deck 1 & 2 combined 1 & 2 1, 2, &...
- Page 18 B. OPTIONAL FLOATATION KIT This optional floatation kit features an extra front and back tire that can be bolted in the center section of the mower deck. This is a great anti-scalp feature that helps to carry the center section of the mower deck and works well in the following applications: •...
