SHELTER
ASSEMBLY MANUAL
Model#6012025
Door Size: W18ft*H18ft
Size:L36.6xW18.3xH7.625m

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6012025 and is the answer not in the manual?

Questions and answers

Related Manuals for SHELTER 6012025

Summary of Contents for SHELTER 6012025

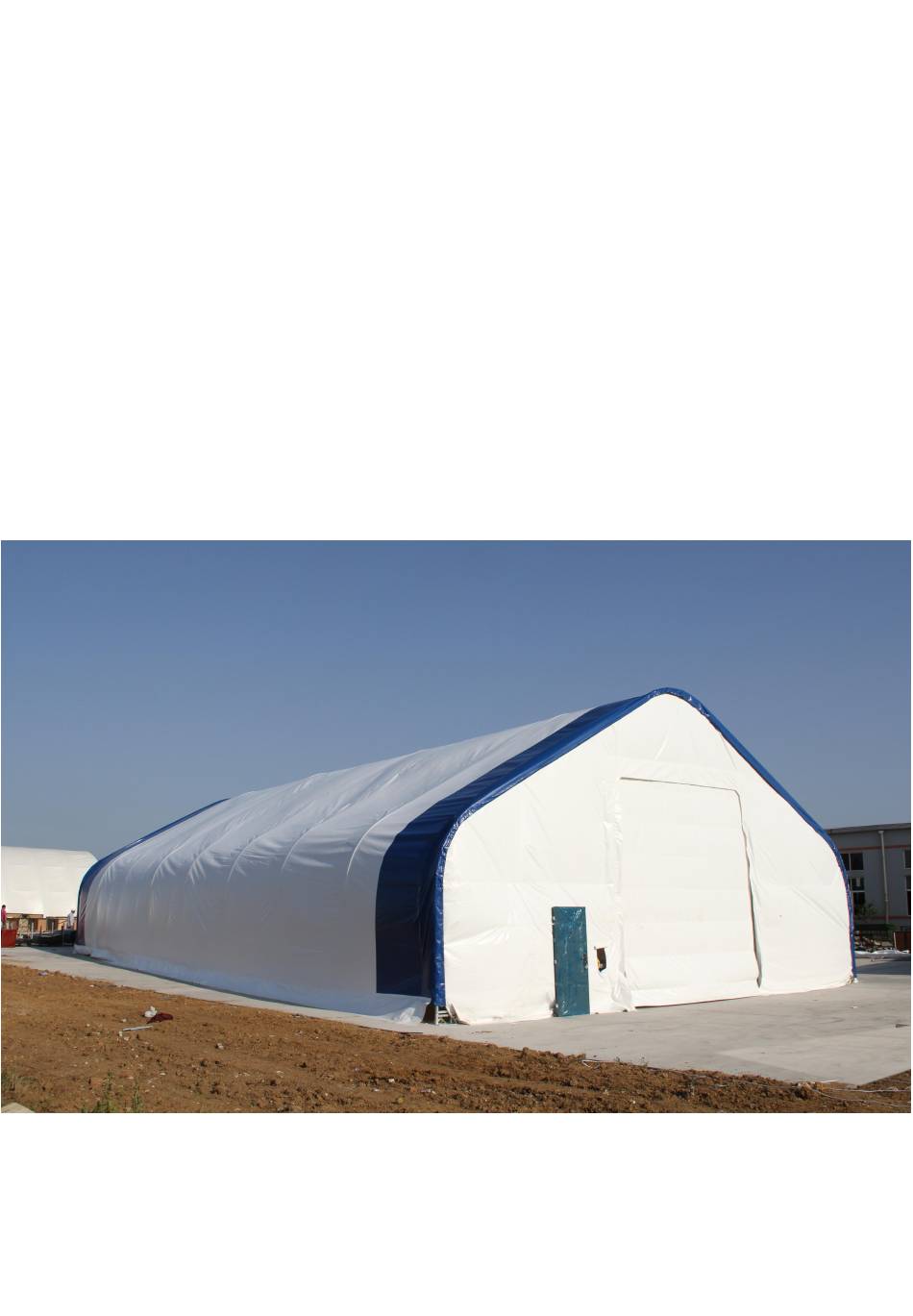

  • Page 1 SHELTER ASSEMBLY MANUAL Model#6012025 Door Size: W18ft*H18ft Size:L36.6xW18.3xH7.625m...

  • Page 2: Specification

    SPECIFICATION Length:36.6m Width: 18.3m Height: 7.625m Door dimension: W5.49xH5.49m IMPORTANT----READ MANUAL FIRST Improper site preparation, assembly and maintenance may invalidate warranty and cause unnecessary and costly mistakes. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
  • Page 3 Part List Part Description Top roof tube Top roof tube for front and back door Upper curving tube Upper curving tube for front and back door Middle curving tube Middle curving tube for front and back door Lower curving tube Lower curving tube for front and back door Sidewalll curving tube Sidewalll curving tube for front and back door...
  • Page 4 Purlin on front to install mechnical wheel Door beam on front and back door 2sets Vertical support tube for door beam on front and back door Steel wire at side Clip Steel wire on top Steel wire lengthways on top Base tensioning tube for front and back door Base tensioning tube for Roof cover 2sets...
  • Page 5 Figure 1:Sketch of trussed frame Size: L36.6xW18.3xH7.625m...
