Summary of Contents for SHELTER GS4070

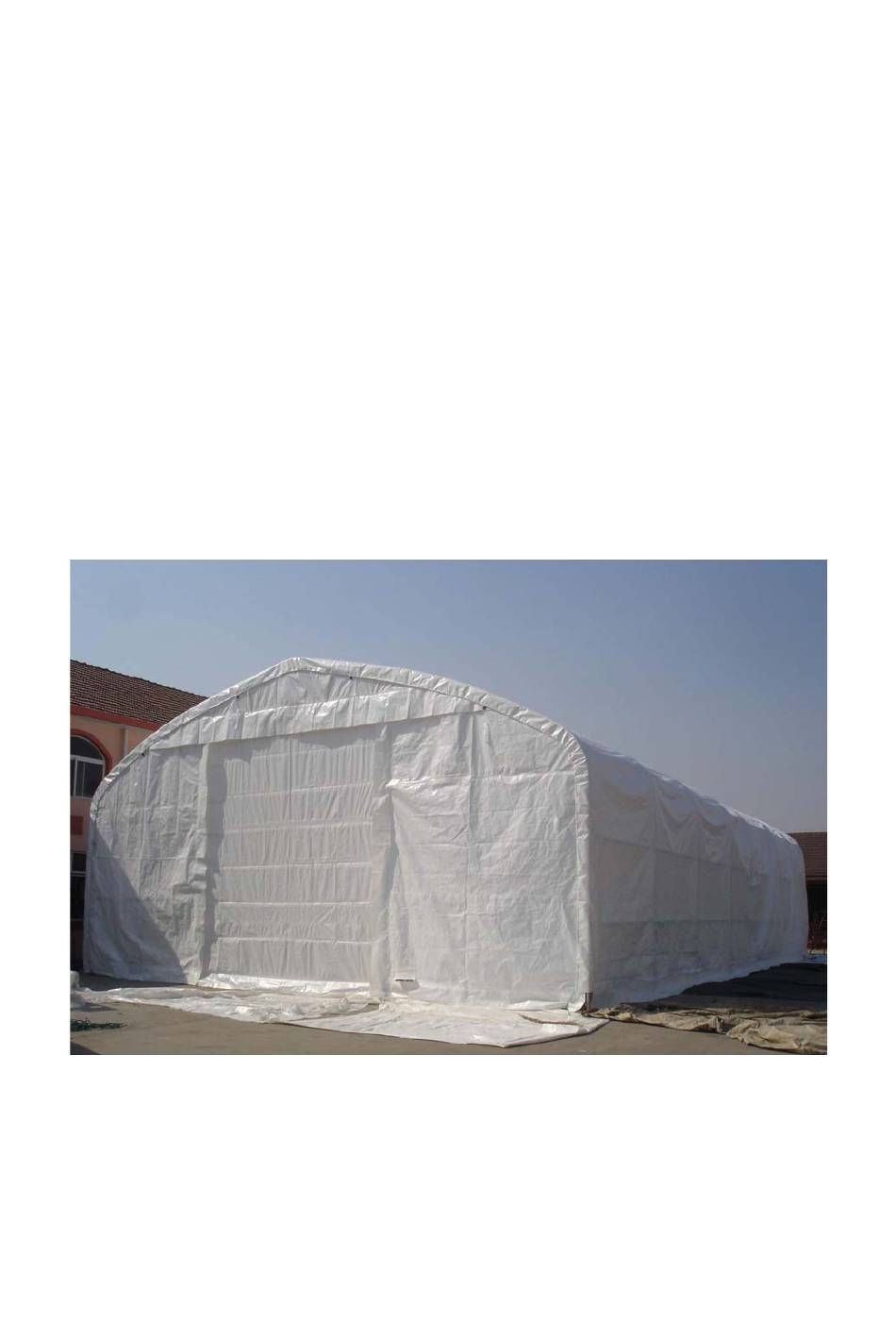

- Page 1 SHELTER MODEL: G S4070 L21.4xW12.2xH6.4M Assembly Manual...
- Page 2 Congratulations on your purchase of our instant shelter. This unit is a combination of excellent manufacturing and design. It is comprised of a rigid frame and a durable cover. For easy assembly, we have marked all the parts with codes. With proper installation, use and maintenance, your unit will provide many years of good and suitable service.
-
Page 3: Assembly Procedure
ASSEMBLY PROCEDURE 1. Prepare location and place all unit boxes near location sight. Perform an inventory check before beginning, to be certain all components are available for installtion. 2. Secure base plates flanges to base surface. 3. Assemble every group of arch. 4. - Page 4 Part List of G S4070 Part Code Description Quantity Top roof tube Top roof tube in the front and back panel Roof curving tube Roof curving tube in the front panel Roof curving tube in the back panel Roof curving tube at shoulder height Roof curving tube at shoulder height in the front panel Roof curving tube at shoulder height in the back panel Sidewall tube...
- Page 5 Cover tensioning tube of back cover Cover Tensioning tube for roof cover 2sets Door dropping tube Door dropping tube(swaged) Door dropping tube at the bottom Door dropping tube at the bottom(swaged) Stake pegs Hexagonal bolt M10x85 Carriage bolt M10x85 Hexagonal bolt M10x75 Hexagonal Bolt M10x30 Bolt M10x15 for tie down ratchet Tie down ratchet...
- Page 7 Base Flange. alignment strings along both ends and sides of the building to the The Shelter must be secured to a firm dimensions shown in Figure 3. The surface that can receive and retain augers outline of the strings will represent and pegs firmly in position.
