Installation

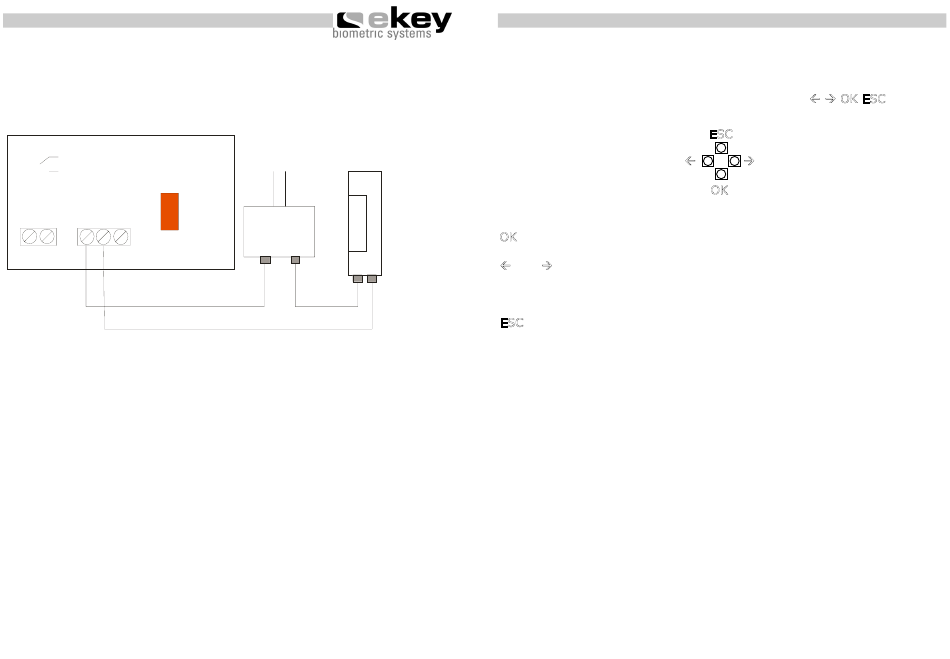

Example: Connecting to a door opener
Internal unit with dry contact
NC
C
NO
Relay
Channel1
1 2 C NO NC
230V~
or
Door opener
110 V~
Power supply
- 9 -

Operation

4. Operation
4.1. Using the operation keys of inside unit
Programming is carried out by the usage of 4 keys:
OK serves to enter the menu and to confirm your input.
and serves to change the values in the display and respectively for
navigation respectively as shown in the illustration of programming menu
in chapter 4.3.
serves to cancel the current selection.
ESC
Program-, menu functions and display
Normal operation
Enrol user
Delete user
Security code setting
Reset to initial settings
(deletes all user settings and data)
OK ESC
ESC
OK
. (blinking)
Eu
du
Sc
rr
