Summary of Contents for SCMI К8

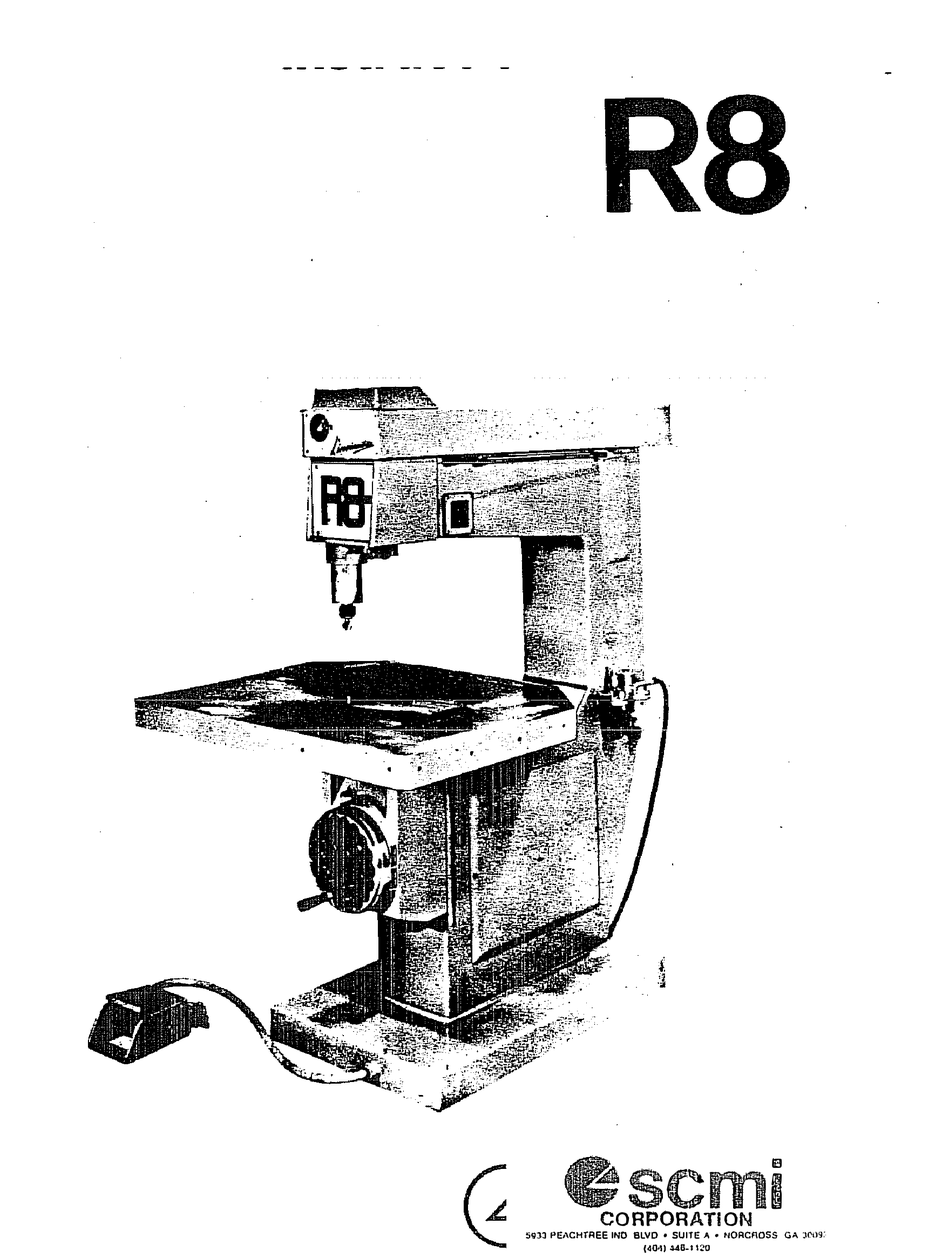

- Page 1 semi CORPORATION 59)3 f'E..'CHTREE INO BLVD . SUITE A • NORCAOSS GA �lr,)g· (�o.l) 446-1120...
- Page 2 Acc e ssor ies dev ices described this Manua l are inherent st anda rd m odel they cou l d differen t from tho se inst alled on your machine. Instructions and references c ited here, are no rmall y indicating effectiv e proc edures, even if sometimes all the descriptions are to be understoo d as g ener al.
-
Page 3: Table Of Contents
INTRODUCTION Pag. Identification of the machine " Technical features " Equipment UNLOADING SET UP - ADJUSTMENT " a) Unloading and setting " b) Electrical connection c) Air connection " d) Tools' mounting " " e) Adjustment of the depth of cut "... -
Page 4: Identification Of The Machine Pag
IDENTIFICATION OF THE MACHINE Every machine is identified by the initials marked on the head inspec tion door. TECHNICAL FEATURES The machine illstrated in this manual is a Router with the undermentioned features: Throat clearance 29.1/2" (750 mm) 10.000/20.000 R.P.M. Spindle speed Motor 3-4,5 HP... -
Page 5: A) Unloading And Setting
UNLOADING - SETTING UP - ADJUSTMENT a) UNLOADING AND SETTING UP 1) The machine is to be slung with ropes as shown in fig. 1 and unloa ded by means of a crane. 2) If the crane is not available, a skid can be made by using two heavy beams or boards (see fig. -
Page 6: C) Air Connection
Fig. 3 c) AIR CON�JECTION (fig. 4) Is done by connecting tbe air pipe to the fish-bone junction (C) The working pressure is to be at least 6 atm. (88.2 p.s.i.) The diagrams of the pneumatic installations are those of fig. 23 for machines with air power head lifting and of fig. - Page 7 d) MOUNTING OF TOOLS [fig. [to be carried out only when the head is fully lifted) Insert the pin [A) in the hole of the machine's head Remove the chuck (8) Insert the collet [e) Slightly screw the chuck (8) on the spindle [D) Introduce the tool (E) in its housing - Tighten the chuck (8) by means of the 36 mm [ 1.3/8") wrench (F) - Remove the pin [A)
-
Page 8: E) Adjustment Of The Depth Of Cut
e) ADJUSTMENT OF THE DEPTH OF CUT Adjustment is equally obtained by operating in the following three points: 1) Lifting or lowering the work table (fig. 6) and proceeding as follows: Release. but not completely. by means of the lever (A) the table support. -
Page 9: F ) Use Of The Guide Pin
f) USE OF THE G UIIJE PIN (fig. 6) - As e';ery machine is equipped with guid" pins. there will be a total of six diameters available owing the possibility of moun ting them by one end or the other. Mounting is done by introducing the guide pin in the central hole on the work table and locking it by means of the handle (D). - Page 10 To release the pedal allowing the head to lift off again . it is necessary to press the red upper pedal (A). N.B. PEDALS ARE TO BE USED ONLY WHEN THE MACHINE IS RUNNING. Fig. 9 j) BALANCING OF ECCENTRIC CHUCKS (fig. 10) The balancing of the eccentric chuck is effected as follows: a) Mount tile cutter and collet in the chuck with the cutting edge between the two lines marked on the face of the same.
-
Page 11: M) Mechanical Brake
" �w « < 0 �w �w < z", z", z" '" � w < w « < < < w< &� .i< ,,� ,,� &ff3 <0 '" '" '" �" "' " �" w < < < � � "' z "'z �z... -
Page 12: N) Belt Tension (Fig. 13
. Fig. 11 Fig. 12 n) BELT TENSION (fig. 13 - The belt tension is perfect when it gives 1·2 cm. to the thumb's pressure To adjust it. loosen the screws (A) and rotate the screws (B) in One direction or the other. - Tighten the screws (AJ. -
Page 13: Inconveniences
0) HOW TO GET RID OF THE MOST COMMON INCONVENIENCES PROBABLE CAUSES SOLUTIONS INCONVENIENCES motor's voltage does Make sure that the voltage not correspond to the mains motor effectively corre sponds to the mains Insufficient tension Make sure that there is no line voltage drops... -
Page 14: Maintenance
MAINTENANCE a) Every week (40 hours) Clean the motor pulley (fig. 13), especially the interior and the bottom. Make sure that in the air filter cup (fig. 17) there is no condensate. Empty it eventually, operating the drainage screw (0). b) Every month (160 hours) For the 20.000 rpm speed, lubricate the head ball bearings (fig. -
Page 15: E) Lubrication And Cleaning
e) LUBRICATION AND CLEANING OF MACHINE 1) Head ball bearings (fig. 15) are the r. l ost delicate part of the ma chine and require a special care. Lubrication is to be carried out on each ball bearing housed in the mobile cylinder through the two lubricators (A), by means of the appropriate grease gun, squeezing twice against the lubricating holes. -
Page 16: Replacement Of Spare Parts
REPLACEMENT OF SPARE PARTS a) REPLACEMENT OF THE BALL BEARINGS (fig. 18 - 19) 1) Lock the spindle by means of the pin (A) (fig. 18) 2) Remove the pulley's tightening screw by means of the Allen key (B) (fig. 18) 3) Mount at its place a 10 MA screw tightening it as much as possi... - Page 17 § '-j"- � � !-�...
