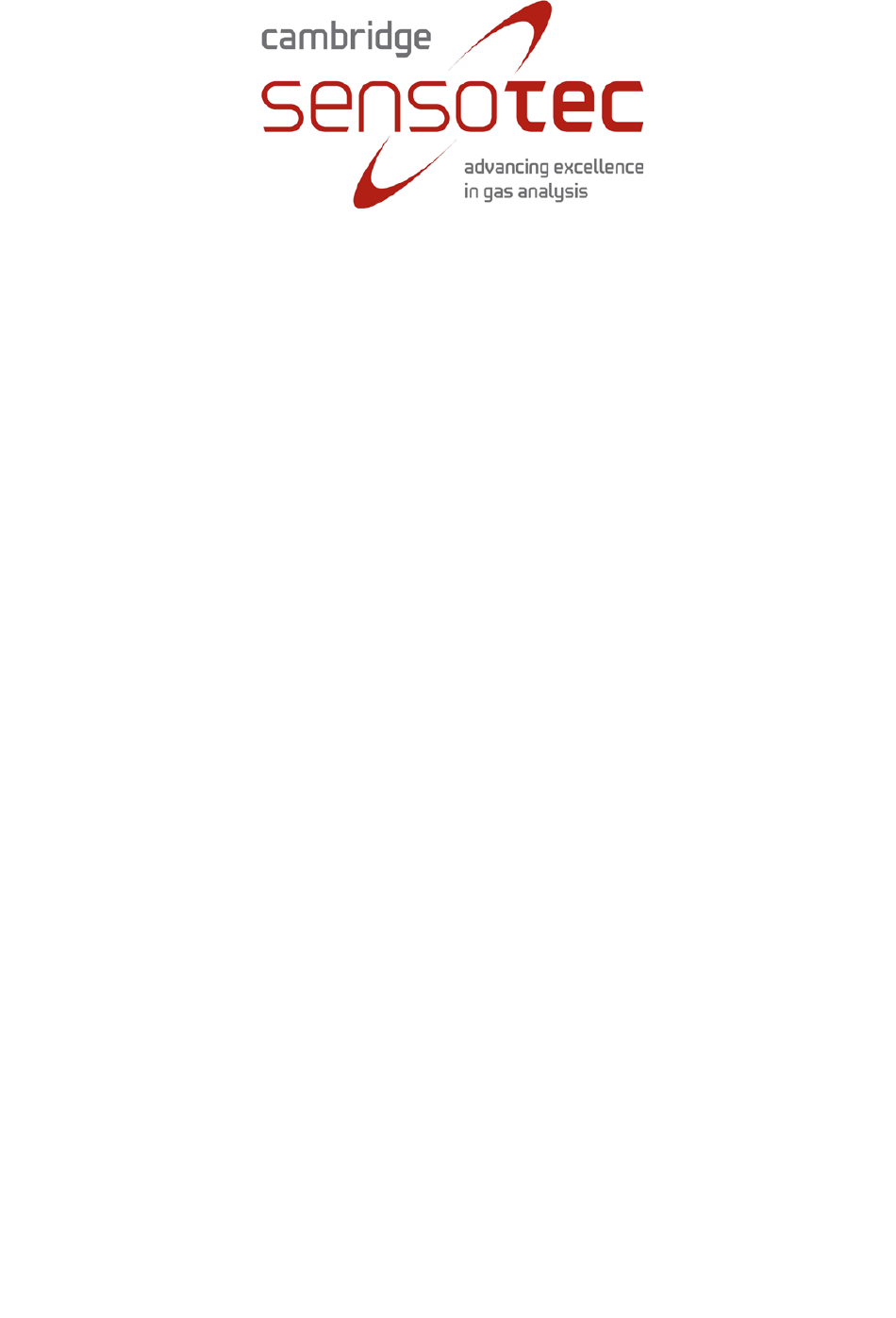

- Page 1 Rapidox 1100ZR-H-PFC-E Oxygen Analyser with Vacuum Ejector (Heller Specific Version) Instruction Manual Revision 1.2 Cambridge Sensotec Limited Unit 29 Stephenson Road St Ives CAMBS PE27 3WJ Tel. +44 (0)1480 462142 Fax +44 (0)1480 466032 Mobile (07866) 624236 Sales@Cambridge-Sensotec.co.uk...
- Page 2 UK users only: If you have purchased any electronic or electrical product from Cambridge Sensotec since 2007 and would like to dispose of it correctly under the WEEE scheme, please contact us and we will be happy to either arrange the collection of the waste or have it returned to our offices for recycling.
-
Page 3: Table Of Contents
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Contents Introduction ......................1 Features ......................... 1 Heller Specific Features ..................2 Technical Specification ..................2 Precautions ......................3 Warning ......................... 3 Rapidox Operating Instructions ................3 PFC Connections ................... 4 The Rapidox Analyser - Menu System ............5 Getting Started .................... - Page 4 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Running the Data Logger ................32 Auto Date Stamped Files ................33 Live Time Graphing Screen ................ 34 Main Graph Window ................... 34 Plot Colours....................35 Graph Titles and Labels ................35 9.10...
-
Page 5: Introduction
4 seconds for a 90% response to a step change in gas compositions. The Rapidox 1100ZR-H-PFC-E is a fully integral unit complete with a vacuum ejector system that works off compressed air to give maintenance free sample pumping up to 1L.min... -
Page 6: Heller Specific Features
Compressed air consumption Approx 5l.min at 2 bar setting Max. gas temperature on input 60°C Requires 2 or 3 user-selectable gas Calibration compositions (air is default plus another two) Table 1: Rapidox 1100ZR-H-PFC-E technical specification Version 1.2 Last printed 22/07/2015 18:08:00... -
Page 7: Precautions

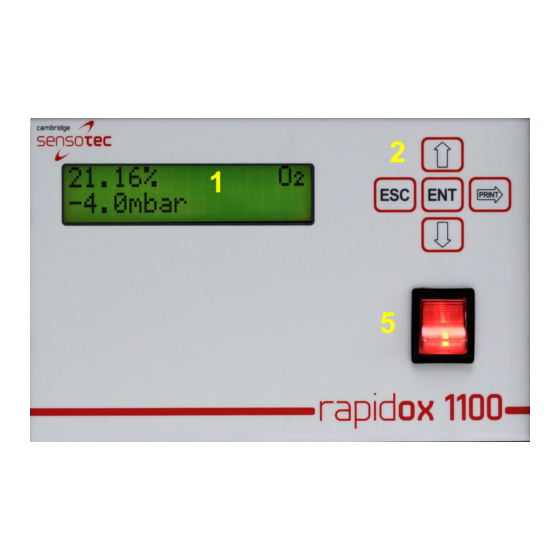

7 Rapidox Operating Instructions Figure 1: Rapidox 1100ZR-H-PFC-E front panel. Numbers are referred to in the text. Note that the pressure reading is DISABLED in the Heller versions. -
Page 8: Pfc Connections
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Figure 2: Rapidox 1100ZR-H-PFC-E rear panel. Numbers are referred to in the text. 7.1 PFC Connections On the rear of the PFC coded machines are two terminals labelled “PFC Valve 4- 20mA” and “Supply Valve (In)”. -
Page 9: The Rapidox Analyser - Menu System
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 7.2 The Rapidox Analyser - Menu System All of the user-programmable functions are accessed via a menu system which is controlled using the front panel Keypad (2). To access the menu press the ENT button and to escape and return to the operating screen press ESC at any time. -
Page 10: Display Behaviour
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual corrected by re-calibrating (see section 7.6). 7.4 Display Behaviour Once at temperature the LCD display will show the oxygen reading (in percent or ppm) on line 1. The symbol AL1 or AL2 may also appear in the bottom right of the LCD if the alarm system is enabled and an alarm condition applies. -
Page 11: Rapidox Calibration
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual If the password has been forgotten please contact Cambridge Sensotec who will advise you on how to recover it. 7.6 Rapidox Calibration Full calibration is a simple procedure requiring only two or three gases (one of which is normally air –... - Page 12 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual taken to balance the inlet pressure from the calibration gas cylinder with the back pressure generated by the ejector. When calibrating always make sure the ejector is running and set at 2bar compressed air. Next attach your calibration gas cylinder and adjust the regulator so that the pressure reading on the Rapidox display is between 0 and 25 mbar.
-
Page 13: Cleaning The Sensor
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual If at any time, you encounter difficulties and wish to restore the machine to its factory set calibration, use the configuration software provided and load the default settings (described in section 7.16 below). Each machine is provided with a unique file that contains the factory settings. -
Page 14: Analogue Outputs
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual The next settings configure the behaviour of the alarm. Use the UP & DOWN arrows to select ON or OFF for the following parameters: 1. OUTPUTS: This enables the rear panel relay outputs when ON is selected 2. - Page 15 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual The Rapidox analyser provides various analogue outputs. The standard industrial analogue outputs (0-10V and 4-20mA) for both oxygen, and temperature (or internal pressure) are accessible via the terminal block (6) on the rear panel.
- Page 16 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 2. LOG (ppm): This setting produces an output that is scaled logarithmically between 0V and 10V (or 4 and 20mA). So, for example, if the scale is set to 0V = 0.0001% (1 ppm) and 10V = 100% (1000000 ppm) then 5V would indicate an oxygen reading of 0.1% (1000 ppm).
- Page 17 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 3. RAW (mV): This setting is for certain customers who like to monitor the raw sensor EMF signal. The signal from a sensor goes from approximately -50mV at 100% O through zero at approx 5% O and to +1000mV at extremely low O levels.
- Page 18 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual programmed the new values remain in the memory until they are edited again in the future. To select and modify the pressure outputs scroll down to menu option 4 “Set Outputs” and pres ENT four times. Change the low and high range using the same procedure described above.
-
Page 19: Setting The Display Units
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 7.10 Setting the Display Units The notation used by the display is fully programmable to suit your needs using the keypad (2) or the software provided (section 8.4). The following options are available to you: 1. -
Page 20: Setting The Baud Rate
RS485. Once configured at the factory it is not possible to change unless the unit is returned to Cambridge Sensotec Ltd. Data from the Rapidox is sent on demand to the 9-way 'D' type socket (8) on the rear panel and can be read using a simple terminal programme such as 'HyperTerminal' in Windows, or with the user's own custom software. -
Page 21: Rs232 Protocol
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 7.14.1 RS232 Protocol Oxygen data can be read from the RS232 port at the back of the Rapidox. The default RS232 configuration is 57600-8-N-1, as shown in this example for COM1: Figure 7: Rapidox default COM properties box Alternatively, the baud rate can be reduced to 9600 via the “Set Baud Rate”... - Page 22 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Meaning: Rapidox is still initialising Response: !Sensor heating[CR][LF] Meaning: Rapidox is still heating sensor to operating temperature Response: !Sensor cooling[CR][LF] Meaning: Rapidox is still cooling sensor to operating temperature. This can happen when switching from Normal to Helium operating mode.
-
Page 23: Rs485 Protocol
“D” command was not recognised. Try to send it again. 7.14.2 RS485 protocol Please contact Cambridge Sensotec for further information on this feature. 7.15 Printing If you have purchased the printer option then you have the option to print out various data from the analyser straight on to thermal paper. -
Page 24: Rapidox Software Instructions
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 8 Rapidox Software Instructions 8.1 Software Installation It is possible to programme a range of variables to the Rapidox using an RS232 (or RS485 if configured) link with a PC running MS-Windows (all versions) and the supplied Rapidox software. -
Page 25: On-Screen Help
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Figure 9: Rapidox configuration page. Note the actual values used may differ from those shown above. The yellow status box at the bottom will display confirmation that the Rapidox was found and the result of the last action, or any error messages if there is a problem with communication. -
Page 26: Reconfiguring The Analyser
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual written to the Rapidox, the new variables remain permanent until overwritten. To read the current configuration stored in your Rapidox select ‘Read Analyser Configuration’ from the ‘File’ menu, or click the ‘Read’ button on any of the ‘Config’... -
Page 27: Config 1 Screen
The field parameters are as follows: 8.5.1 Config 1 Screen Oxygen Range: Not available for the Rapidox 1100ZR-H-PFC-E Oxygen Units & Format: See Section 7.10 for a full description. Use the drop down box to select PPM EXPONENTIAL, PPM MIXED, AUTO%/PPM, PRESSURE or N2 BALANCE. -
Page 28: Config 2 Screen
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 8.5.2 Config 2 Screen Figure 11: Configuration 2 page. Note the actual values used may differ from those shown above. Calibration Gas 1, 2 & 3: These boxes are greyed out in this version and the data is for information purposes only. -
Page 29: Alarm Config Screen
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual correction function only and provides enhanced accuracy in the correction. The default is 1013mbar which is the average ambient pressure in the UK. 8.5.3 Alarm Config Screen Figure 12: Alarm configuration screen. Note the actual values used may differ from those shown above. -
Page 30: On-Screen Lcd
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Alarm Setpoints: Use this box to programme the set-point value at which you want the alarm to activate. The units are in %, ppm or mbar depending on which sensor you have assigned to the alarm. - Page 31 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Figure 14: Remote calibration and clean function Use the four buttons to calibrate or clean the sensor directly from the PC. Before calibrating the analyser with gas, make sure that you know the exact O concentration in your gas bottle AND you have a calibration certificate from the gas supplier confirming the concentration.
-
Page 32: Calibration Error Messages
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Enter your new value in the units as instructed and click “OK” to proceed. This value will then be stored until you want to change it again. You will now see the following screen: Figure 17: Calibration Confirmation Screen. -
Page 33: Software Utilities
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual This normally indicates that you are allowing gas from a cylinder set at too high pressure to enter the analyser. Try displaying the pressure reading on the second line of the LCD and adjusting the gas regulator to trim it close to 0 mbar. -
Page 34: Log Diagnostics For
Settings. 8.9.2 Log Diagnostics For Use this option to log diagnostic data that can be e-mailed to Cambridge Sensotec to help diagnose problems. Select the time you want to log the data for and then wait for the logging to complete. During the diagnostic logging period the yellow status box will display the location of the logged data file which will be sent to the main Rapidox program directory. -
Page 35: Rapidox Data-Logging Software
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 9 Rapidox Data-Logging Software 9.1 Introduction The Rapidox software includes a full data logging facility. Data can be saved to a file automatically at regular intervals and the format is compatible with modern spreadsheet programmes such as MS-Excel. -
Page 36: Running The Data Logger
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Figure 21: Data Logging page During logging, data from the analyser is shown in the central area of this page. The data is displayed in the following columns: time (in seconds), the raw signal... -
Page 37: Auto Date Stamped Files
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual The blue progress bar displays the state of completion of the run, and the blue box to the right of it the same information as a percentage. You can stop the run at any time by selecting ‘Stop’... -
Page 38: Live Time Graphing Screen
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 9.6 Live Time Graphing Screen The Rapidox data-logging package includes a live-time graphing facility that allows you to monitor the progress of your data in a graphical format (see Figure 22). To access the graph check the box labelled ‘Show Graph’. The graph will appear in a new window, and can be accessed at any time without disturbing a run that is already in progress. -
Page 39: Plot Colours
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 9.8 Plot Colours The default colours used on the graph are set to blue for oxygen and red for pressure. To change the colours double-click on the coloured axis label at the top of each axis. -
Page 40: Using The Cursor
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual analyser. 9.12 Using the Cursor Clicking and holding the left mouse button with the pointer over the ‘C’ at the top of the plot area activates the cursor, which appears as a vertical dashed line on the plot. -
Page 41: Loading An Old Run
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual display the pressure taken from the internal pressure sensor. The axis is linear and auto-scaling. To select the mode of the secondary axis select ‘view’ and then ‘second axis display’. Choose from ‘none’ or ‘pressure’. -
Page 42: Working With Spreadsheets
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Once the data logging has begun you may change the sample interval time by pausing the data logger and then entering a new value for the time interval. The data logger can then be resumed with the new values in place. Note that you can not change units (e.g. - Page 43 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual For the Rapidox software to communicate with the main oven software using DDE please refer to the following list of possible links that are currently used: PFCControl state: 0 = Off, 1 = Monitor Only, 2 = On "RAPIDOX|Main!PFCControl"...
-
Page 44: Troubleshooting
If so then the heater may be struggling to heat the sensor with such cooling gas present. Does the problem go away if room air is allowed into the analyser? Contact Cambridge Sensotec for advice. If the message continues for around eight minutes then the analyser will give up and indicate that the internal heater has failed and the sensor needs replacing. -
Page 45: Warranty
Refer to the “Troubleshooting” section of your instruction manual to identify and possibly correct the problem. b] If the fault cannot be resolved, please contact the Cambridge Sensotec service and repair centre at the address given on the cover of the manual. - Page 46 Notice in writing of the defects complained of shall be given to Cambridge Sensotec (The Seller) upon their appearance, and b] such defects shall be found to have arisen from the Seller's faulty design, workmanship or materials, and c] The defective goods shall be returned to the Seller's premises at the Purchaser's expense if so requested by the Seller.
-
Page 47: Appendix 1: Proportional Flow Control
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 11 Appendix 1: Proportional Flow Control This appendix to the main Rapidox instruction manual describes the additional software functions that allow proportional flow control (PFC) using a Rapidox analyser. This is used for controlling the oxygen gas inside an oven or similar structure by operating a proportional flow valve. -
Page 48: Prop. Flow Control Tab
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual distinguish it from HW as in ‘HW Alarm Config’ which is the programming of the physical alarm relays on the back of the analyser. 11.3 Prop. Flow Control tab Figure 25: PFC configuration page The on-screen edit boxes below the button labelled ‘write’... - Page 49 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual point control begins again until the reading is established back inside the window. And so on. Regulation Low Point: As described above this value sets the lower limit of the target O window.
- Page 50 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual The value is entered as a positive number between 0 and 100,000 (normally less than 1). Differential Regulation Gain: This is the “D” term in PID control. The D term is a ‘damping’ factor that attempts to prevent the reading overshooting the set-point.
-
Page 51: Sw Alarm Config Tab
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 11.4 SW Alarm Config tab Figure 26: Software Alarm Config tab The SW (software) Alarm Config tab allows the user to set alarms in software to be used by a DDE (dynamic data exchange). The settings here create links for the DDE to interpret using the standard protocol as listed in section 4 below. -
Page 52: Data-Logging With Pfc
Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual 1100ZR3 analyser that is fitted with a multiplexer and is greyed out in this version. Measure Delay (s): This only applies to the multi-channel Rapidox 1100- ZR3-H-PFC-E analyser that is fitted with a multiplexer and introduces a time delay in seconds to allow gas from channels 1/2/3 to flush away before the software alarms become active again. - Page 53 Cambridge Sensotec Rapidox 1100ZR-H-PFC-E O Analyser Instruction Manual Figure 28: Graph page showing how to select and display the PFC value Version 1.2 Last printed 22/07/2015 18:08:00...
- Page 54 APPENDIX 2: MENU FLOWCHART FOR RAPIDOX 1100Z(x)-H-PFC-E 2.095E+05ppm ESC - Back to Menu List. No changes 0.0mbar 1-Calibrate Calib: O High 2.095E+05ppm 2.087E+05ppm 2.095E+05ppm ® ® ® ® ® (prompts 1) (prompts 2) (prompts 3) ..calibrated Edit O High Enter for two seconds to calibrate Displays message for 1.5 seconds Calib: O...
- Page 55 Continued from page 1 ESC - Back to Menu List. No changes 4-Set Outputs out: lin(ppm) 1.000E+01 = 0V 2.500E+05 = 10V ® ® ® ® (prompts 1) (prompts 6) (prompts 3) (prompts 3) (Options: lin(ppm), raw mV, log(ppm)) Edit O (ppm) Edit O (ppm)
- Page 56 ESC - Back to Menu List. No changes Continued from page 2 9-Load Defaults Load Defaults? ® ® ® Defaults Loaded (prompts 1) (prompts 4) Enter for two seconds to load defaults Displays message for 1.5 seconds 10 - Password Menu Password: 0*** Password: Enable Password: Enable...
