Summary of Contents for ASROCK Z690M-ITX/ax

  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...
  • Page 4 ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide,...
  • Page 5 CE Warning This device complies with directive 2014/53/EU issued by the Commision of the European Community. This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...

  • Page 6: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz Antennas Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slot (PCI Express Slot)
  • Page 7 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting Nahimic Audio ASRock Polychrome SYNC Chapter 4 UEFI SETUP UTILITY Introduction EZ Mode Advanced Mode 4.3.1 UEFI Menu Bar 4.3.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.6.1 CPU Configuration...
  • Page 8 4.10 Boot Screen 4.11 Exit Screen...

  • Page 9: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 10: Specifications

    • 2 x DDR4 DIMM Slots • Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) • Supports ECC UDIMM memory modules (operate in non- ECC mode) • Max.
  • Page 11 Z690M-ITX/ax • Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (8192x4320) @ 60Hz / 5K (5120x3200) @ 120Hz • Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec) • Supports Surge Protection...
  • Page 12 * Supports Intel® Optane Technology * Supports Intel® Volume Management Device (VMD) * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe...
  • Page 13 Z690M-ITX/ax • 1 x Chassis Fan Connector (4-pin) * The Chassis Fan Connector supports the chassis fan of maxi- mum 1A (12W) fan power. • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  • Page 14 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 15: Motherboard Layout

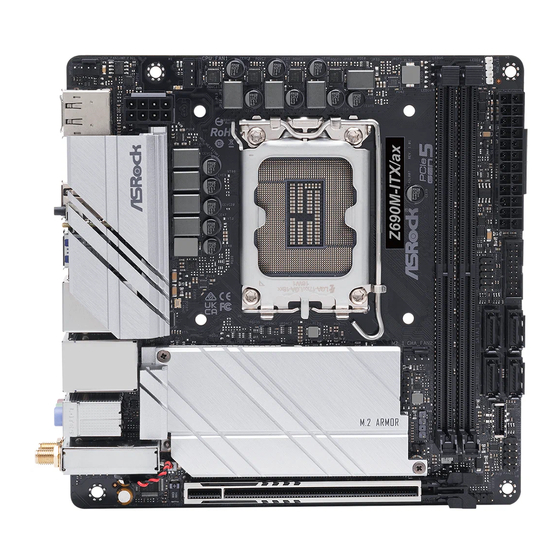

    Z690M-ITX/ax 1.3 Motherboard Layout CHA_FAN1/WP RGB_LED1 CPU_FAN1 RoHS USB 3.2 Gen2 T: USB_1 B: USB_2 USB_56 CHA_FAN2 Intel Z690 F_USB3_TC_1 CLRMOS1 M2_WIFI1 PANEL1 PCIE1 HD_AUDIO1...
  • Page 16 No. Description Chassis/Waterpump Fan Connector (CHA_FAN1/WP) ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) RGB LED Header (RGB_LED1) ATX Power Connector (ATXPWR1) USB 2.0 Header (USB_56) USB 3.2 Gen1 Header (USB3_12) SATA3 Connector (SATA3_1) SATA3 Connector (SATA3_0) SATA3 Connector (SATA3_3)

  • Page 17: I/O Panel

    Z690M-ITX/ax 1.4 I/O Panel No. Description No. Description DisplayPort 1.4 USB 3.2 Gen2 Type-A Port (USB31_TA_1) BIOS Flashback Button USB 3.2 Gen2x2 Type-C Port (USB32_TC_1) LAN RJ-45 Port (Intel® I219V)* USB 2.0 Port (USB_3) 2.5G LAN RJ-45 Port (Dragon RTL8125BG)** 12 USB 3.2 Gen2 Port (USB_4)
  • Page 18 ** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description No Link 10Mbps connection Blinking Data Activity Orange...

  • Page 19: 802.11Ax Wi-Fi 6E Module And Asrock Wifi 2.4/5/6 Ghz Antennas

    Z690M-ITX/ax 1.5 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz Antennas 802.11ax Wi-Fi 6E + BT Module This motherboard comes with an exclusive 802.11 a/b/g/n/ax Wi-Fi 6E + BT module (pre-installed on the rear I/O panel) that offers support for 802.11 a/b/g/n/ax Wi- Fi 6E connectivity standards and Bluetooth.
  • Page 20 WiFi Antennas Installation Guide Step 1 Prepare the WiFi 2.4/5/6 GHz Antennas that come with the package. Step 2 Connect the two WiFi 2.4/5/6 GHz Antennas to the antenna connectors. Turn the antenna clockwise until it is securely connected. Step 3 Set the WiFi 2.4/5/6 GHz Antenna as shown in the illustration.

  • Page 21: Chapter 2 Installation

    Z690M-ITX/ax Chapter 2 Installation This is a Mini-ITX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 22: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
  • Page 23 Z690M-ITX/ax...
  • Page 24 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 25: Installing The Cpu Fan And Heatsink

    Z690M-ITX/ax 2.2 Installing the CPU Fan and Heatsink...

  • Page 26: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2.
  • Page 27 Z690M-ITX/ax...

  • Page 28: Expansion Slot (Pci Express Slot)

    2.4 Expansion Slot (PCI Express Slot) There is 1 PCI Express slot on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 29: Jumpers Setup

    Z690M-ITX/ax 2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper...

  • Page 30: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power (9-pin PANEL1) switch, reset switch and...
  • Page 31 Z690M-ITX/ax Serial ATA3 Connectors These four SATA3 (SATA3_0: connectors support SATA see p.7, No. 10) data cables for internal (SATA3_1: storage devices with up to see p.7, No. 9) 6.0 Gb/s data transfer rate. (SATA3_2: see p.7, No. 12) (SATA3_3: see p.7, No.
  • Page 32 Front Panel Audio Header This header is for PRESENCE# (9-pin HD_AUDIO1) connecting audio devices MIC_RET OUT_RET (see p.7, No. 19) to the front audio panel. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 33 Z690M-ITX/ax CPU Fan Connector This motherboard pro- FAN_SPEED_CONTROL (4-pin CPU_FAN1) vides a 4-Pin CPU fan FAN_SPEED +12V (see p.7, No. 3) (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. ATX Power Connector...
  • Page 34 Addressable LED Header This header is used to connect (3-pin ADDR_LED1) Addressable LED extension cable (see p.7, No. 15) which allows users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged.

  • Page 35: Smart Button

    (BIOS_FB1_PH1) users to flash the BIOS. (see p.9, No. 2) ASRock BIOS Flashback feature allows you to update BIOS without powering on the system, even without CPU. Before using the BIOS Flashback function, please suspend BitLocker and any encryp- tion or security relying on the TPM. Make sure that you have already stored and backup-ed the recovery key.

  • Page 36: M.2_Ssd (Ngff) Module Installation Guide (M2_1 And M2_2)

    2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1 and M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode. The Hyper M.2 Socket (M2_2, Key M) supports type 2280 SATA3 6.0 Gb/s &...
  • Page 37 Z690M-ITX/ax Step 3 Before installing a M.2 (NGFF) SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module. Step 4 Align and gently insert the M.2...
  • Page 38 XP941-512G (MZHPU512HCGL) SanDisk PCIe SD6PP4M-128G SanDisk PCIe SD6PP4M-256G TEAM PCIe3 x4 TM8FP2240G0C101 TEAM PCIe3 x4 TM8FP2480GC110 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
  • Page 39 Z690M-ITX/ax M.2_SSD (NGFF) Module Support List (M2_2) Vendor Interface ADATA SATA3 AXNS330E-32GM-B ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA PCIe3 x4 ASX8000NP-512GM-C...
  • Page 40 SATA3 VLM100-120G-2280B-RD V-Color SATA3 VLM100-240G-2280RGB V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD SATA3 WDS100T1B0B-00AS40 SATA3 WDS240G1G0B-00RC30 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...

  • Page 41: Chapter 3 Software And Utilities Operation

    Z690M-ITX/ax Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 42: Asrock Motherboard Utility (A-Tuning)

    3.2.1 Installing ASRock Motherboard Utility (A-Tuning) ASRock Motherboard Utility (A-Tuning) can be downloaded from ASRock Live Update & APP Shop. After the installation, you will find the icon “ASRock Mother- board Utility (A-Tuning)“ on your desktop. Double-click the “ASRock Motherboard Utility (A-Tuning)“...
  • Page 43 Z690M-ITX/ax OC Tweaker Configurations for overclocking the system. System Info View information about the system. *The System Browser tab may not appear for certain models.
  • Page 44 Settings Configure ASRock ASRock Motherboard Utility (A-Tuning). Click to select "Auto run at Windows Startup" if you want ASRock Motherboard Utility (A-Tuning) to be launched when you start up the Windows operating system.

  • Page 45: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News...

  • Page 46: Apps

    3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. The most recommended app appears on the left side of the screen. The other various apps are shown on the right.
  • Page 47 Z690M-ITX/ax Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can find the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon...
  • Page 48 Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will find the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details. Step 2 Click on the yellow icon to start upgrading.

  • Page 49: Bios & Drivers

    Z690M-ITX/ax 3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update. Click on to see more details.

  • Page 50: Setting

    3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 51: Nahimic Audio

    Z690M-ITX/ax 3.4 Nahimic Audio Nahimic audio software provides an incredible high definition sound technology which boosts the audio and voice performance of your system. Nahimic Audio interface is composed of four tabs : Audio, Microphone, Sound Tracker and Settings. There are four functions in Nahimic audio :...

  • Page 52: Asrock Polychrome Sync

    3.5 ASRock Polychrome SYNC ASRock Polychrome SYNC is a lighting control utility specifically designed for unique indi- viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
  • Page 53 Z690M-ITX/ax Connecting the Addressable RGB LED Strip Connect your Addressable RGB LED strips to the Addressable LED Header (ADDR_LED1) on the motherboard. ADDR_LED1 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 54 ASRock Polychrome SYNC Utility Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way! Drag the tab to customize your preference.

  • Page 55: Chapter 4 Uefi Setup Utility

    Z690M-ITX/ax Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 56: Ez Mode

    4.2 EZ Mode The EZ Mode screen appears when you enter the BIOS setup program by default. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

  • Page 57: Advanced Mode

    Z690M-ITX/ax 4.3 Advanced Mode The Advanced Mode provides more options to configure the BIOS settings. Refer to the following sections for the detailed configurations. To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right corner of the screen.

  • Page 58: Navigation Keys

    4.3.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 59: Main Screen

    Z690M-ITX/ax 4.4 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The availability and location of BIOS settings can be different for different models and BIOS versions. My Favorite Display your collection of BIOS items. Press F5 to add/remove your favorite items.

  • Page 60: Oc Tweaker Screen

    4.5 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 61 Z690M-ITX/ax Core Ratio Extension Mode Enable or disable core ratio above 85 Extension mode. [Enabled] Max overclocking ratio limit as specified by OCMB 0x1 command is 120 [Disabled] Max overclocking ratio limit as specified by OCMB 0x1 command is 85.
  • Page 62 cies and voltage points for better power saving and heat dissipation. Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. Intel Speed Shift Technology Enable/Disable Intel Speed Shift Technology support.
  • Page 63 Z690M-ITX/ax Enabled. CPU Core Current Limit Configure the current limit of the CPU core. A lower limit can protect the CPU and save power, while a higher limit may improve performance. GT Unlimited Current Limit To unlock voltage regulator current limit completely, you can set this option to Enabled.
  • Page 64 RAS# to CAS# Delay and Row Precharge (tRCDtRP) RAS# to CAS# Delay : The number of clock cycles required between the opening of a row of memory and accessing columns within it. Row Precharge: The number of clock cycles required between the issuing of the precharge command and opening the next row.
  • Page 65 Z690M-ITX/ax Third Timing tREFI Configure refresh cycles at an average periodic interval. tCKE Configure the period of time the DDR4 initiates a minimum of one refresh command internally once it enters Self-Refresh mode. Turn Around Timing Turn Around Timing Optimization Auto is enabled in general case.
  • Page 66 tWRRD_dg Configure between module write to read delay. tWRRD_dr Configure between module write to read delay. tWRRD_dd Configure between module write to read delay. tWRWR_sg Configure between module write to write delay. tWRWR_dg Configure between module write to write delay. tWRWR_dr Configure between module write to write delay.
  • Page 67 Z690M-ITX/ax tRDWR_dr Configure between module write to read delay. tRDWR_dd Configure between module write to read delay. tWRRD_sg Configure between module write to read delay. tWRRD_dg Configure between module write to read delay. tWRRD_dr Configure between module write to read delay.
  • Page 68 Initial RTL FIF0 Delay Offset Configure round trip latency FIF0 delay initial offset. Initial RTL (MC0 C0 A1) Configure round trip latency initial value. Initial RTL (MC0 C1 A1) Configure round trip latency initial value. Initial RTL (MC1 C0 B1) Configure round trip latency initial value.
  • Page 69 Configure the memory on die termination resistors' PARK for channel B1. Advanced Setting ASRock Timing Optimization Configure the fast path through the MRC. ASRock Second Timing Optimization Configure the second fast path through the MRC. Realtime Memory Timing Configure the realtime memory timings.
  • Page 70 CPU Core/Cache Load-Line Calibration CPU Core/Cache Load-Line Calibration helps prevent CPU Core/Cache voltage droop when the system is under heavy loading. CPU GT Voltage Configure the voltage for the integrated GPU. CPU GT Load-Line Calibration GT Load-Line Calibration helps prevent integrated GPU voltage droop when the system is under heavy load.
  • Page 71 Z690M-ITX/ax 17.5mV. This is used to increase the range of the domain frequency in extreme overclocking conditions. Enter 0 to use the manufacturer default value. Ring PLL Voltage Offset Use this feature to set the PLL Voltage Offset value from 0-15 with each unit at 17.5mV.
  • Page 72 OverClocking Feature to initialize the default value. In Legacy Mode, setting a global offset for the entire VF curve. In Selection modes, setting a selected VF point. VF Configuration Scope Allows all cores VF curve or per-core VF curve configuration. Core Voltage Offset Specifies the offset voltage applied to the IA Core domain.
  • Page 73 Z690M-ITX/ax OverClocking Feature to initialize the default value. In Legacy Mode, setting a global offset for the entire VF curve. In Selection modes, setting a selected VF point. Ring Voltage Offset Specifies the Offset Voltage applied to the Ring domain. This voltage is specified in millivolts.
  • Page 74 Save User Default Type a profile name and press enter to save your settings as user default. Load User Default Load previously saved user defaults. Save User UEFI Setup Profile to Disk It helps you to save current UEFI settings as an user profile to disk. Load User UEFI Setup Profile from Disk You can load previous saved profile from the disk.

  • Page 75: Advanced Screen

    Z690M-ITX/ax 4.6 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 76: Cpu Configuration

    4.6.1 CPU Configuration Processor E-Core Information This item displays the E-Core Information. Processor P-Core Information This item displays the P-Core Information. Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Pre-Core Hyper Threading The Pre-Core Hyper Threading feature allows you to disable Hyper Threading on specific cores.
  • Page 77 Z690M-ITX/ax C7 enabled for better power saving. Enhanced Halt State (C1E) Enable Enhanced Halt State (C1E) for lower power consumption. CPU C6 State Support Enable C6 deep sleep state for lower power consumption. CPU C7 State Support Enable C7 deep sleep state for lower power consumption.
  • Page 78 Legacy Game Compatibility Mode When enabled, pressing the scroll lock key will toggle the Efficient cores between be- ing parked when Scroll Lock LED is on and un-parked when LED is off.

  • Page 79: Chipset Configuration

    Z690M-ITX/ax 4.6.2 Chipset Configuration Primary Graphics Adapter Select a primary VGA. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding). C.A.M (Clever Access Memory) If system has Resizable BAR capable PCIe Devices, use this option to enable or disable Resizable BAR support (only of the system supports 64-bit PCI decoding).
  • Page 80 PCIE1 Link Speed Select the link speed for PCIE1. PCI Express Native Control Select Enable for enhanced PCI Express power saving in OS. PCIE ASPM Support This option enables/disables the ASPM support for all CPU downstream devices. PCH PCIE ASPM Support This option enables/disables the ASPM support for all PCH PCIE devices.
  • Page 81 Z690M-ITX/ax Onboard HDMI HD Audio Enable audio for the onboard digital outputs. Riser Card Support Select the width of Riser Card Support function. Onboard WAN Device Use this item to enable or disable the onboard WAN device. Deep Sleep Configure deep sleep mode for power saving when the computer is shut down.

  • Page 82: Storage Configuration

    4.6.3 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode Selection AHCI: Supports new features that improve performance. Hybrid Storage Detection and Configuration Mode This item allows you to select Hybrid Storage Detection and Configuration Mode. SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power.

  • Page 83: Acpi Configuration

    Z690M-ITX/ax 4.6.4 ACPI Configuration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN.

  • Page 84: Usb Configuration

    4.6.5 USB Configuration Legacy USB Support Enable Legacy OS Support for USB devices. UEFI setup Only option will keep USB devices available only for EFI applications. XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

  • Page 85: Trusted Computing

    Z690M-ITX/ax 4.6.6 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Use this item to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 86 NOTE: Your computer will reboot during restart in order to change State of the Device. Platform Hierarchy Use this item to enable or disable Platform Hierarchy. Storage Hierarchy Use this item to enable or disable Storage Hierarchy. Endorsement Hierarchy Use this item to enable or disable Endorsement Hierarchy. Physical Presence Spec version Select this item to tell OS to support PPI spec version 1.2 or 1.3.

  • Page 87: Tools

    ASRock Polychrome RGB Select LED lighting color. UEFI Tech Service Contact ASRock Tech Service if you are having trouble with your PC. Please setup network configuration before using UEFI Tech Service. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device.
  • Page 88 Intel MEI Flash Starts BIOS recovery flash. Internet Flash - DHCP (Auto IP), Auto ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you. Please setup network configuration before using Internet Flash. *For BIOS backup and recovery purpose, it is recommended to plug in your USB pen drive before using this function.

  • Page 89: Hardware Health Event Monitoring Screen

    Z690M-ITX/ax 4.8 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. Fan Tuning Measure Fan Min Duty Cycle.
  • Page 90 Chassis Fan 1 Control Mode Select PWM mode or DC mode for Chassis Fan 1. Chassis Fan 1 Setting Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature. Chassis Fan 1 Temp Source Select a fan temperature source for Chassis Fan 1.

  • Page 91: Security Screen

    Z690M-ITX/ax 4.9 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.
  • Page 92 4.10 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. The VBIOS must support UEFI GOP if you are using an external graphics card.
  • Page 93 Z690M-ITX/ax Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.
  • Page 94 execute both legacy and UEFI option ROM. Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.
  • Page 95 Z690M-ITX/ax 4.11 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit...
  • Page 96 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
  • Page 97 DECLARATION OF CONFORMITY Per FCC Part 2 Section 2.1077(a) Responsible Party Name: ASRock Incorporation Address: 13848 Magnolia Ave, Chino, CA91710 Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard Z690M-ITX/ax Model Number : Conforms to the following speci cations:...
  • Page 98 EU Declaration of Conformity For the following equipment: Motherboard (Product Name) Z690M-ITX/ax / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) Radio Equipment Directive - 2014/53/EU EN 300 328 V2.2.2...
