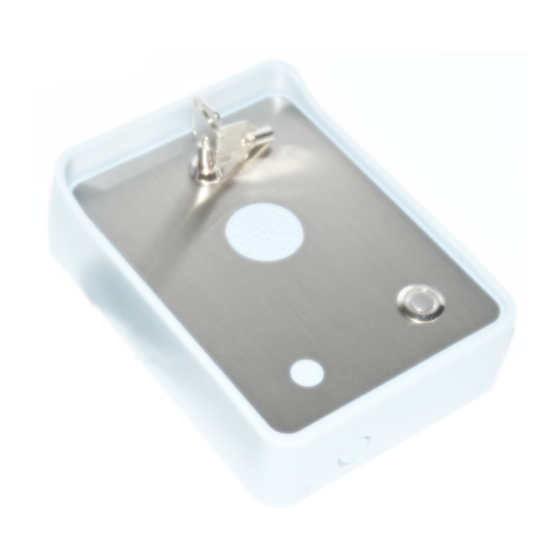

- Page 1 GSM-HOUSE INTERCOM UNIT GSM-HOUSE MANUAL New version V2.3/2019...
-
Page 2: Product Description
For the "GSM-KEY" function, the device has a whitelist that allows call control. When the GSM-HOUSE receives a call, it will check if the call number is in the whitelist. If in the list, it will control the relay output on the device while rejecting the call. -
Page 3: Installation

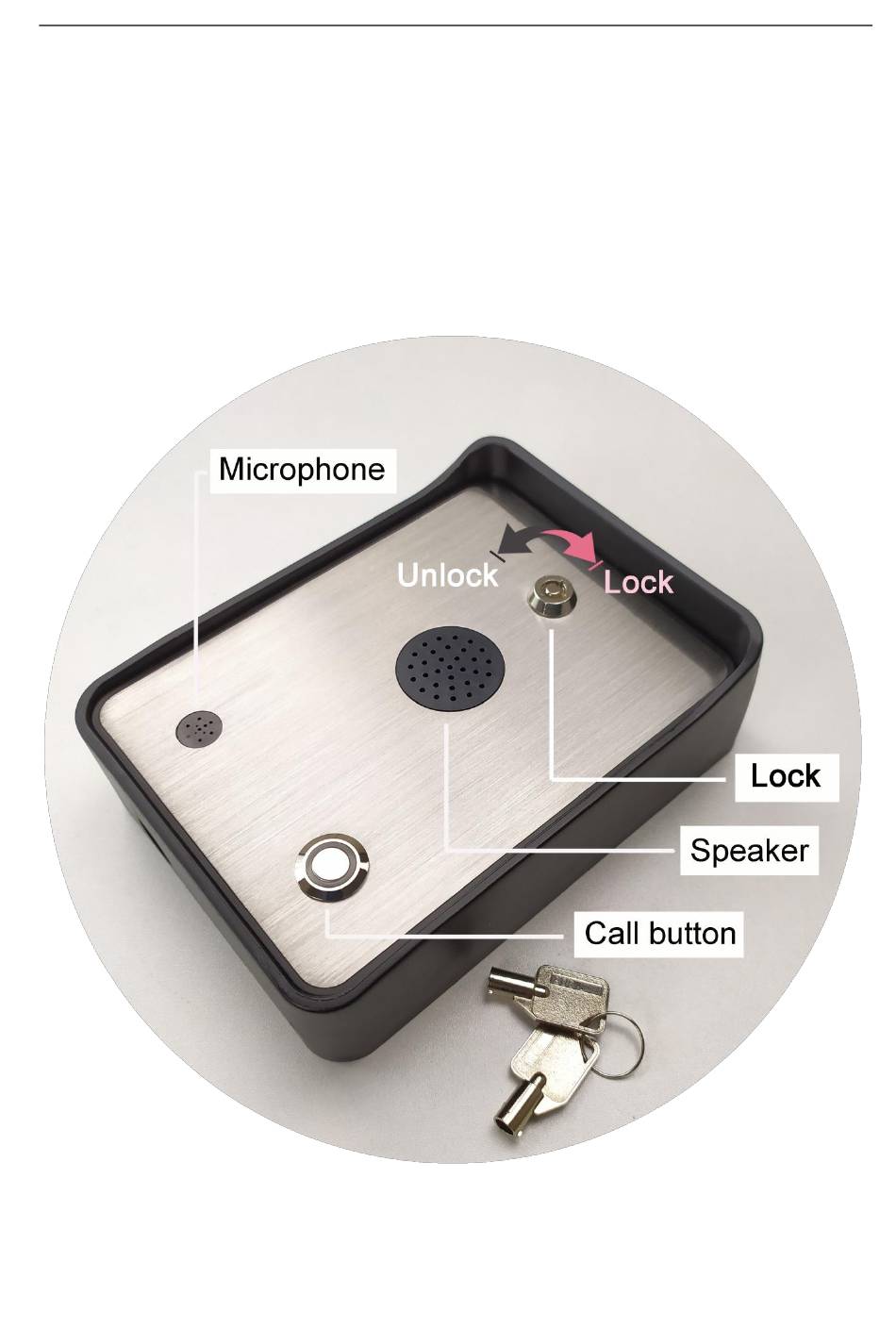

The GSM unit requires mounting carefully with the lock for proper operation. To install the GSM-HOUSE, you need to connect the 2 wires of the relay contact in parallel with the gate opening button. The relay contacts can stand 30V 2A maximum, this is enough for its operation but don't try to switch higher voltages or currents. -
Page 4: Operation Mode
GSM-HOUSE INTERCOM UNIT OPERATION mode: Visitor mode: When the visitor pushes the call button,the device initiates a voice call to the configured phone number,if the called person accepts the call,the communication establishes for the configured duration.During the call,the connection can be stopped by pressing the button again.The call is ended automatically when the configured communication time expires or the called party ends the call. -
Page 5: Sms Command List
GSM-HOUSE INTERCOM UNIT WAFER GSM-HOUSE PROGRAMMING You can program the GSM-HOUSE with SMS commands using your phone. It is safe to do so because in addition to the fact that other people may not know the number of the SIM inserted in it, we also use a Password that makes it impossible for anybody who doesn't know it to access the system by chance. - Page 6 GSM-HOUSE INTERCOM UNIT #GSM Intercom function and config command 1. Add the phone number for the inter calling #PWD123456#DIAL01=180122333 #PWD123456#DIAL02=181323344 Reply: DIAL01 SET TO 122333 OK Reply: DIAL02 SET TO 323344 OK 2. Inquiry the intercom calling number in the memory...
- Page 7 GSM-HOUSE INTERCOM UNIT #SHL, #PHL, #QHL Special List. Authorize the number by the time of the week #PWD123456#SHL001=13564121668:1357(8:32-23:59) Acknowledge : SHL001 SETUP TO 61143815:1357(8:32-23:59) ### SHL001 number would operate from 8:32 to 23:59 in Mon,Wen,Fri,Sun in every week. Authorize the number by the date and time...
- Page 8 GSM-HOUSE INTERCOM UNIT #GOT Relay working output delay time. (Only for NO.1 Relay) Setup the timer data with multiplier at millisecond or second or minutes. #PWD123456#GOT5000:MILLISECOND Acknowledge:DELAY TIME SET TO 5000 MS #PWD123456#GOT500:SECOND Acknowledge:DELAY TIME SET TO 0500 S #PWD123456#GOT500:MINUTE Acknowledge:DELAY TIME SET TO 0500 M This command is useful in case you need to keep the Relay output working longer.
- Page 9 #CSQ Check GSM signal quality. This command is useful to see what is the GSM network signal level your GSM-HOUSE is receiving. It ranges from 0 to 32.You should have a signal above 12 to be sure of being able to open the gate in any condition.
- Page 10 GSM-HOUSE INTERCOM UNIT Customized output control command TEXT: #REPLY SMS reply OFF or ON #PWD123456#REPLY=ON Acknowledge: REPLY SET TO ON When setup to ON,then Device will reply the customized command after Relay is toggled #PWD123456#REPLY=OFF Acknowledge: REPLY SET TO OFF...
- Page 11 GSM-HOUSE INTERCOM UNIT #Battery working and alarm command (Battery alarm SMS all send to the ALARM phone numbers) #PWD123456#POWER-CHANGE-ALARM:ON,BCPW-LOW-ALARM:ON:60 POWER-CHANGE-ALARM: ON or OFF to enable or disable the power change alarm BCPW-LOW-ALARM: When the Remaining battery power is lower than 60%,will send the alarm SMS...
