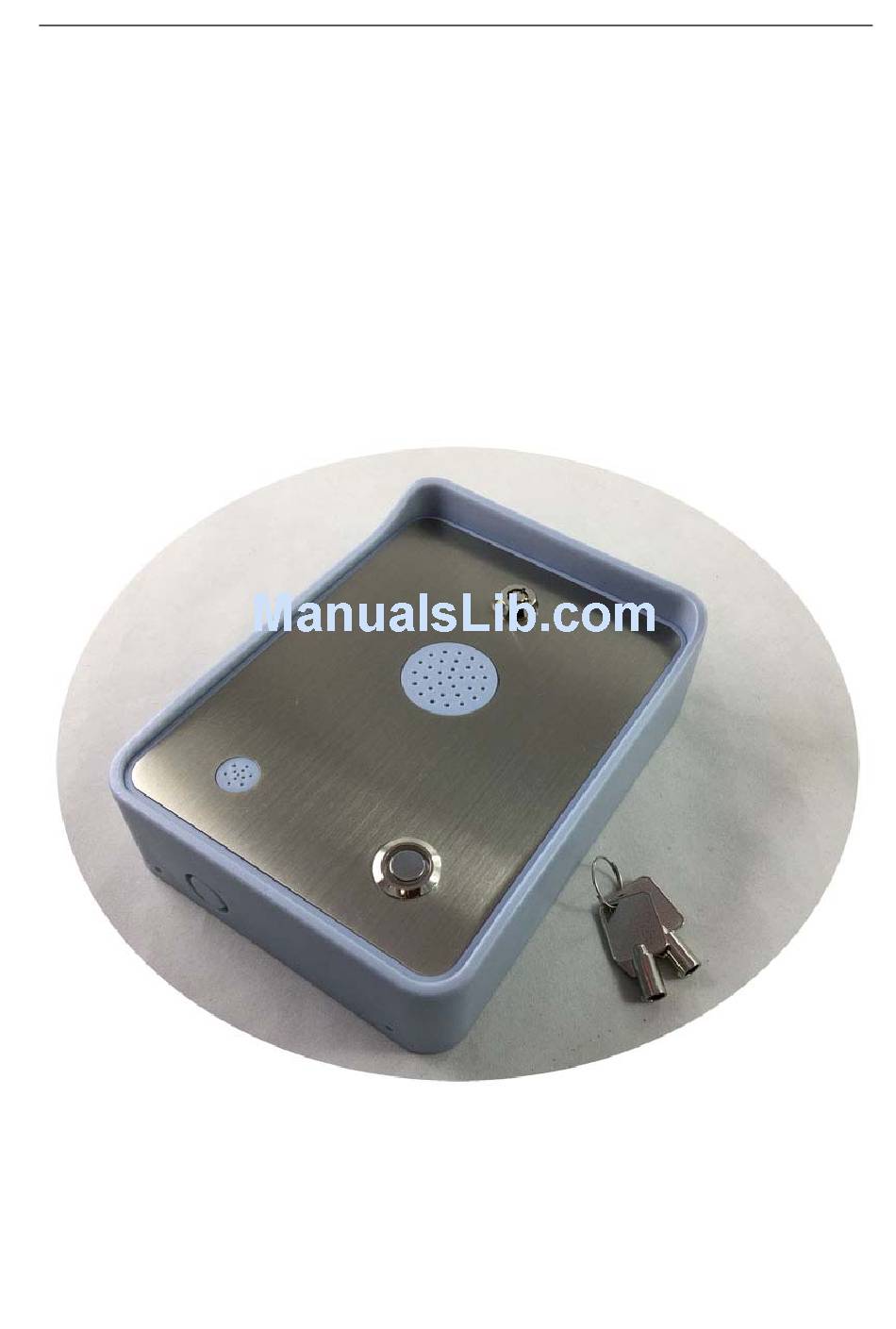

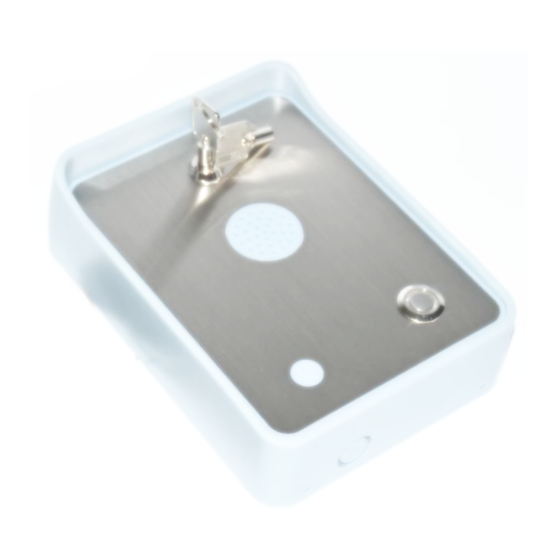

- Page 1 WAFER GSM-HOUSE INTERCOM UNIT GSM-HOUSE MANUAL New version published from 2016 SHANGHAI WAFER MICROELECTRONICS CO.,LTD http://www.waferstar.com...
-
Page 2: Product Description
It has a White List of numbers who are enabled to open the phone, up to 200. When the GSM-HOUSE receives a call, it will check to see if the calling number is in the list. If it is in the list it will reject the call (so there will be no charge -at least with today's charging procedures) and click the relay momentarily. -
Page 3: Installation
To install the GSM-HOUSE, you need to connect the 2 wires of the relay contact in parallel with the gate opening button. The relay contacts can stand 30V 2A maximum, this is enough for its operation but don't try to switch higher voltages or currents. - Page 4 5 seconds per time.then we can start the following test: WAFER GSM-HOUSE PROGRAMMING You can program the GSM-HOUSE with SMS commands using your phone. It is safe to do so because in addition to the fact that other people may not know the number of the SIM inserted in it, we also use a Password that makes it impossible for anybody who doesn't know it to access the system by chance.
-
Page 5: Operation Mode
WAFER GSM-HOUSE INTERCOM UNIT OPERATION mode: Visitor mode: When the visitor pushes the call button,the device initiates a voice call to the configured phone number,if the called party accepts the call,the communication establishes for the configured duration.During the call,the connection cann’t be stopped by pressing the button again.The call is ended automatically when the configured communication time expires or the called party ends the call. -
Page 6: Sms Command List
WAFER GSM-HOUSE INTERCOM UNIT The following compand is used in the GSM-HOUSE : #PWD: Password #CAP: Change password #WHL: White List (add or remove numbers) #GOT: Gate pulse time #ALARM: Alarm information setting #MODE: Relay mode #CSQ: Check Signal Quality... - Page 7 WAFER GSM-HOUSE INTERCOM UNIT Please note that it is possible to program up to a maximum of 10 digits for a number. If it has more digits you should use the rightmost ones. For example, if your number is 33446665555 you should program 3446665555.
- Page 8 DELAY TIME IS 05000 MS #ALARM Alarm setup In GSM-HOUSE V2015,that Alarm01 is very important position,not only act as a alarm number,but also working as the REPORT phone number, that means if you enable the REPORT function,then every report event happen,then would send the REPORT SMS to this number...
- Page 9 WAFER GSM-HOUSE INTERCOM UNIT Acknowledge : ALARM01 SET TO 61143815 OK When the number is seted to 000000,that means delete the number in this position check which is the number in a place of the alarm phone list: (PC$PHONE) #PWD123456#ALARM01?
- Page 10 WAFER GSM-HOUSE INTERCOM UNIT signal level your GSM-HOUSE is receiving. It ranges from 0 to 32 (if it is 0 we doubt it will ever answer...). You should have a signal above 12 to be sure of being able to open the gate in any condition.
- Page 11 WAFER GSM-HOUSE INTERCOM UNIT Check the Customized command text: #PWD123456#OUT1-TEXT? Reply: OPEN1-TEXT=OPEN1,CLOSE1-TEXT=CLOSE1,TRIG1-TEXT=DIAN1 #PWD123456#OUT2-TEXT? Reply: OPEN2-TEXT=OPEN2,CLOSE2-TEXT=CLOSE2,TRIG2-TEXT=DIAN2 For example,you send the command: #PWD123456#OPEN1-TEXT#GATE1 OPEN Reply: OPEN TEXT1 IS GATE1 OPEN Then you can use the simple SMS: GATE1 OPEN to switch on the output1 relay...
- Page 12 WAFER GSM-HOUSE INTERCOM UNIT #GSM Intercom function and config command 1. Add the phone number for the inter calling #PWD123456#DIAL01=180122333 #PWD123456#DIAL02=181323344 Reply: DIAL01 SET TO 122333 OK Reply: DIAL02 SET TO 323344 OK Inquiry the intercom calling number in the memory...
- Page 13 This brochure provides an overview of the products and services of WEIFU GSM Modules, For further information and queries kindly contact: Email: wafer@waferstar.com Web: www.waferstar.com Tel: 0086-21-51870528 Also accessible via our online Service Skype: wafer-service If you need any sample order,please check our online store: Http://www.wafer-shopping.com Copyright 2015, WEFU GSM V2016-V2.1 http://www.waferstar.com...
