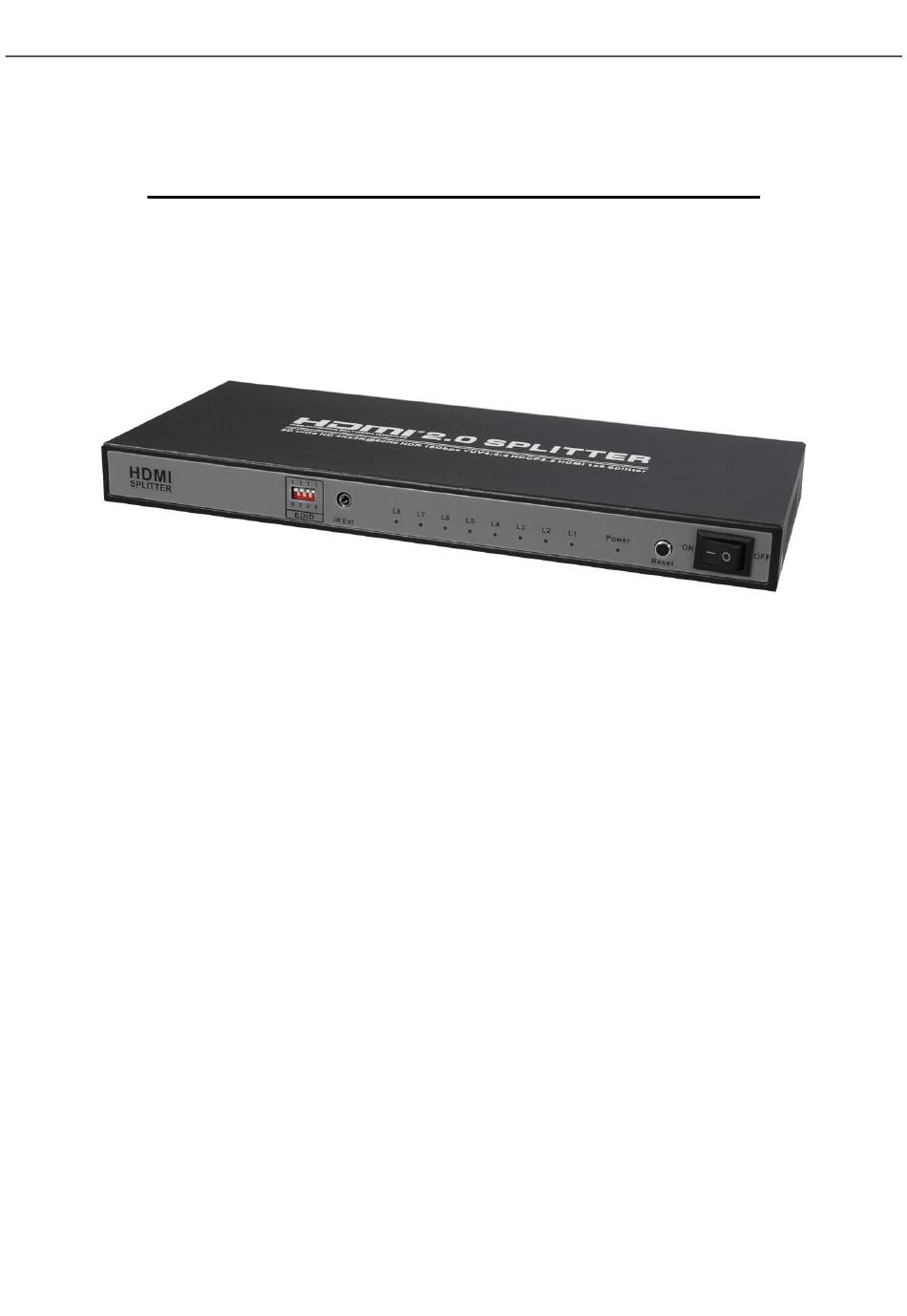

- Page 1 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X8 Splitter HDMI SPLITTER CS 25-8 L User Manual HDMI2.0 1x8 Splitter (3D Ultra HD 4Kx2K@60Hz HDCP2.2) Bring High-Definition to your life!
- Page 2 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X8 Splitter 1.0 Introduction: HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect. HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
- Page 3 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X8 Splitter 5.0 Panel Introduction EDID --------------------------------------------EDID Setting button IR Ext-------------------------------------------------without function L1-L8-----------------------------------------HDMI Output Indicator Power-------------------------------------------------Power Indicator Reset-----------------------------------------------------Reset button ON/OFF-------------------------------------------------Power Switch DC/5V------------------------------------------------Power Input port HDMI Output 8-1--------------------------------HDMI 1-8 outputs HDMI Input------------------------------------------HDMI Input port 6.0 Connection diagram Before installation, please make sure all devices you wish to connect have been turned off.
- Page 4 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X8 Splitter Number EDID Selector Description 0000 1080I,Stereo-Audio-2.0 0001 1080I,Dolby-DTS-5.1 0010 1080I,HD-Audio-7.1 0011 1080P,Stereo-Audio-2.0 0100 1080P,Dolby-DTS-5.1 0101 1080P,HD-Audio-7.1 0110 3D,Stereo-Audio-2.0 0111 3D,Dolby-DTS-5.1 1000 3D,HD-Audio-7.1 1001 4K2K@30,Stereo-Audio-2.0 1010 4K2K@30,Dolby-DTS-5.1 1011 4K2K@30,HD-Audio-7.1 1100 4K2K@60,Stereo-Audio-2.0 1101 4K2K@60,Dolby-DTS-5.1 1110 4K2K@60,HD-Audio-7.1 1111 Copy EDID From Sink...
