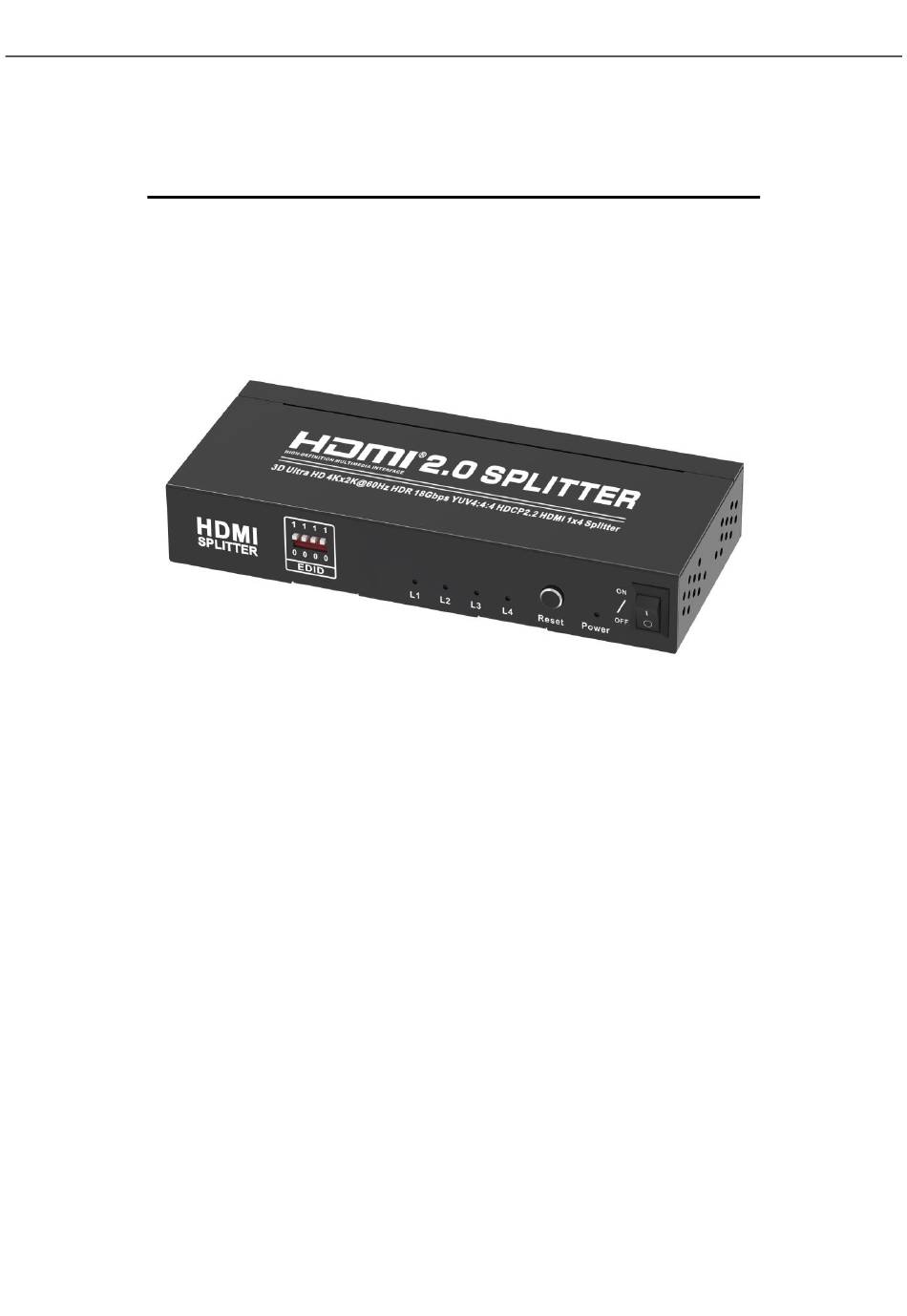

- Page 1 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X4 Splitter HDMI SPLITTER CS 25-4 L User Manual HDMI2.0 1x4 Splitter (3D Ultra HD 4Kx2K@60Hz HDCP2.2) Bring High-Definition to your life!
- Page 2 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X4 Splitter 1.0 Introduction: HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect. HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
- Page 3 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X4 Splitter 5.0 Panel Introduction EDID --------------------------------------------EDID Setting button L1-L4-----------------------------------------HDMI Output Indicator Power-------------------------------------------------Power Indicator Reset-----------------------------------------------------Reset button ON/OFF-------------------------------------------------Power Switch DC/5V------------------------------------------------Power Input port HDMI Output 4-1--------------------------------HDMI 1-4 outputs HDMI Input------------------------------------------HDMI Input port 6.0 Connection diagram Before installation, please make sure all devices you wish to connect have been turned off. 6.01 Connect the HDMI cable between signal source and input port of Splitter.
- Page 4 HDMI2.0 3D Ultra HD 4Kx2K@60Hz 1X4 Splitter 0111 3D,Dolby-DTS-5.1 1000 3D,HD-Audio-7.1 1001 4K2K@30,Stereo-Audio-2.0 1010 4K2K@30,Dolby-DTS-5.1 1011 4K2K@30,HD-Audio-7.1 1100 4K2K@60,Stereo-Audio-2.0 1101 4K2K@60,Dolby-DTS-5.1 1110 4K2K@60,HD-Audio-7.1 1111 Copy EDID From Sink 8.0 Installation and Precautions To avoid electric shock , product damage and to protect your safety , please notice the following: 1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
