Mounting and Balancing

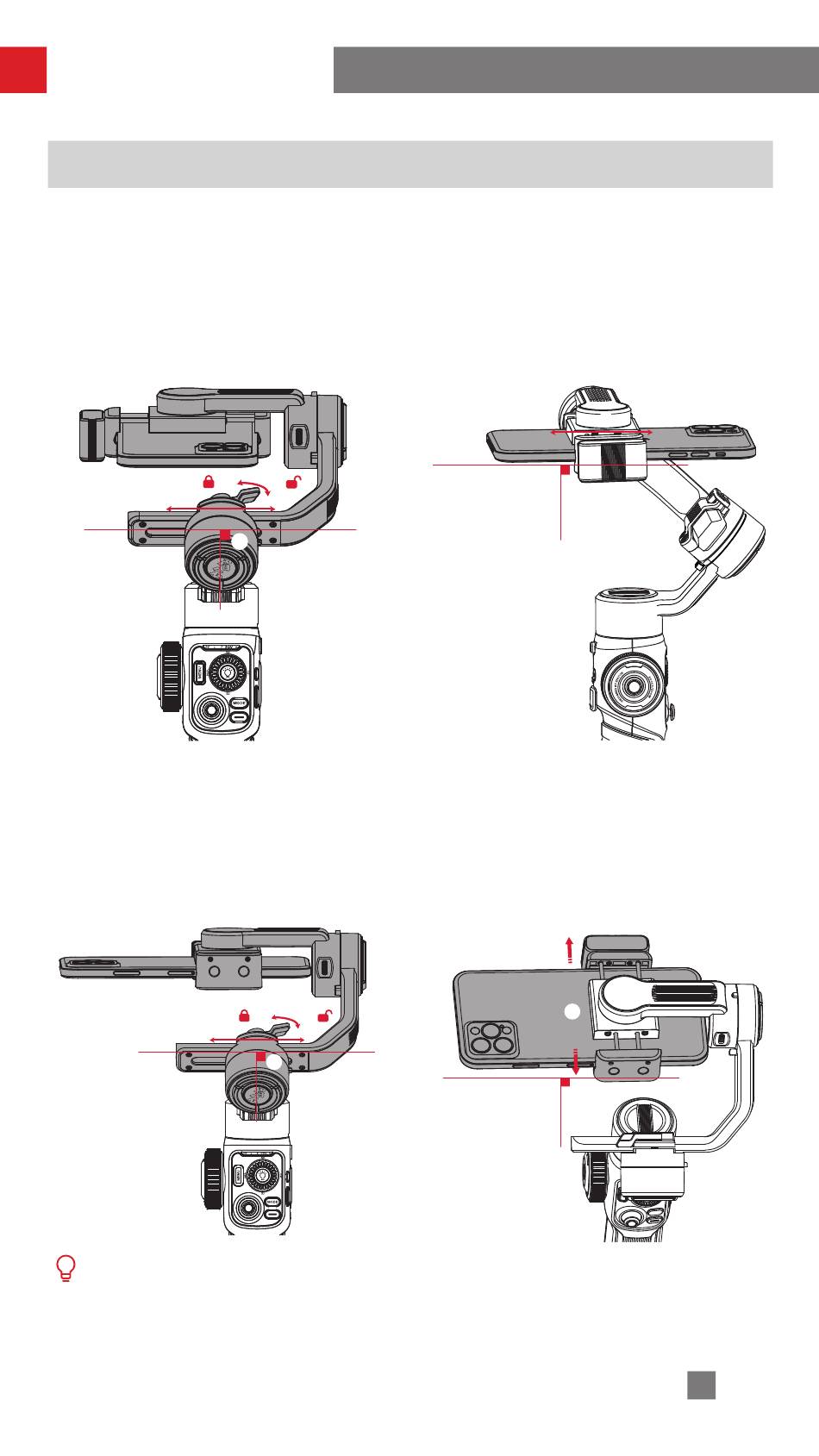

Mounting in the portrait mode
1. Unlock the roll axis arm ① , push
the arm to move left or right ②
until the phone is steady and is at
almost level with the ground ③ .
Tighten the latch ④ .
②
Mounting in the landscape mode
1. Unlock the roll axis arm ① , push
the arm to move left or right ②
until the phone is steady and is at
almost level with the ground ③ .
Tighten the latch ④ .
②
The balance state of the mobile phone will affect the gimbal runtime. The
gimbal can work normally if unbalanced, but it will consume more battery
power and weaken the motor strength.
Balancing
④
①
③
④
①
③
2. Move the mobile phone left or right
① until the phone is steady and is
at almost level with the ground ② .
②
2. Move the phone clamp forward
or backward ① until the phone is
steady and is at almost level with
the ground ② .
①
②
①
8
