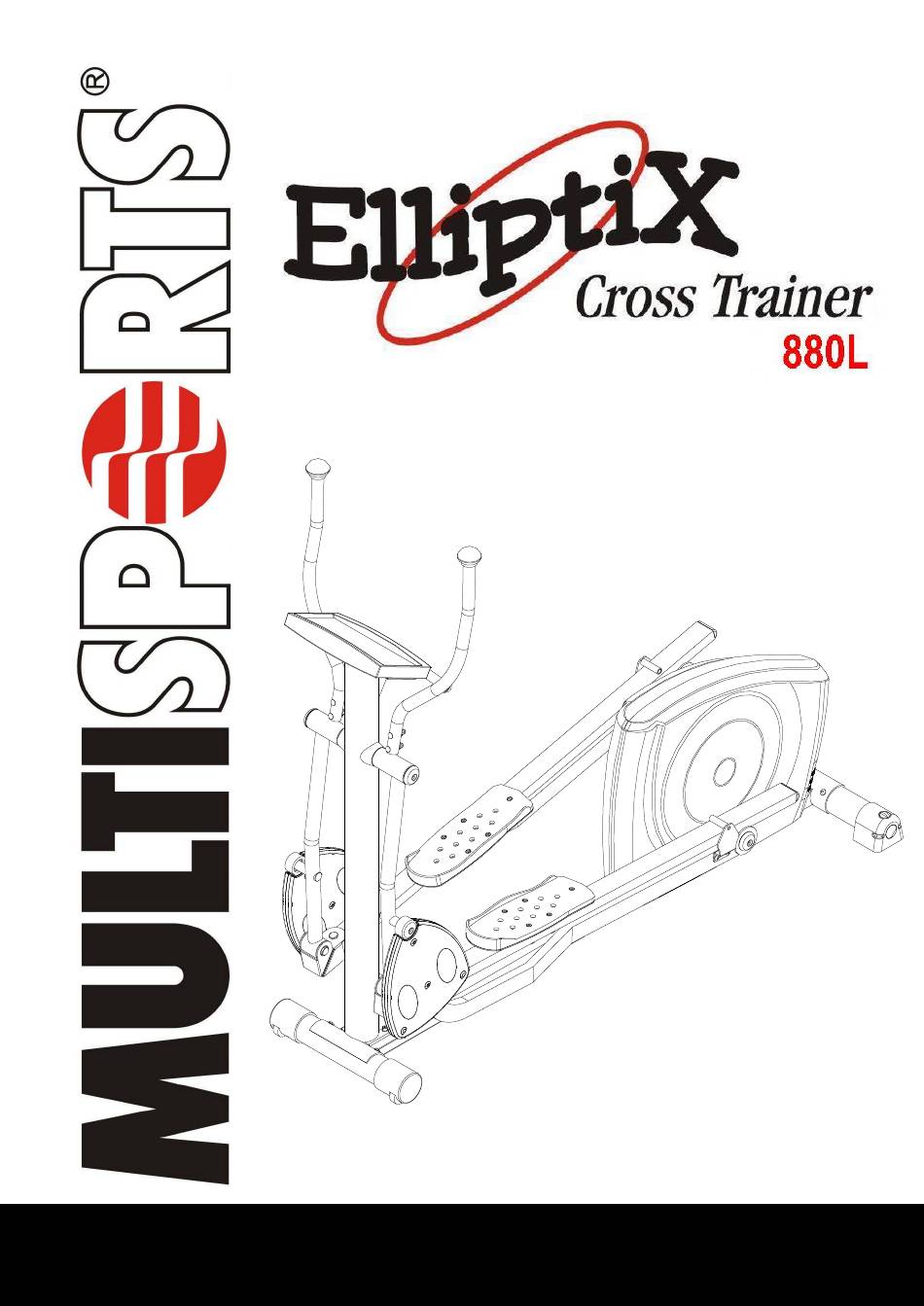

  • Page 1 Owner’s Manual...

  • Page 2: Table Of Contents

     The Specifications and descriptions in this manual were accurate at the time of printing. Improvement is a constant goal at MultiSports; therefore we reserve the right to make changes in specifications at any time without notice and without incurring obligation.

  • Page 3: Important Notice

    Congratulations on your purchase of the new MultiSports equipment. Although we go to the great lengths to ensure the quality of our products, occasionally errors or omissions occur. Should you find a missing or defective part in this product, please contact us within thirty days for a replacement by calling us at 713-460-8188, emailing us at mssales@swbell.net or visiting our web site at...

  • Page 4: Assembly Tools & Hardware Measurements

    Assembly Tools & Hardware Measurements Assembly Tools Allen Wrenches M3/M4/M5/M6 Snap-Ring Socket Wrench Screwdriver Hardware Measurements Bolt Length Inch 10 20 30 WASHER SIZE NUT SIZE...

  • Page 5: Assembly Instructions

    Assembly Instructions STEP 1 Fasten the Rear Stabilizer (LH) to the Main Frame (AH) using 2 Allen Bolts (05A). STEP 2 Slide the Handlebar Post (BH) into the Main Frame (AH). Please ensure the Cable Wire (70A) does not get pinched and is pulled all the way through to the front of the Handlebar Post (BH).
  • Page 6 Assembly Instructions STEP 3 Use your fingers to reach the hole on the bottom of the Handlebar Post (BH) and pull out Cable Wire (70A) and Cable Wire (68A). Connect the two cables together and push back into the hole. Then fasten the Main Frame (AH) and the Handlebar Post (BH) using 6 Allen Bolts (06A) and 6 Spring Washers (08) with the Allen Wrench provided.
  • Page 7 Assembly Instructions STEP 4 Attach the Front Stabilizer (MH) to the Handlebar Post (BH) using 2 Allen Bolts (05A).
  • Page 8 Assembly Instructions STEP 5 Attach the Left Movable Handlebar Post (DH) to the Handlebar Post (BH). Then, put one Snap Ring (04), one Washer (15), one Protecting Cover (14) ,one Washer (15) and tighten using a Bolt (16A). Repeat connection on the right hand side of the machine.
  • Page 9 Assembly Instructions STEP 6 The Pedal Arms packed in the carton is as the picture below. Firstly, you have to unloosen parts # 100, 101 and 102 on Right Pedal Arm. Then, insert the Handlebar Post (D) to the Right Pedal Arm (IH) and bolt #100 through Handlebar Post (D) and tighten using #101 and #102.
  • Page 10 Assembly Instructions STEP 7 Attach the left front side of the Connecting Tube (KH) to the Left Handlebar (DH). Then slide the other end of the Connecting Tube (KH) onto the Disc Axle (NH). Repeat connection on the right hand side of the machine.
  • Page 11 Assembly Instructions STEP 8 The parts removed in STEP 5 will need to be reassembled on the Disc Axle (NH) and the Axle (C2) of the Handlebar Post (DH). On the Axle (C2) of the Handlebar post (DH) push on the Snap Ring (04) until it pops into its grove using the Socket Tool provided (a rubber hammer may be needed to firmly place Snap Ring in place.
  • Page 12 Assembly Instructions STEP 9 Attach the Left Pedal Arm Holder Bracket (Q) to the Connecting Tube (KH) with 2 Allen Bolts (05). Repeat the process above on the Connecting Tube (JH). Connect the Computer (67A) to the Cable Wires (68A & 69A) coming out of the Handlebar Post (BH).
  • Page 13 Assembly Instructions STEP 10 Fasten the upper Left Movable Handlebar (F) to the Lower Left Handlebar (DH) by using 2 Carriage Bolts (60), Semicircle Washers (61) and Dome Nuts (62). Repeat the process above on the Right Moveable Handlebar (E). Attach the Water Bottle Holder (77) onto the Handlebar Post (BH) and fasten with 2 Screws (78).

  • Page 14: Computer Instructions

    Computer Instructions TO OPERATE START PEDALING TO ACTIVATE COMPUTER.QUICK START: Starting pedaling, press START once. To reset values press START again, TIME, DISTANCE will count from zero. C. Adjust work level by pressing UP and DOWN keys. TO USE MANUAL OR MOUNTAIN PROGRAM: Press START until you are in the RESET mode (▀...
  • Page 15 Computer Instructions TO USE TARGET WATTS WHILE IN PROGRAM: Press TARGET WATTS. Press UP & DOWN keys to adjust level. C. To cancel press TARGET WATTS again. TO USE CONSTANT POWER WHIL IN PROGRAM: Press CONSTANT POWER. Press UP & DOWN keys to adjust level. C.

  • Page 16: Parts List

    ECT-880L PARTS LIST * Indicates pre-assembled parts NO. DESCRIPTION Q'TY NO. DESCRIPTION Q'TY AH Main Frame 06A Allen Bolt M8x65L 6pcs BH Handlebar Post *07 Screw M4x15L 12pcs *CH Right Handlebar 08 Spring Washer M8 14pcs *DH Left Handlebar *09 Rivet Nut M8 8pcs E Right Movable Handlebar *09A Rivet Nut M8...
  • Page 17 05A Bolt M8x20L 4pcs *36B Belt Axle ECT-880L PARTS LIST * Indicates pre-assembled parts NO. DESCRIPTION Q'TY NO. DESCRIPTION Q'TY *37 Nut M14xP1.5x6t 2pcs *74A Hand-Pulse Foam Grip 2pcs *75 Spacer φ20 *38A Disc Cover 2pcs 2pcs *44 Allen Bolt M6x10L 16pcs *76 Rivet Nut 2pcs...

  • Page 18: Exploded Drawing

    *73 Movable Handlebar Foam Grip 2pcs 102 Allen Bolt M6*15 4pcs Exploded Drawing...
  • Page 19 Exploded Drawing...
  • Page 20 4660 Pine Timbers, Suite 138, Tx77041 Phone: 713-460-8188 Fax:713-460-8180 Web-site:www.multisportsfitness.com E-mail:mssales@swbell.net...
