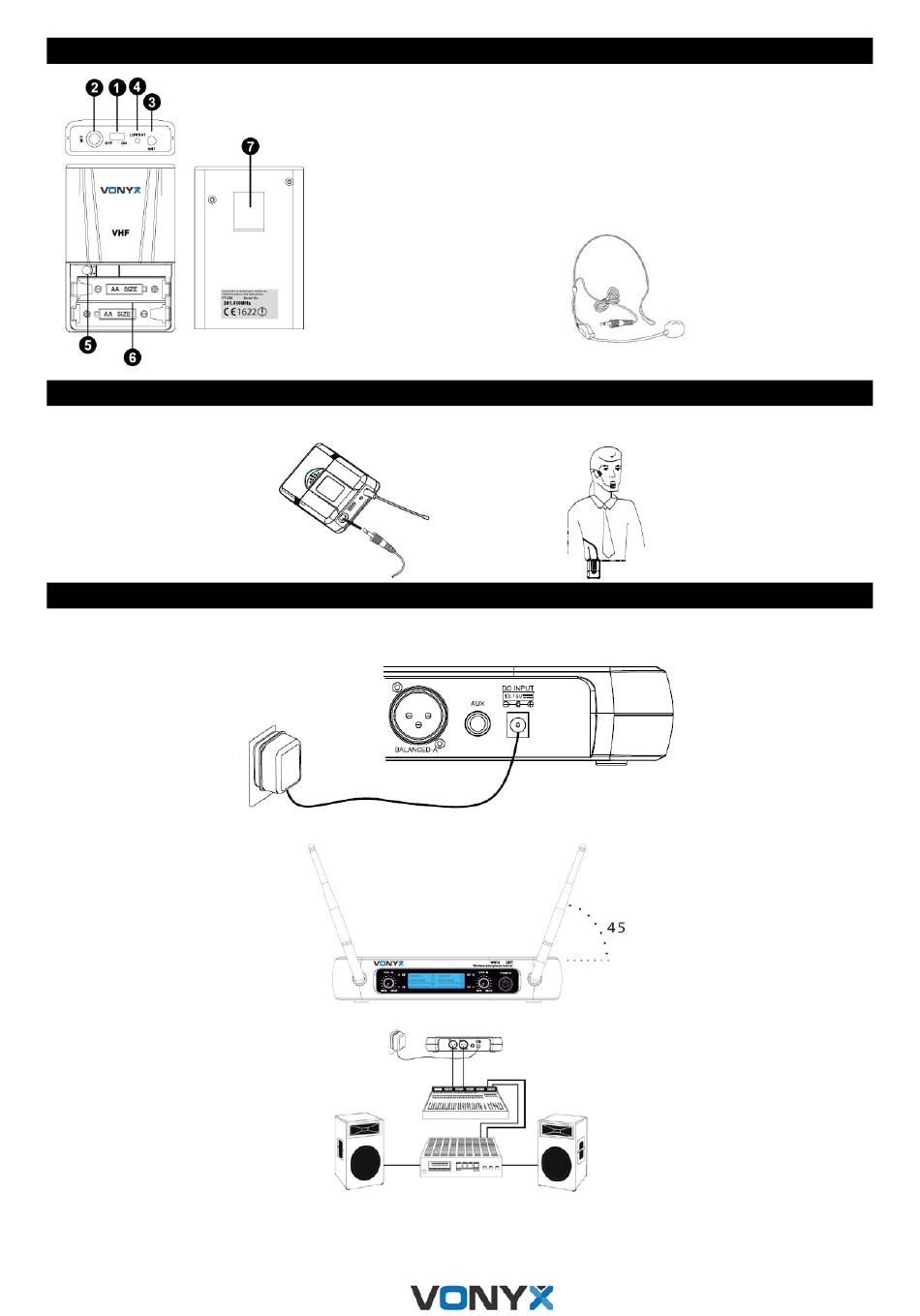

BODYPACK

HEADSET MICROPHONE

Connect the connecter of supplied headset microphone to the connecting jack of transmitter (Shown as below).
Set the transmitter work state in wireless headset system (6).

SYSTEM CONNECTIONS

1. Receiver power connection: Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC
adapter into a AC230V 50Hz outlet.
2. Antenna: Keep the position of antenna at a 45° angle from vertical. Shown as below.
3. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.
4
1.
Power ON/OFF and Audio mute switch.
2.
Microphone input Jack for headset.
3.
Antenna
4.
Low battery indicator (Red light glows when the power is low and change
the battery)
5.
Gain Adjusting Volume: Adjust the transmitter audio input gain.
6.
Battery Cover: Open it to install the battery. Remove batteries in case of
long time no use (prevent leakage).
7.
Belt Clip
