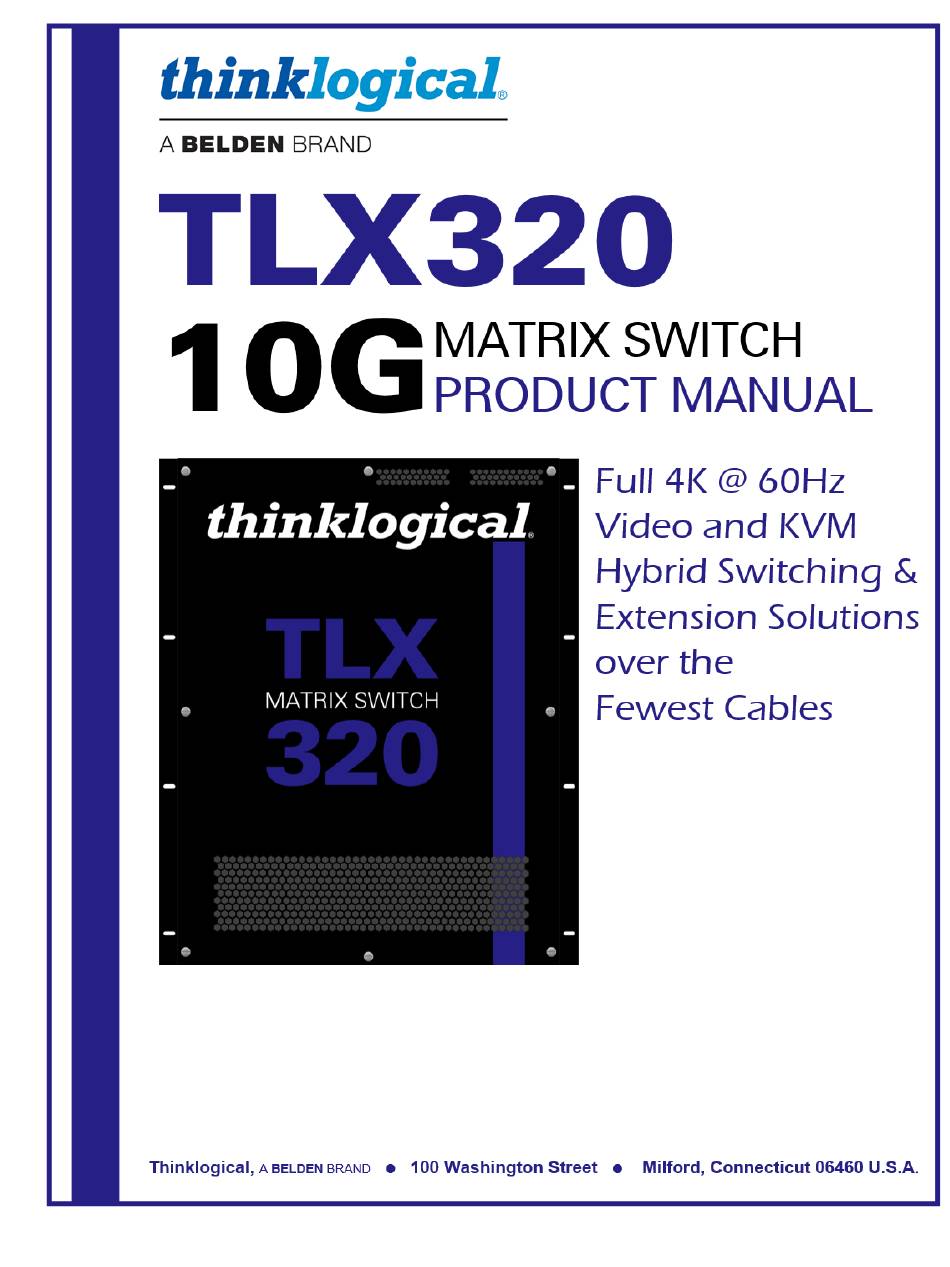

- Page 1 Page i Rev. I, May 2021 thinklogical TLX320 Matrix Switch Product Manual Rev. I, May 2021...
- Page 2 Page ii Copyright Notice Copyright © 2021. All rights reserved. Printed in the U.S.A. Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: TLX320 10G Matrix Switch Product Manual Revision: I, May 2021 ®...
-
Page 3: Table Of Contents
Page iii Table of Contents PREFACE..............................v About Thinklogical .......................... v ® About This Product Manual ....................... vi Note and Warning Symbols ...................... vi Class 1 Laser Information ......................vi SECTION 1: TLX SYSTEM FEATURES ....................1 The TLX320 Matrix Switch Design ....................2 Design Features .......................... - Page 4 Page iv How To Install and Replace Modules ....................20 How To Install and Replace an Input/Output Card ..............20 How To Install and Replace a Control Card ................21 How To Install and Replace a Fan Tray ..................21 How To Install and Replace a Power Supply ................
-
Page 5: Preface
Thinklogical products are designed and manufactured in the USA and are certified to the ISO 9001:2015 standard. Thinklogical is headquartered in Milford, Connecticut and is owned by Belden, Inc., St. Louis, MO (http://www.belden.com). For more information about Thinklogical products and services, please visit https://www.thinklogical.com. -
Page 6: About This Product Manual
Page vi About this Product Manual This product manual is divided into four sections: TLX System Features, Set-Up & Installation, Regulatory & Safety Requirements and Thinklogical Support. These are sub-divided to help you find the topics and procedures you are looking for. This manual also contains Appendices. Section 1 –... -
Page 7: Section 1: Tlx System Features
Page 1 Section 1: TLX System Features The Logical Solution The TLX320 is a 10G high performance modular, non-blocking matrix switch that supports full, uncompressed 4K video with full color depth at 60Hz frame rate for complete, end-to-end routing of video and peripheral signals over multi-mode or single-mode fiber-optic cable. This highly reliable and resilient matrix switch is expandable from 16x16 up to 320x320, which allows for flexible deployment configurations. -
Page 8: The Tlx320 Matrix Switch Design
Page 2 THE TLX320 MATRIX SWITCH DESIGN The modular approach of the TLX320 Matrix Switch (sometimes referred to as a Switch or Router) allows all critical system components, including Input/Output Cards, Power Supplies, Controller Cards and pluggable optics (SFP+) to be hot-swappable, thus minimizing down-time during reconfigurations, updates or failures. -
Page 9: Product Compatability
Page 3 PRODUCT COMPATIBILTY TLX Matrix Switches are compatible with the following Thinklogical products: ® • Single & Multi-Mode TLX 10G KVM and Video Extenders (10G to 10G only) • Single & Multi-Mode Velocity CATx KVM and Video Extenders (6G to 6G only) •... -
Page 10: Power Supply Modules
Page 4 POWER SUPPLY MODULES The dual, redundant power supplies ensure continuous, uninterrupted power. The supplies are current sharing which means the supplies share the load equally. If a power supply fails, the redundant power supply can support the entire current load of one fully populated card cage. -
Page 11: The Controller Cards
Page 5 THE CONTROLLER CARDS The hot-swappable Controller Cards connect the TLX320 to an External CPU. The RS-232 serial port may be used for third party controller integration (such as Crestron, AMX or home-spun interfaces). Also, the SMP Software may be used to control the switch via the LAN port. A Back-up Controller Card ensures uninterrupted functionality if the Primary Controller Card should fail or need to be replaced. -
Page 12: The Processor - Imx6 (Freescale)
Page 6 THE PROCESSOR – i.MX 6 QUAD (Freescale) The Processor platform key features: • ARM Cortex-A9 MPCore 4 x CPU • Memory Interfaces ➢ 64-Bit DDR3-1066 ➢ SD (Memory Card Specification, v3.0 including high-capacity SDHC cards up to 32 GB. ➢... -
Page 13: Snmp Support
Page 7 5. I/O card data (TCP ports 17601 through 17640, 1 port per I/O card) • SFP installed bits • SFP TX Disable bits • SFP TX Fault bits • SFP LOS bits • I/O card type • I/O card temperature •... -
Page 14: Serial/Rs-232 Interfaces
Page 8 SERIAL/RS-232 INTERFACES The Controller Card has two RS-232 serial ports. One Controller Card is for the Linux command line interface (labeled CONSOLE), and the other is for the switch's ASCII command interface (labeled RS232). If a Back-up Controller card is installed, then its Linux console port is active, but only the RS232 port on the active Controller Card will function. -
Page 15: Optional Micro-Hdmi In/Edid Out I/O Card
Page 9 Optional HDMI Input / EDID Output Cards Also available with the TLX320 are HDMI I/O Cards with 16 Micro HDMI connectors that support input cable lengths up to 15 meters and include a USB mini-B connector for FPGA downloads/updates. -
Page 16: Technical Specifications
Page 10 TLX320 TECHNICAL SPECIFICATIONS PHYSICAL Dimensions: Rack Size: EIA 19" Height: 13 RU - 22.75” (578 mm) Depth: 15.1" (383 mm) TLX320 Chassis Width: 17.16" (435.9 mm) Weight: 75.0 lbs. (34 kg) Shipping Weight: 93.0 lbs. (42 kg) Ports 16 x 16 min., 320 x 320 max. ENVIRONMENTAL Operating: 0°... -
Page 17: Section 2: Set-Up And Installation
Page 11 Section 2: Set-Up & Installation Contents When you receive your Thinklogical TLX320 KVM Matrix Switch, you should find the following ® items in the quantities specified in your order: • TLX320 Chassis (includes 2 Power Modules, 1 Fan Tray, up to 20 Input/Output Cards and one or two Controller Cards) •... -
Page 18: Connecting The Tlx320
Page 12 Connecting to the TLX320 Thinklogical’s line of TLX Extenders come in both fiber-optic cable and CATx cable versions. Thinklogical’s proprietary multiplexing technology combines video, audio and peripheral data on a single data stream for up to 80km over a single fiber or up to 100m over a single CATx cable. TLX Matrix Switches are compatible with the following Thinklogical products: ®... -
Page 19: Redundancy And Network Requirements
Page 13 Redundancy and Network Requirements A Back-up Control Card (sometimes called a Secondary or Fail-Over Control Card) is optional and ensures uninterrupted functionality if the Primary Control Card ever fails or needs to be replaced. Two network requirements need to be in place for a switchover to occur: The Back-up Control Card must have a LAN connection to the server with the IP address as specified in the “TLX320 DIP Switch Settings”... -
Page 20: Fiber-Optic Cable
Page 14 Each TLX320 I/O card has 16 SFP+ Modules, each mounted within a grounded, metal en- closure. Each SFP is locked into its enclosure with a built-in latch handle that can be opened for removal or locked for installation (right). The latch handle spans the two LC ports. -
Page 21: Tlx Fiber-Optic Cable Configurations
Page 15 TLX Extender Fiber-Optic Cable Configurations SINGLE VIDEO MODULES DUAL VIDEO MODULES Note: On Dual Video models, SFPs 1 & 2 are Video 1 and SFPs 3 & 4 are Video 2. thinklogical TLX320 Matrix Switch Product Manual Rev. I, May 2021... -
Page 22: Tlx Catx Cable Configurations
Page 16 TLX Extender CATx Cable Configurations There are currently several versions of CATx (category 5/5a/6/6a/etc.) cables on the market. Thinklogical recommends using a minimum of CAT6 for your TLX KVM Matrix Switch and Extension System (CAT6a 23 AWG recommended). All cables CAT6 or higher can extend up to a maximum of 100m. -
Page 23: Routing Thinklogical Extenders Through The Tlx320
Page 17 Routing Thinklogical Extenders through the TLX320 Comprised of a fiber-in, fiber-out matrix switch and fiber-optic KVM Transmitter and Receiver Extenders, this complete system provides transparent and secure routing, switching and extension of video and high-speed data peripherals to remote destinations with ease. TLX320 Transmit / Receive Concept Connecting to the Receiver The Receiver serves as the Destination (desktops, theaters, conference rooms, editing suites, control... -
Page 24: Connecting To A Control Cpu
Page 18 Routing Thinklogical TLX Extenders through the TLX320 ® Connecting to a Control CPU The TLX320 is controlled via a dedicated external Control CPU. This allows for customization as well as ease of control and administration. Access is provided via a network connection or serial RS-232. Note: The Control CPU (Computer) is supplied separately. -
Page 25: Operating System Default Users / Passwords
Page 19 Operating System Default Users / Passwords TLX Matrix Switch Operating Systems: Debian 7 Installed on V5.07.XX (and earlier) ➢ OS default username/password debian/temppwd root/root Debian 8 Installed on V5.08.XX ➢ OS default username/password debian/temppwd root/root (cannot remote into OS as root user) Centos 7 Installed on V5.09.XX... -
Page 26: Safely Remove An Active Control Card Or Shut Down The System
Page 20 Safely Remove an Active Control Card or Shut Down the System During normal, non-maintenance operation, the Primary Control Card should always be the Active controller for the system. However, there may be times when other conditions temporarily exist, such as during maintenance, updates, repairs, etc. Although the system will run normally on the Back-up Control Card, not having a second card eliminates the fail-over protection afforded by a redundant, two-card system. -
Page 27: How To Install And Replace A Control Card
Page 21 Hold the replacement module by the handles and place it into the slot vertically so that the POWER LED is on the top. The card should slide freely until it reaches the backplane connector. At this point, use just enough force to firmly engage the card with the mating If the module does not slide into the connector, do not force it! Damage connector. -
Page 28: How To Install And Replace A Power Supply
Page 22 How to Replace a Power Supply Warning! Disconnect the power cord before proceeding! Note: If only ONE power supply is installed, shutdown IS required. If TWO power supplies are installed, shutdown IS NOT required. The Power Modules are universal input 100-240VAC 50-60Hz. Use the proper power cords for your region (PWR-000056-R, supplied with the unit). -
Page 29: Section 3: Regulatory & Safety Requirements
European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 USA Thinklogical’s products comply with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU, the WEEE Directive... -
Page 30: Supplementary Information
Page 24 Electromagnetic Immunity EN 55024:2011+A1 CENELEC EN 55032:2015 EN 61000-3-2:2000 Harmonics EN 61000-3-3:2008 Flicker EN 61000-4-2:2009 Electro-Static Discharge Test EN 61000-4-3:2006 A1:2008, A2:2010 Radiated Immunity Field Test EN 61000-4-4:2004 Electrical Fast Transient Test EN 61000-4-5:2006 Power Supply Surge Test EN 61000-4-6:2009 Conducted Immunity Test EN 61000-4-11:2004 Voltage Dips &... -
Page 31: Section 4: Thinklogical
1-203-647-8700 and let us help. If you need to write us or return a product, please use the following address: Please include the Return Merchandise Authorization number: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, CT 06460 USA Attn: RMA#... -
Page 32: Appendix A: Tlx320 Quick Start Guide
Page 26 APPENDIX A: TLX320 QUICK START GUIDE thinklogical TLX320 Matrix Switch Product Manual Rev. I, May 2021... -
Page 33: Appendix B: Fpga Program Code Update Procedure
Page 27 Appendix B: FPGA Program Code Update Procedure thinklogical TLX320 Matrix Switch Product Manual Rev. I, May 2021... -
Page 34: Appendix C: Sd Card Replacement Procedure For The Tlx320 Controller Card
Page 28 Appendix C: SD Card Replacement Procedure for the TLX320 Controller Card This procedure assumes a normally operating TLX system that is using both a Primary and a Back-up Controller Card. Note: If Partitioning, Restricted Switching or P2P is being used, copy the upstream.csv /var/local/router file from the appropriate... - Page 35 Page 29 thinklogical TLX320 Matrix Switch Product Manual Rev. I, May 2021...
-
Page 36: Appendix D: Secure Applications
Page 30 APPENDIX D: Secure Applications TLX Matrix Switch Control When used in a secure application, the Matrix Switch and External Computer (server) used to manage the system must be in a physically secure environment to which only trusted administrators have access. Similarly, the server used to manage the Matrix Switch must be physically protected and have suitable identification/authentication mechanisms to ensure that only trusted administrators have access. - Page 37 Page 31 Restricted Switching Restricted Switching provides multiple levels of security classification domains on the same Matrix Switch. Each destination must ensure that no unauthorized content is displayed or accessed. Therefore, every input and output must be prioritized. Priorities can range from 1 to the total number of ports in the Matrix Switch.
- Page 38 Page 32 To verify the system’s Restricted Switching policy, Thinklogical recommends the following: 1) Review the daemon.log file on the active Controller Card and correct any errors in the Restricted Switching Table before implementing multiple levels of security classification domains on the same Matrix Switch.
- Page 39 Page 33 Restricted Switching with TLX, VX and MX Matrix Switches Restricted Switching Priority Scheme The following example shows a priority scheme for four levels of security managed by one TLX Matrix Switch: Restricted switching is configured via firmware loaded into the Matrix Switch.
- Page 40 Page 34 Partitioning Partitions allow TLX, VX and MX Matrix Switch sources and destinations to be segregated. Therefore, destination workstations will only receive signals that are transmitted from source computers in the same partition. In addition, it is impossible for a source computer to be inadvertently routed outside of its designated partition as the signals will not be transmitted.
- Page 41 Page 35 At system power up, after initial boot-up, the Primary Controller Card will only evaluate its Partition Table (upstream.csv file) once upon becoming active. The Back-Up Controller Card will NOT evaluate its Partition Table (upstream.csv file) at initial boot-up, but rather when a switchover occurs from Primary Active to Back-Up Active.
- Page 42 Page 36 Partition Switching is disabled when Partition Table files are removed. By default, when there are no Partition Table files, all ports not listed will default to partition 1. All Switches are shipped without Partition Table files stored on the Controller Card and therefore do not restrict any connection. Administration Access There are two methods by which the administrator can access the Switch Controller Configurations: 1.
- Page 43 Page 37 Secure Application Examples The diagram on pg. 38 shows the TLX320 Matrix Switch in a secure application. The highly secure components are described as the Red Network and the other, lower security components are described as the Black Network. The Red Network, containing the computers (sources), is shown in a physically secure environment along with the TLX Matrix Switch, the computer server used to manage the Switch, and the Network Hub.
- Page 44 Page 38 TLX320 10G Matrix Switch Secure Application thinklogical TLX320 Matrix Switch Product Manual Rev. I, May 2021...
