SLC -LF 18 CD General Assembly Instructions

MM.LF18CD.00E
OVERSPEED GOVERNOR SLC-LF 18 CD
Revision 1
2011-06-16
GENERAL ASSEMBLY INSTRUCTIONS LF 18 CD
Pag. 1/4

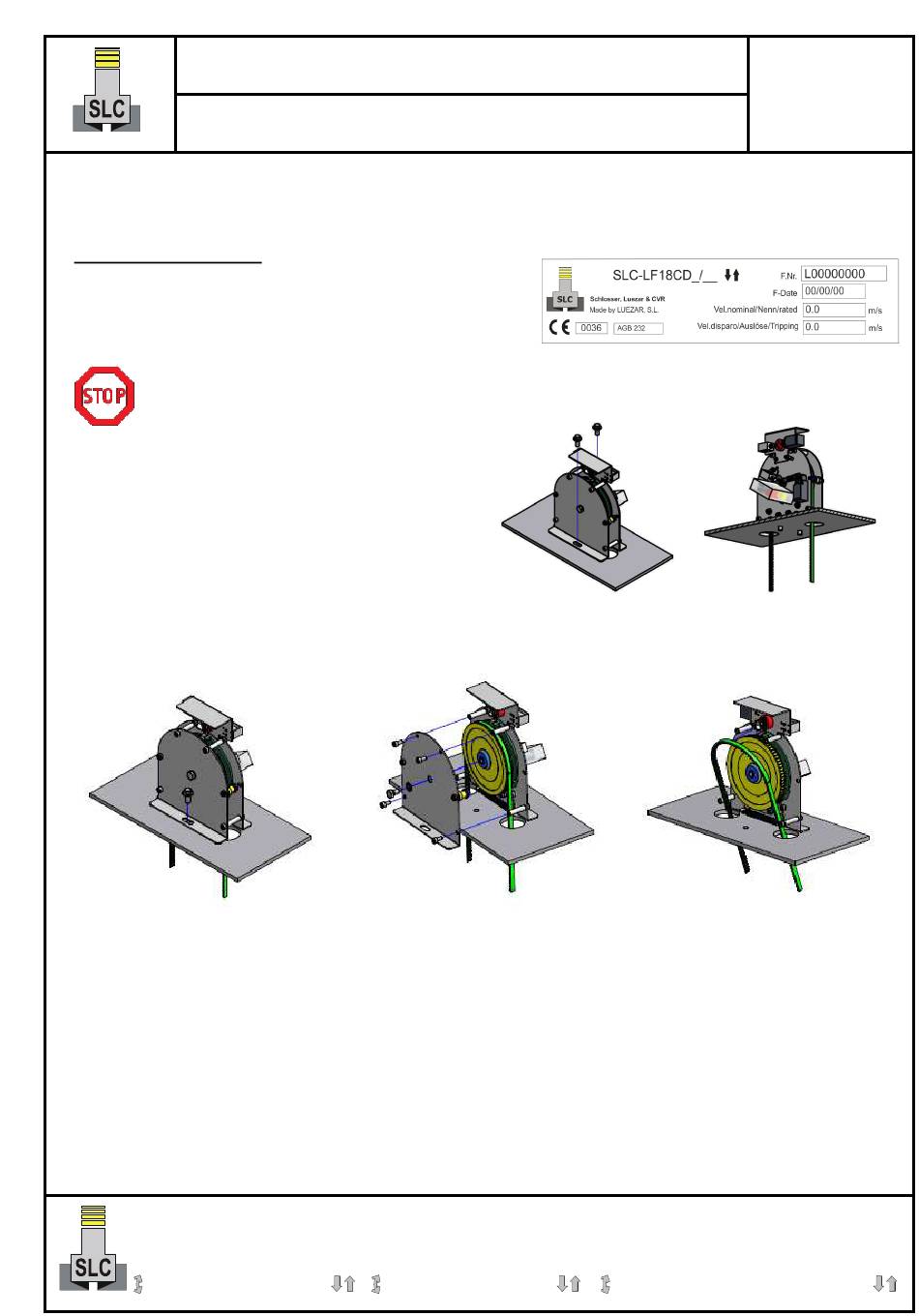

OVERSPEED GOVERNOR SLC LF 18 CD.

GOVERNOR ASSEMBLY

The overspeed governor SLC LF 18 CD will be installed
according to the type of assembly required by the client. To
that end, the instructions of each assembly will be watched
and the following general instructions.
1º) Check the characteristics of the governor correspond with the indicated ones in the nameplate and
the attached documentation to the governor.
2º) Set the governor in his position following
the instructions in detail, verifying that it firmly fastened
and vertical.
3º) Pass the belt through the governor and safety anti-
fall pulleys in the direction marked for his assembly,
checking that the rotation of the governor in descending
direction of the lift car, it would cause the activation of
the safety gear in the correct direction (the steering
linkage arms to the top).
4º) In case of a replacement of the overspeed governor it is not necessary to untie the belt. Remove all screws of
left hand protection and remove it.Pass the belt trought the pulley, and assembly it again.
5º) Line up the overspeed governor vertically
6º) Install the tension pulley, checking the belt position whith regard to the car and the other components.
7º) Scan with the eyes if the governor`s pulley and the testing pulley are paralels, checking if belt is centered on all
pulleys.
8º) Join the belt with the linkage (check again step 7).
9º) Move the lift to slow speed checking the correct functioning. Then, move the lift to nominal speed, checking the
correct functioning of the governor.
.
SCHLOSSER LUEZAR & CVR, S.L
Pol. Malpica, C/F Oeste, nave 7 (Grupo Quejido) 50016 ZARAGOZA ESPAÑA. Telf.
+34 976 570 976
SICHERHEITSPAKETE - SAFETY PACKAGES - CONJUNTOS DE SEGURIDAD
