Instruction manual

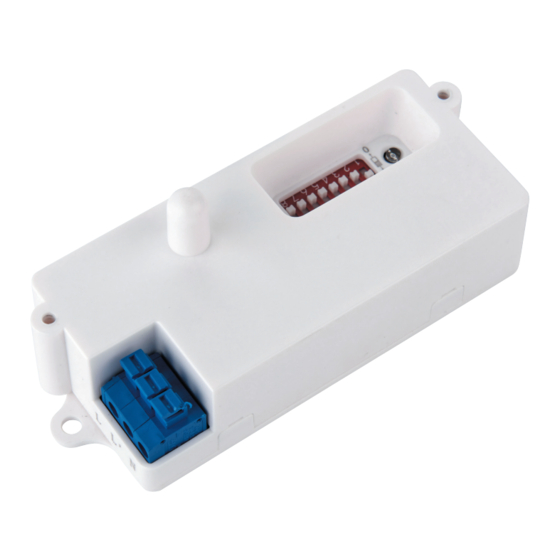

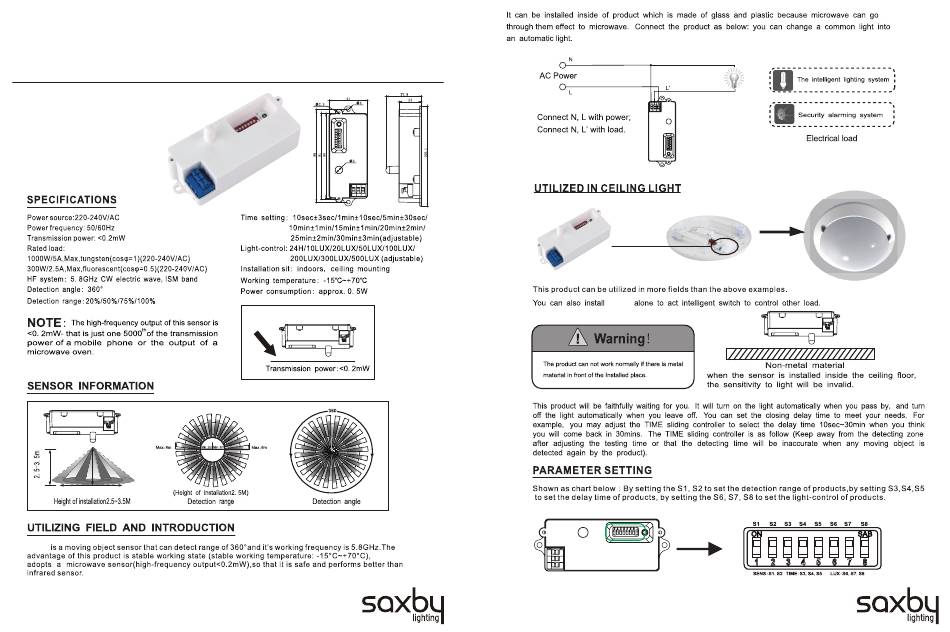

MORDAX SENSOR
94057
Thank you for purchasing this light
fitting. Please read the instruction
carefully before use to ensure safe
and satisfactory operation of this
product. Please retain these
instruction for future reference.
94057
www.saxbylighting.com
94057
V2 21/04/2020
Saxby Lighting. BH17 7BY
94057
Advertisement
Table of Contents
Related Manuals for Saxby Lighting 94057
Summary of Contents for Saxby Lighting 94057
- Page 1 Thank you for purchasing this light fitting. Please read the instruction carefully before use to ensure safe and satisfactory operation of this product. Please retain these instruction for future reference. 94057 94057 94057 V2 21/04/2020 www.saxbylighting.com Saxby Lighting. BH17 7BY...
- Page 3 Mordax 72700, 72701, 72702, 72703, 72704 with Sensor Accessories: 94057 Mordax Sensor 01. Locate the 94057 sensor position. 02. Cut off the brown wire in appropriate length, connect the terminal L to sensor's L, and connect the driver L to sensor's L'.
- Page 4 (not supplied) 94057 Mordax Sensor 01. Locate the 94057 sensor position. 02. Cut the brown wire in the appropriate length between NO.1 LED driver input end and terminal. Then connect the terminal's L to sensor's L with the short end of the brown wire, and connect No.1 LED driver to a connector with the other part of the brown wire.
- Page 5 Mordax EM 72706, 72707, 72708, 72709, 72710 with Sensor Accessories: 94057 Mordax Sensor 01. Locate the 94057 sensor position. 02. Cut off the brown wire between terminal's 2(Ls) and LED driver in the appropriate length. connect two ends to the sensor's L and L' (L' to driver).
- Page 6 (not supplied) 94057 Mordax Sensor 01. Locate the 94057 sensor position. 02. Cut off two brown wires between terminal's 2(Ls) and NO.1 & NO. 2 LED drivers in the appropriate length. Connect terminal's 2(Ls) to sensor's L with one of the brown wire, and take off the other one, use it to connect sensor's L' to one connector (A).
