ASSEMBLY AND INSTALLATION
A4306SN
70 CENTIMETER BROADBAND
430-440 MHz
SSB / CW / FM YAGI
COMMUNICATIONS ANTENNAS
951703 (6/96)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A4306SN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CUSHCRAFT A4306SN

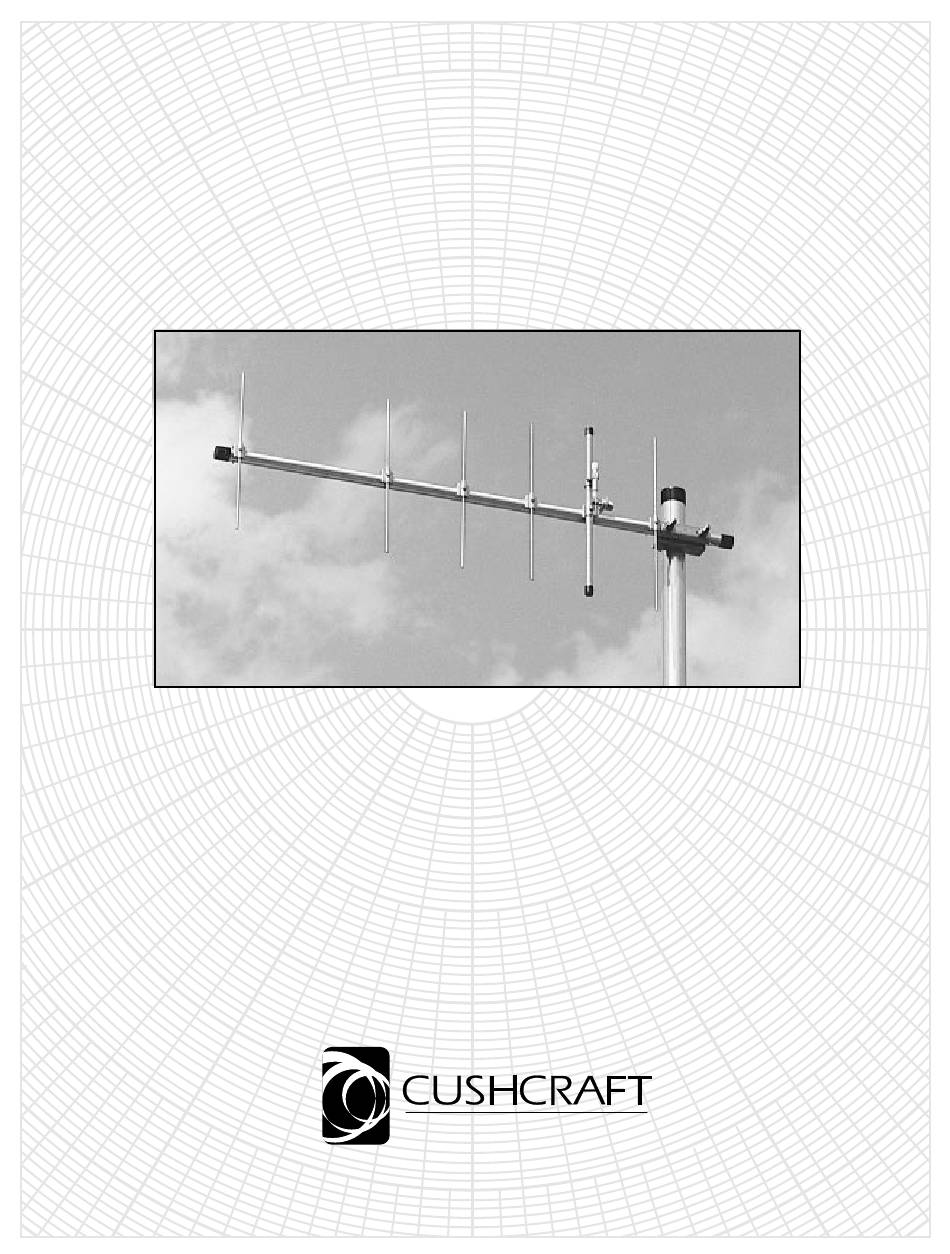

  • Page 1 ASSEMBLY AND INSTALLATION A4306SN 70 CENTIMETER BROADBAND 430-440 MHz SSB / CW / FM YAGI COMMUNICATIONS ANTENNAS 951703 (6/96)
  • Page 2 MOUNTING The A4306SN mast mount bracket will take up to a 2" (5.1 cm) O.D. mast. A 1-1/4" (3.17 cm) television type tubing is satisfactory for any of the single beams. A good heavy-duty antenna rotator will provide the best service and longest life. Often it is desirable to mount several antennas on one mast.
  • Page 3 A4306SN MASTER PARTS LIST PART # DESCRIPTION QUANTITY PART # DESCRIPTION QUANTITY 010011 8-32 stainless steel hex nut 013402 5/16" (.8 cm) stainless steel flat washer 190026 7/8" x 1-1/2" (2.2 x 3.8 cm) mounting bracket 010405 4-1/2" x 2-7/16" (11.4 x 6.2 cm) stainless steel U-bolt...
  • Page 4 A4306SN #2 - ELEMENT ASSEMBLY Slide the four pieces of the Reddi-Match assembly (RR, PT, RT, 251) together (figure B). Assemble the tuning strap onto the element tube (EB) using the two Reddi-Match clamps (921), lock washers (41), flat washers (941), and hex nut (11). Slide the Reddi-Match assembly through the tuning clamp assembly.
  • Page 5 This antenna is designed for use with 50 Ohm coaxial cable terminated with an N connector. Any length of feedline can be used with your A4306SN. The shortest length of cable will have the least loss. A connector boot is included for use with your new antenna. Slide the boot over the cable before attaching your N connector (figure E).
  • Page 6 Cushcraft Corporation, P.O. Box 4680, Manchester, New Hampshire 03108, warrants to the original consumer purchaser for one year from date of purchase that each Cushcraft antenna is free of defects in material or workmanship. If, in the judgement of Cushcraft, any such antenna is defective, then Cushcraft Corporation will, at its option, repair or replace the antenna at its expense within thirty days of the date the antenna is returned (at purchasers expense) to Cushcraft or one of its authorized representatives.
