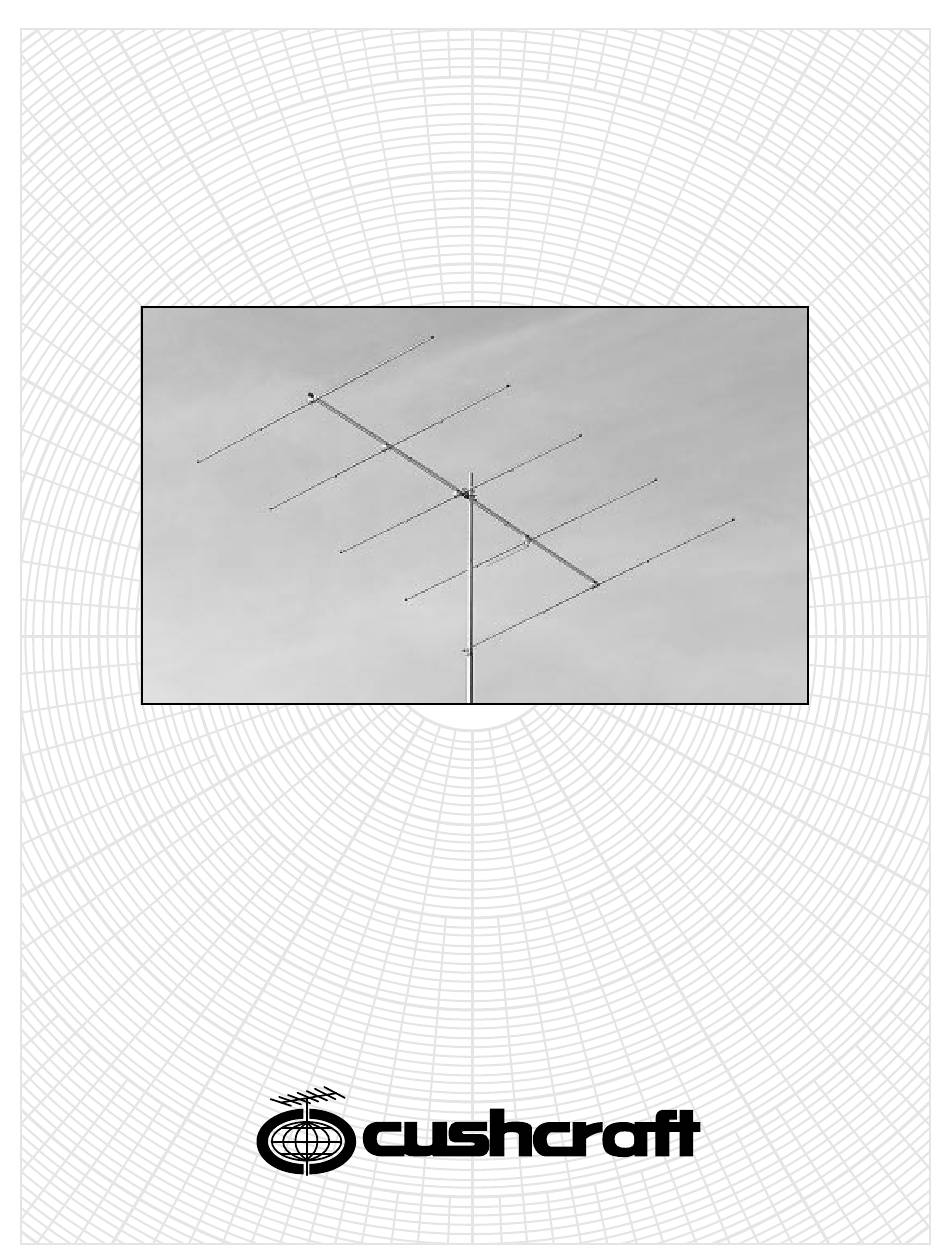

- Page 1 ASSEMBLY AND INSTALLATION A50-5S 5 ELEMENT 6 METER BEAM 951365 (11/94)
- Page 2 CONSUMER PRODUCT SAFETY COMMISSION AND LISTED IN THE ENCLOSED PAMPHLET. Your Cushcraft 6 meter beam is designed and manufactured to give top performance and trouble free service. The antenna will perform as specified if the instructions and suggestions are followed and care is used in assembly and installation. When checking the components received in your antenna package use the parts lists in each section.
- Page 3 A50-5S MASTER PARTS LIST QUANTITY DESCRIPTION 010009 8-32 x 5/8" (1.59 cm) stainless steel machine screw 010011 8-32 stainless steel hex nut 050013 1-1/4" (3.17 cm) plastic cap 050027 5/8" (1.59 cm) plastic caps 190032 1-1/2" (3.8 cm) heavy duty U-bolt brackets 190033 1-1/2"...
- Page 4 A50-5S A50-5S Table 2 #2 - ELEMENT ASSEMBLY & MOUNTING Vertical Polarization The elements are made up of one pre-drilled and slotted 3/4" (1.9 cm) O.D. center tube and two pre-cut 5/8" (1.59 cm) O.D. end tubes. Assemble FIGURE B-2 the elements using Figure B for horizontal polarization or Figure B-2 for vertical polarization.
- Page 5 A50-5S #3 - REDDI MATCH ASSEMBLY Mount the Reddi Match to the driven element as shown in figure D. The tuning strap (69) should already be on the element. Slide the Reddi Match tube (RM) through the tuning strap (69). Connect the flattened rod to the screw on the connector.
- Page 6 If, in the judgement of Cushcraft, any such antenna is defective, then Cushcraft Corporation will, at its option, repair or replace the antenna at its expense within thirty days of the date the antenna is returned (at purchasers expense) to Cushcraft or one of its authorized representatives. This warranty is in lieu of all other expressed warranties, any implied warranty is limited in duration to one year.
