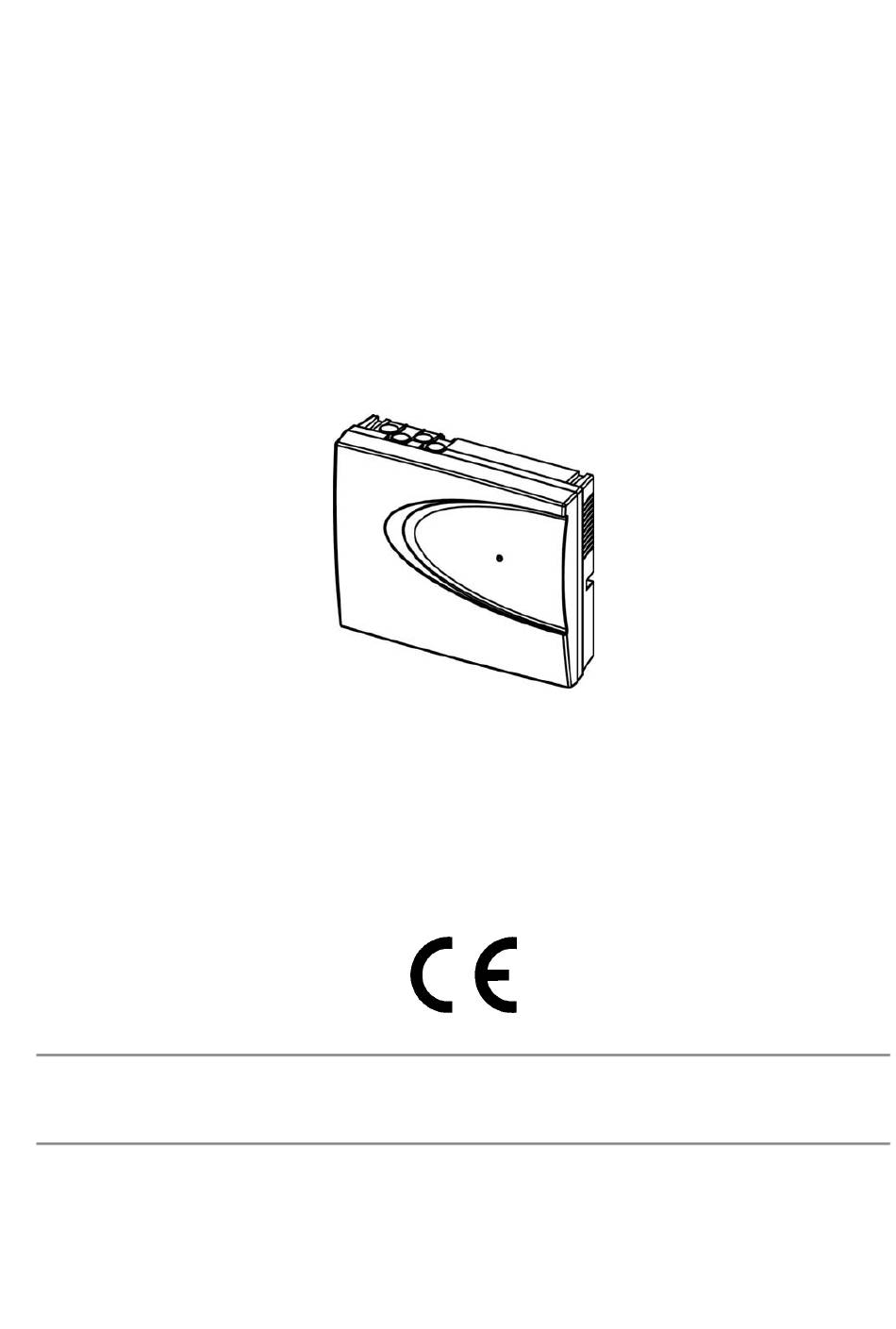

REGULATED DC POWER SUPPLY
WARNING
This manual contains information on limitations regarding product use and function and information on the
limitations as to liability of the manufacturer. The entire manual should be carefully read.
• PS1210 12V 1A
• PS1220 12V 2A
• PS1230 12V 3A
INSTALLER'S MANUAL
All specifications are subject to change without notice.
- 1 -
Advertisement
Table of Contents
Related Manuals for Teletek electronics PS1210 12V 1A
Summary of Contents for Teletek electronics PS1210 12V 1A
- Page 1 REGULATED DC POWER SUPPLY • PS1210 12V 1A • PS1220 12V 2A • PS1230 12V 3A INSTALLER’S MANUAL WARNING This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read.
- Page 2 Guarantee During the guarantee period the manufacturer shall, at its sole discretion, replace or repair any defective product when it is returned to the factory. All parts replaced and/or repaired shall be covered for the remainder of the original guarantee, or for ninety (90) days, whichever period is longer. The original purchaser shall immediately send manufacturer a written notice of the defective parts or workmanship, which written notice must in all cases be received prior to expiry of the guarantee.
- Page 3 Contents 1. PURPOSE................... 4 2. STANDARDS..................4 3. TECHNICAL SPECIFICATIONS ............4 4. INSTALLATION.................. 5 5. CONNECTION SCHEME..............7 6. TROUBLESHOOTING................ 8 - 3 -...
- Page 4 1. PURPOSE Provides regulated 12V/7Ah battery accumulated backup power supply to security systems. 2. STANDARDS The product complies with the essential requirements of the following Directives: 89/336/EEC for EMC 73/23/EEC for LV and observes the following standards: EN 50131-6 EN 55022 class B EN 50130-4: 1998 EN 60950: 1999-2000 (3 revision)
- Page 5 4. INSTALLATION Select a mounting location away from heat and Undo the two screws (1). Turn off the LED prior humidity. Cut out the profile board (1). Drill to removing the cover (2). through the marked places (2). Mount the box on the middle screw, placed in advance (1) and do the remaining four screws (2). - 5 -...
- Page 6 Adjust the tamper (1). Connect the mains cable, according to the sticker (2). Mount additional modules and devices (3). Connect the output voltage to the devices and modules (5). Connect the tamper to the device input, e.g. expander (8). The information outputs may also be used – “+I” for mains supply availability and “+F “...
- Page 7 5. CONNECTION SCHEME. - 7 -...
- Page 8 6. TROUBLESHOOTING. Problem Cause and Remedy The LED does 1. Blown fuse. Before changing fuse find out the possible cause! If the not display green, new fuse also blows out, the device must be dismantled and taken to the despite mains power producer’s service station to be repaired.
