Summary of Contents for CartTek GRX-965Li

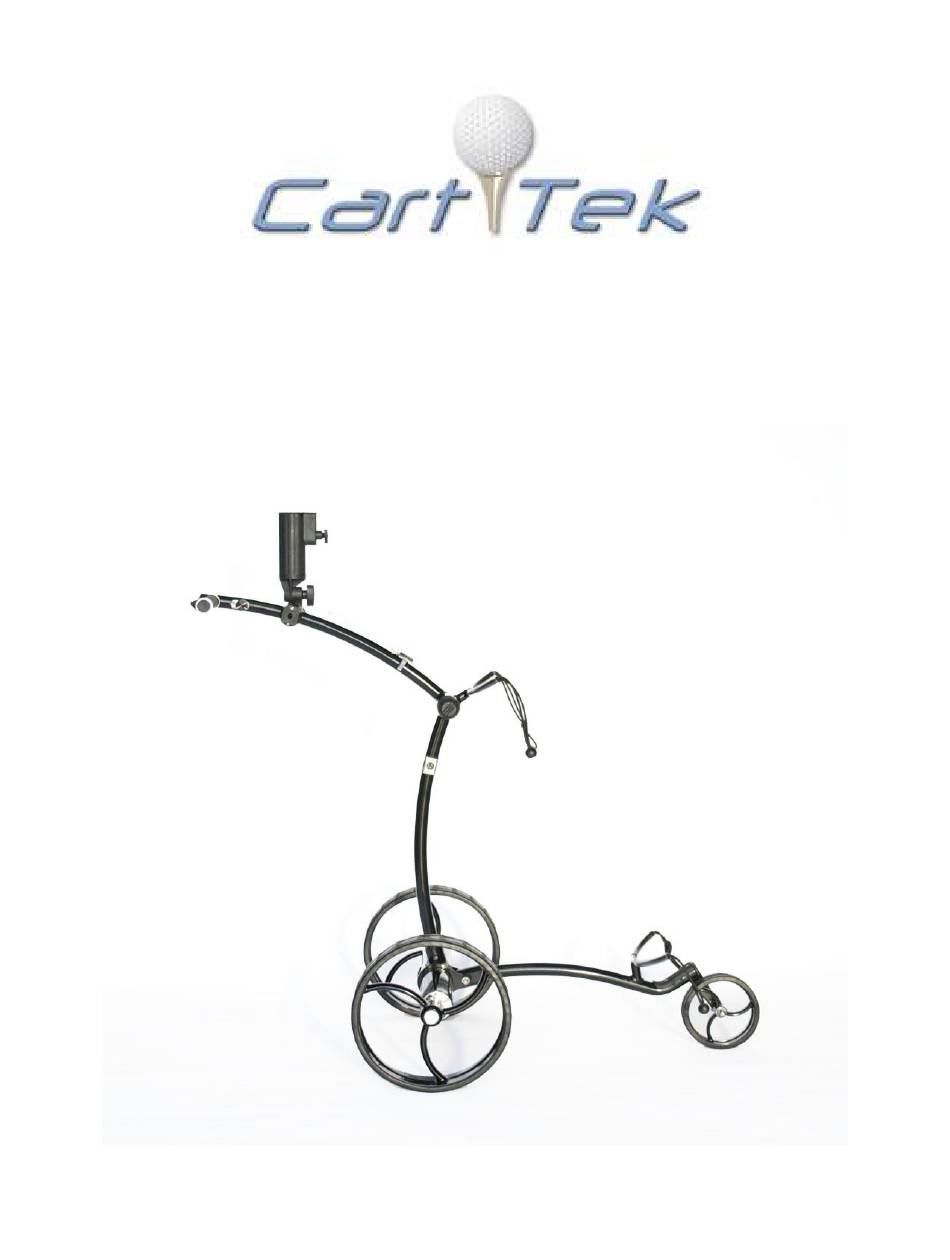

- Page 1 User Manual GRX-965Li / GRI-975Li GRi-975Li Shown Page 1 of 13...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION BASIC SET-UP TURNING ON YOUR GRX-965LI / GRI-975LI FREE WHEEL MODE PRECAUTIONS BATTERY MAINTENANCE ALIGNMENT SYSTEM FOR WARRANTY, SPARE PARTS AND ACCESSORIES: Page 2 of 13... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Cart Tek GRX-965Li or GRI-975Li golf trolley. Your Cart Tek trolley cart was thoroughly quality control checked and road tested before being shipped to your address. We do everything possible to assure that your trolley is in perfect working order upon arrival. -
Page 4: Basic Set-Up
QUICK TIP After unpacking the trolley and while reading this manual, place the battery on charge while you assemble the unit. Plug battery into charger and charger into power source. The battery may be delivered with a charge but you should verify a full charge before using the trolley for the first time. - Page 5 • Install front wheel. Review the following drawing and install the front wheel. • Lift lower handle. equally “side to side”. Secure golf bag with bungees. • Load golf bag onto trolley. Balance weight of golf bag “open” position. It is important that both top and bottom •...
-
Page 6: Turning On Your Grx-965Li / Gri-975Li
TURNING ON YOUR GRX-965LI / GRI-975LI Turn speed knob back counter clockwise to the stopped position. Plug battery cable into the electrical port on trolley handle. -
Page 7: Free Wheel Mode
To engage the “parking brake” stop caddy with on/off button. As a precaution always turn trolley across hill if parking on a hill. To disengage parking brake, turn speed dial to zero (carts with AMB must press the on/off button with speed @ zero) LED Designations Standard With AMB... -
Page 8: Battery Maintenance
much weight on the right side will cause trolley to veer to the left. steep inclines your trolley’s front wheel comes off of the 3) The front wheel should stay grounded during play. If on ground, maneuver front wheel down with handle. 4) If you are having issues keeping the front wheel down on the ground, increase the weight over the front wheel. - Page 9 being ready for play the first time. Normal charge time is 3-4 hours after a full round of golf. ✓ Always ensure battery is connected to charger when connecting AND disconnecting charger from power source. ✓ Your battery charger should not be left plugged into the power source when not in use.
-
Page 10: Alignment System
✓ At the plug end of the battery cable check to see that the cable has not become loose or "unscrewed" from the plug. Tighten compression ring if needed. ✓ Take precautions and be careful to not drop the battery. The battery casing could crack and the subsequent battery life will be severely compromised. - Page 11 17 mm CAP NUT When standing in the front of the trolley looking at the front wheel, loosen the 17 mm nut on the right side of the front wheel. Depending on how the trolley is tracking, will determine which way to turn the Allen set screws.
-
Page 12: For Warranty, Spare Parts And Accessories
The Allen Set Screws should be gently turned on both the front and back sides an equal amount. If the Trolley is tracking to the right, (when standing behind the trolley) turn the rear side of the Allen Set screw counter clockwise. - Page 13 Contact Us: 541-633-4308 Cart Tek Golf Carts http://www.carttek.com 150 SE Logsden St. Bend, OR 97702 email: sales@carttek.com Page 13 of 13...
