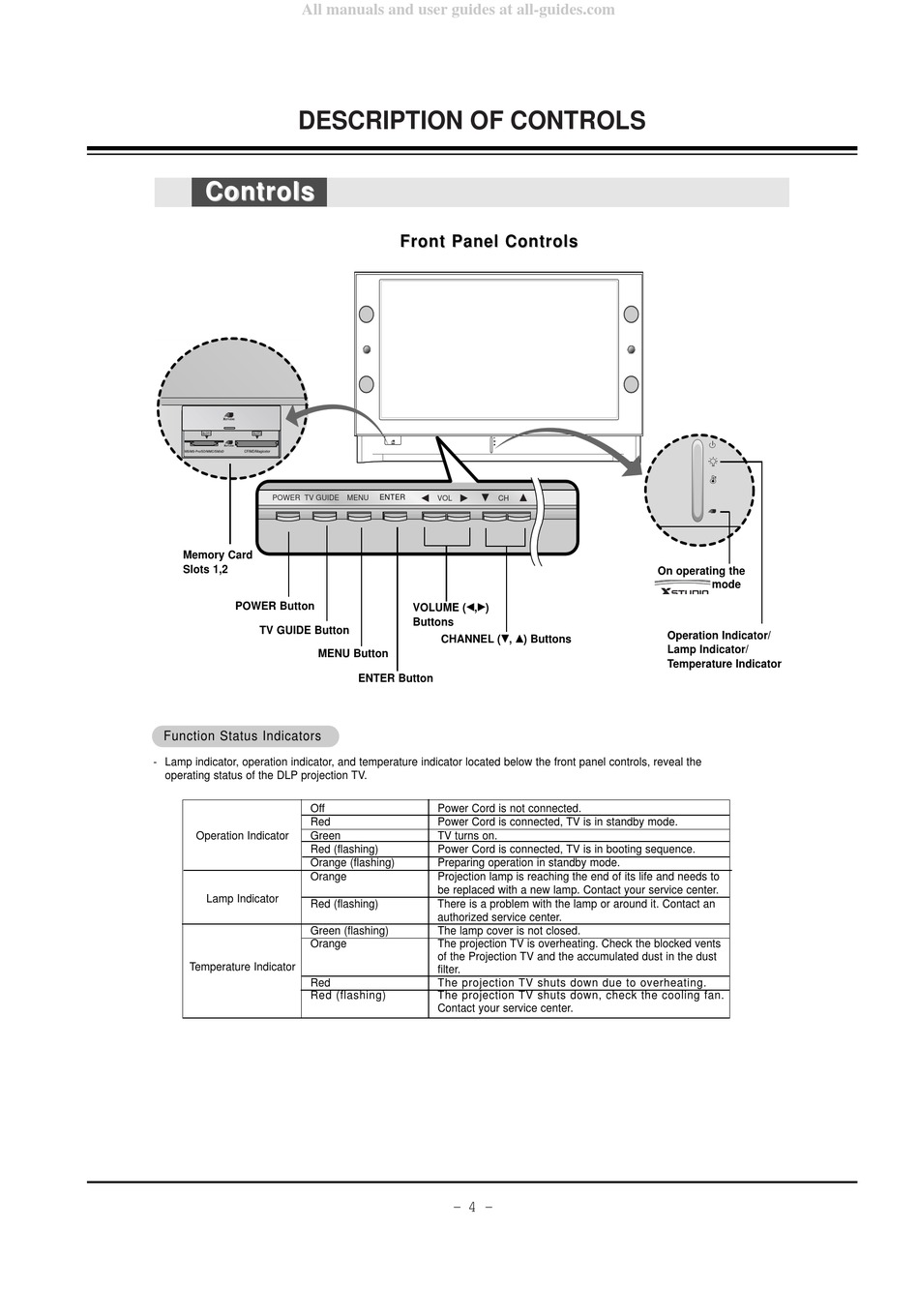

DESCRIPTION OF CONTROLS

Controls
Controls
POWER TV GUIDE
Memory Card
Slots 1,2
POWER Button
TV GUIDE Button
MENU Button
Function Status Indicators Function Status Indicators
- Lamp indicator, operation indicator, and temperature indicator located below the front panel controls, reveal the
operating status of the DLP projection TV.
Off
Red
Operation Indicator Green
Red (flashing)
Orange (flashing)
Orange
Lamp Indicator
Red (flashing)
Green (flashing)
Orange
Temperature Indicator
Red
Red (flashing)
Front Panel Controls
Front Panel Controls
ENTER
MENU VOL CH
VOLUME ( F F , G G )
Buttons
CHANNEL ( E E , D D
ENTER Button
Power Cord is not connected.
Power Cord is connected, TV is in standby mode.
TV turns on.
Power Cord is connected, TV is in booting sequence.
Preparing operation in standby mode.
Projection lamp is reaching the end of its life and needs to
be replaced with a new lamp. Contact your service center.
There is a problem with the lamp or around it. Contact an
authorized service center.
The lamp cover is not closed.
The projection TV is overheating. Check the blocked vents
of the Projection TV and the accumulated dust in the dust
filter.
The projection TV shuts down due to overheating.
The projection TV shuts down, check the cooling fan.
Contact your service center.
