Summary of Contents for Maximum Controls MAX WIEGAND

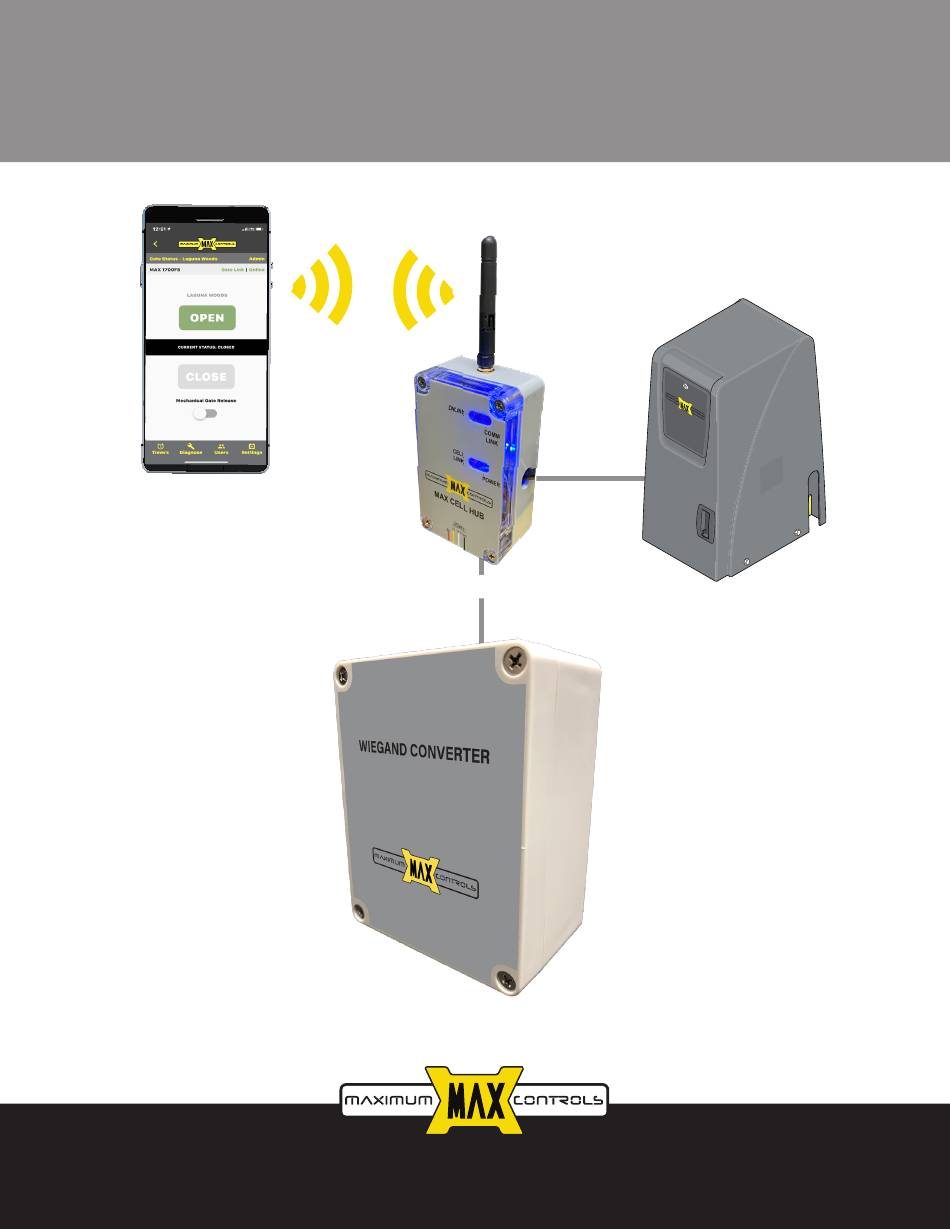

- Page 1 QUICK INSTALLATION GUIDE MAX WIEGAND CONVERTER RESIDENTIAL / COMMERCIAL APPLICATION Max Cloud App Max Cell Hub Max Operator ONLINE COMM LINK CELL LINK POWER Max Wiegand Converter MAX CELL HUB RS485 (-) (+) GND MAX.US.COM 04-29-21 _Rev 3.5 www.max.us.com...
-
Page 2: Table Of Contents
TABLE OF CONTENT www.max.us.com Max Wiegand Converter www.max.us.com Overview Pedestrian Door Application Entry Gate Application Overview Wireless Pedestrian Door Application - wireless Entry Gate Application - wireless Testing and Pairing - wireless Program Wiegand Keycodes with time restrictions... -
Page 3: Max Wiegand Converter
POWER IN: 12 VDC / VAC RELAY PORT RS-485 • Control access point with COMM PORT dedicated relay • To connect to Max Cell Hub Max Wiegand Converter requires a Max Cell Hub. Both work exclusively with Max Gate Operators... -
Page 4: Pedestrian Door Application
Select #0: to open gate via Cell Hub (note: wiegand relay NOT activated) Select #1-9, A-E to trigger local relay on Max Wiegand Converter wiegand converter Select #F: to open gate via Cell Hub (note: wiegand relay is also activated) -
Page 5: Entry Gate Application
Wiring Hub to CELL LINK POWER Wiegand Converter Connect RS-485 port of Max Cell Hub to MAX CELL HUB RS-485 port of Max Wiegand Converter RS485 (-) (+) GND (+) to (+) (-) to (-) GND to GND MAX OPERATOR... -
Page 6: Overview Wireless
RELAY PORT • Control access point with POWER IN: 12 VDC / VAC dedicated relay RS-485 COMM PORT • To connect to Max Cell Hub Wireless Max Wiegand Converter requires a Max Cell Hub. Both work exclusively with Max Gate Operators... - Page 7 MASTER - SLAVE CONNECTION OVERVIEW www.max.us.com Each facility need a unique ACCESS PT # and RF Channel # One master wireless Max Wiegand Converter can communicate with up to 15 slave units www.max.us.com Up to 1 mile range direct line off site...
-
Page 8: Pedestrian Door Application - Wireless
PEDESTRIAN DOOR PEDESTRIAN DOOR APPLICATION www.max.us.com USING WIRELESS MAX WIEGAND CONVERTER Up to 1 mile range www.max.us.com direct line of site SLAVE Wireless Max Select RF Wiegand Converter channel Slide switch to Use same RF MASTER WIRELESS channel as on Slave... -
Page 9: Entry Gate Application - Wireless
ENTRY GATE APPLICATION ENTRY GATE APPLICATION Transponder www.max.us.com USING WIRELESS MAX WIEGAND CONVERTER USING WIRELESS MAX WIEGAND CONVERTER Up to 1 mile range www.max.us.com direct line of site SLAVE Select RF channel Wireless Max Wiegand Converter MASTER Slide switch to... -
Page 10: Testing And Pairing - Wireless
RANGE TESTING AND PAIRING www.max.us.com USING WIRELESS MAX WIEGAND CONVERTERS www.max.us.com Up to 1 mile range direct line off site Select RF channel MASTER Wireless Max Wiegand Converter Turn ON Range Test Switch LED signal lights will start flashing sequentially. - Page 11 RANGE TESTING AND PAIRING www.max.us.com USING WIRELESS MAX WIEGAND CONVERTERS www.max.us.com Turn ON Range Test Switch After few seconds, all three LED's will TURN ON when RF range is ok. If range is poor, (less than 3 LED's on) reposition Master or...
-
Page 12: Program Wiegand Keycodes With Time Restrictions
PROGRAM WIEGAND KEYCODES www.max.us.com WITH RESTRICTIVE TIME ZONES www.max.us.com Press Users icon in the main menu Then Press Add a User in the following menu User Name Enter Name of your user Rose Program Wiegand Keycode Facility Wiegand Keycode 12345 Enter Facility and Wiegand Keycode for the transmitter, keyfob or tag... - Page 13 PROGRAM WIEGAND KEYCODES WITH RESTRICTIVE TIME ZONES www.max.us.com www.max.us.com Assign a timer for wiegand keycode (OPTIONAL) Timer Choose one of six timer schedules If you choose No Timer wiegand Keycode has no time restriction Watch video tutorials from Max Cloud App, just go to the home screen Applying restrictive time period to keycodes improves the security to...
- Page 14 RS485 (-) (+) GND Max Hub can support up to 16 access points using Max Keypads and/or Max Wiegand Converter Units • Wiegand Keycodes with optional time zone restrictions • Keypad Keycodes with optional time zone restrictions • Virtual Transmitters (App Users) with optional time restrictions •...
- Page 15 Max Wiegand Converter SLAVE #1 Max Hub can support up to 16 access points using Max Keypads and/or Wireless Max Wiegand Converter Units • Wiegand Keycodes with optional time zone restrictions • Keypad Keycodes with optional time zone restrictions • Virtual Transmitters (App Users) with optional time restrictions •...
- Page 16 QUICK INSTALLATION GUIDE MAX WIEGAND CONVERTER RESIDENTIAL / COMMERCIAL APPLICATION Max Cloud App Max Cell Hub Max Operator ONLINE COMM LINK CELL LINK POWER Max Wiegand Converter MAX CELL HUB RS485 (-) (+) GND www.max.us.com 10530 Lawson River Ave., Fountain Valley, CA 92708 (949) 699-0220 maxsales.us@gmail.com...
